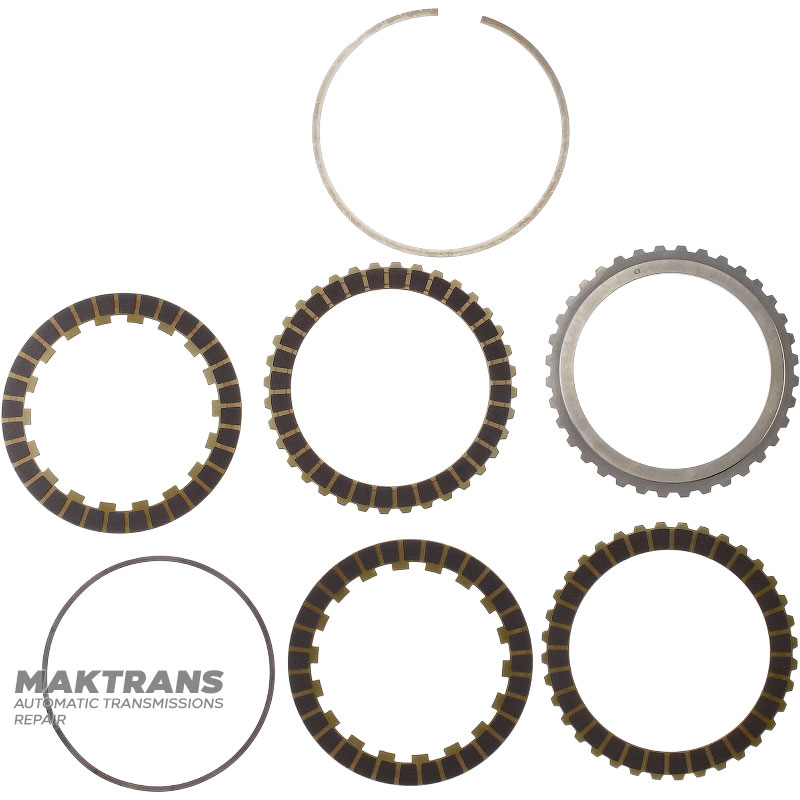

Hyundai / KIA A8MF1 A8LF1 Steel and Friction Disc Set - Removed from New Torque Converter

Support disk:

• Thickness - 3.25 mm (5 mm);
• Number of teeth - 36 pcs.;
• Inner diameter - 129.85 mm;
• Number of discs in the set - 1 pc.;

Friction disc (external teeth):

• Thickness - 2.35 mm;
• Outer diameter - 130.50 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 2 pcs.;

Friction disc (internal teeth):

• Thickness - 2.30 mm;
• Outer diameter - 160.40 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 2 pcs.;

Spring disk, wave-shaped:

• Thickness - 1.15 mm;
• Number of discs in the set - 1 pc.;
• Outer diameter - 153.15 mm;
