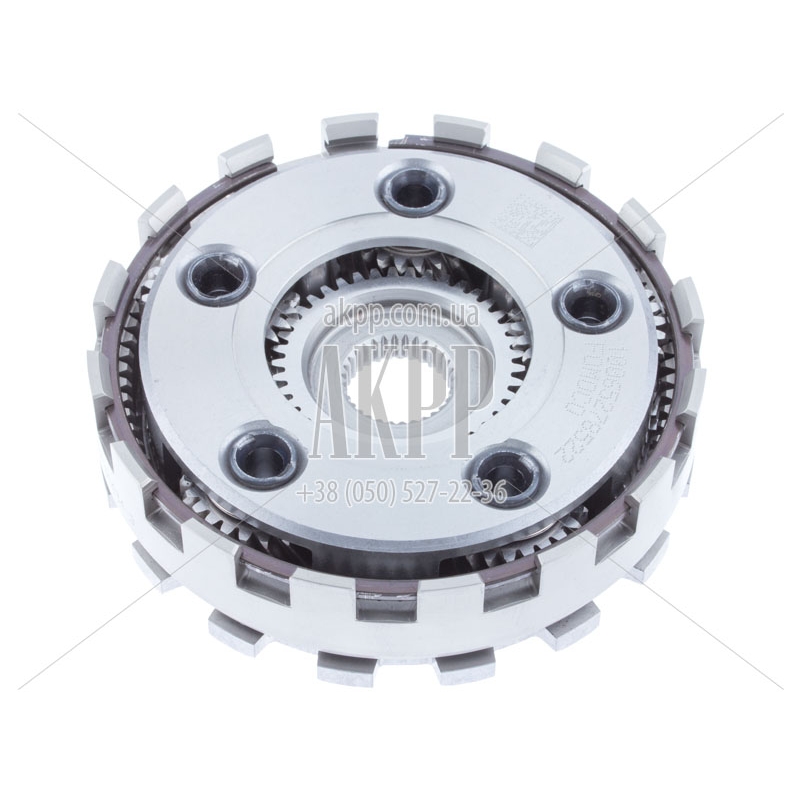

Planetary gear input Ford 6F35 08-up — 9L8Z-7D491-B, 9L8Z-7D491-G, 9L8Z-7A153-A, 9L8Z-7D063-A

Planetary gear:

• Overall height - 35 mm;
• Inner diameter - 56.65 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellites - 24 pcs.;
• Number of teeth on the gear ring - 6 pcs.;
• Outer diameter of gear ring - 130.45 mm;

Ring gear:

• Overall height - 28.35 mm;
• Outer diameter - 130.45 mm;
• Number of teeth - 89 pcs.;
• Number of teeth on the fastening crown - 16 pcs.;

Sun gear:

• Overall height - 19.05 mm;
• Number of teeth - 41 pcs.;
• Number of splines on the inner side - 31 pcs.;
• Gear outer diameter: 55.40 mm;

Tags: 9L8Z-7D491-B, 9L8Z-7D491-G, 9L8Z-7A153-A, 9L8Z-7D063-A, 9L8Z7D491B, 9L8Z7D491G, 9L8Z7A153A, 9L8Z7D063A, 9L8Z 7D491 B, 9L8Z 7D491 G, 9L8Z 7A153 A, 9L8Z 7D063 A
