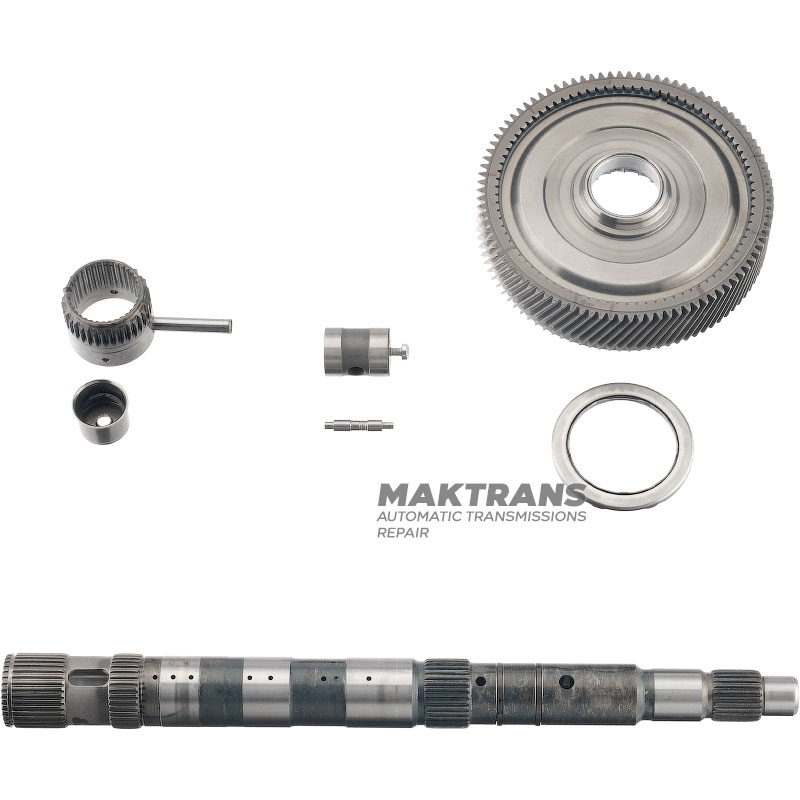

Input Shaft, A Dog Clutch ZF 9HP48, 948TE - Overall Shaft Length 312mm, Ring Gear 86T, Sun Gear 94T (OD 124.85mm)

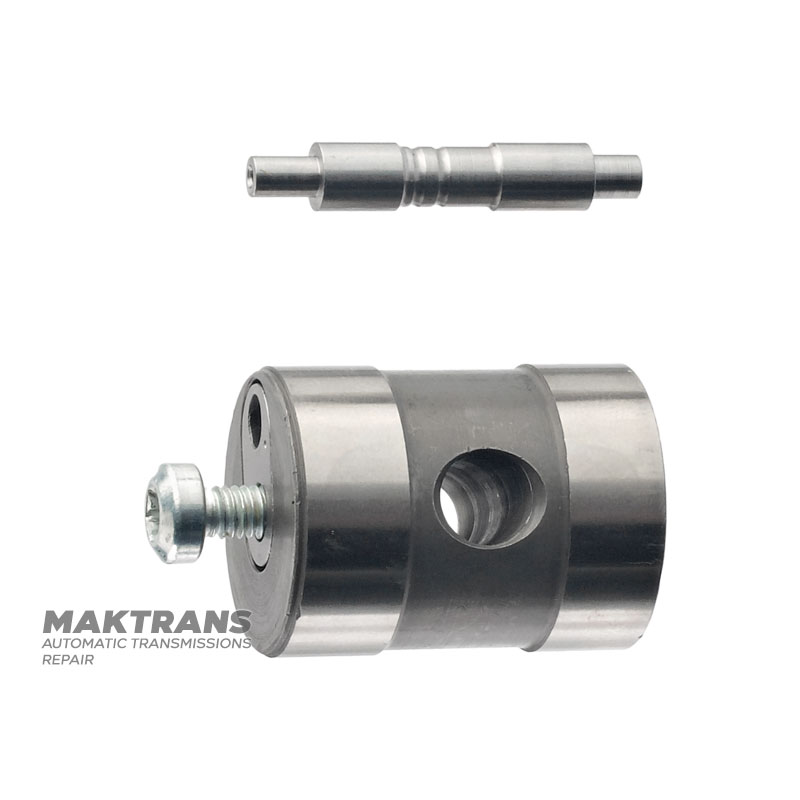

• The A Dog Clutch has been disassembled. The valve shows no signs of wear or damage.
• You receive a shaft with a disassembled A Dog Clutch for your own assessment of its condition.

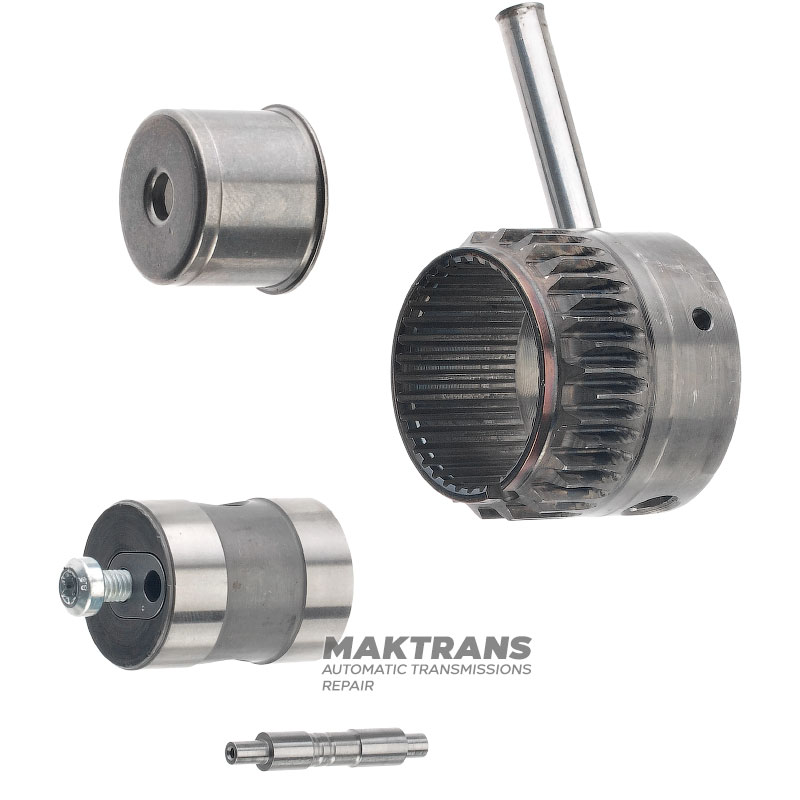

• The A Dog Clutch splined clutch is in perfect condition with no signs of wear.

• Input shaft - 312 mm;

Number of splines on shaft:

• 25 splines - outer Ø 20.70 mm;
• 34 slots - outer Ø 27.70 mm;
• 36 splines (A Dog Clutch splines) - outer Ø 29.85 mm;

Ring/Sun Gear, with A Dog Clutch:

• Total height - 40 mm;
• Inner diameter of the sleeve - 28.45 mm;

Sun gear:

• Number of teeth - 94 pcs.;
• Outer diameter - 124.85 mm;

Ring gear:

• Number of teeth - 86 pcs.;
