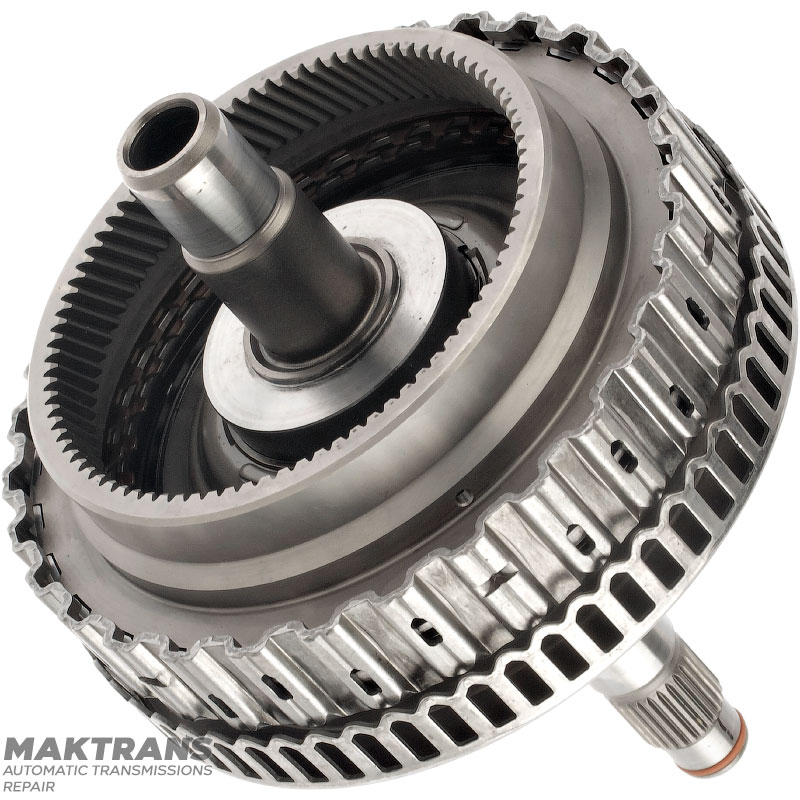

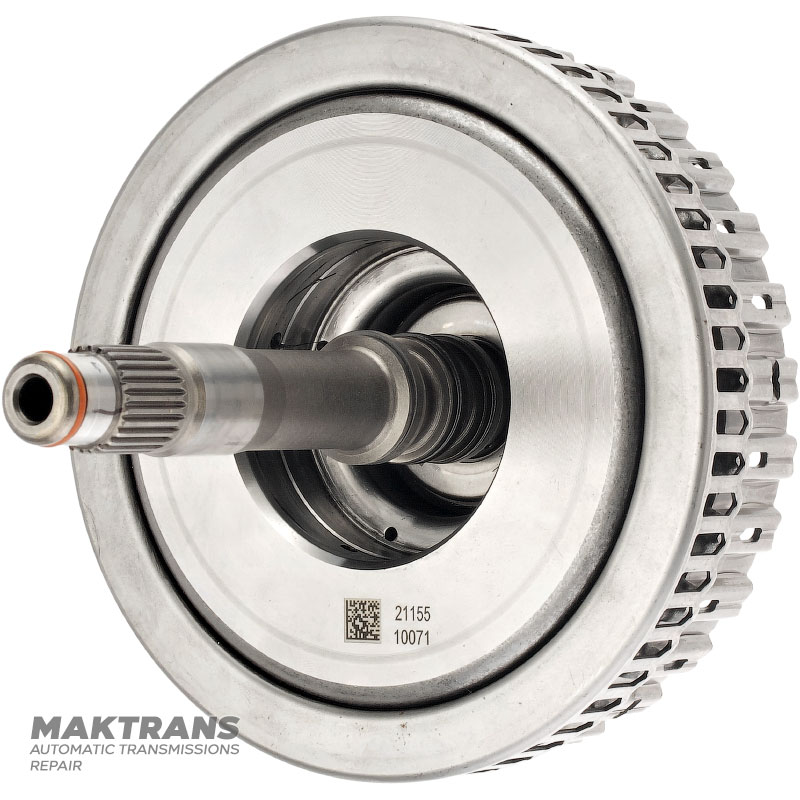

Input shaft and drum FORWARD Clutch GM CVT VT40 (CVT250) - 2 friction discs, ring gear 86 teeth

• Total length - 210 mm;
• Number of splines - 26 pcs.;
• The outer diameter of the splined part is 20.10 mm;

Outer diameter of the working parts of the shaft:

• 16.75 mm;
• 21.60 mm;

The outer diameter of the speed sensor ring is 154.90 mm;
Drum outer diameter - 150.85 mm;

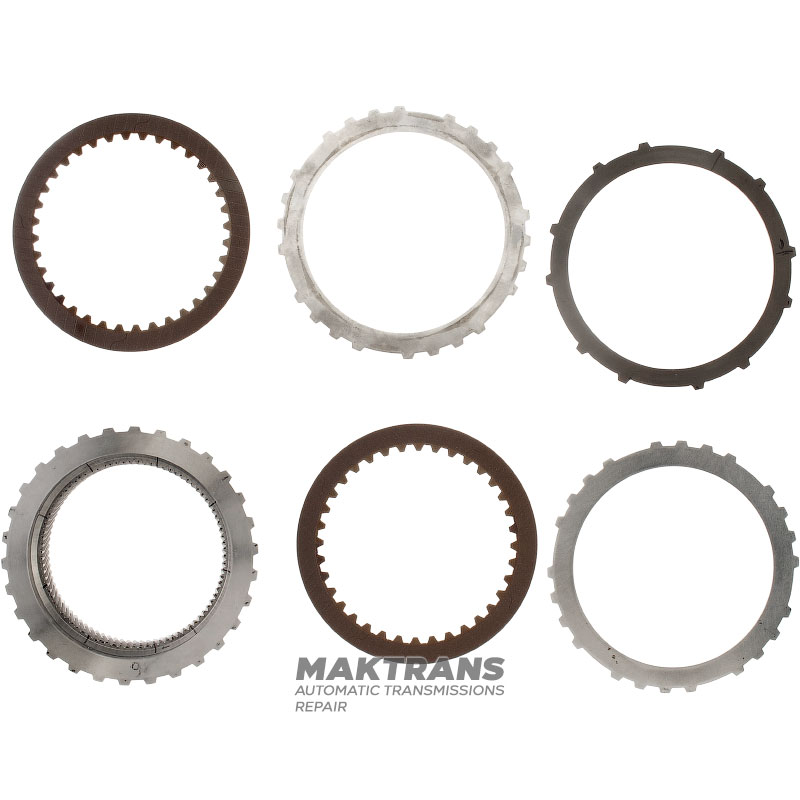

FORWARD Clutch steel and friction disc kit:

• Height (from piston to retaining ring) - 17 mm;
• The total thickness of the set is 12 mm;

Support disk (sun gear):

• Overall disc height - 25.90 mm;
• Disc thickness - 3 mm;
• Number of teeth on the disk - 30 pcs.;
• Number of teeth (helical gear) - 86 pcs.;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 137.90 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 115.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 3.40 mm;
• Inner diameter - 115.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 2.30 mm;
• Inner diameter - 118 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;
