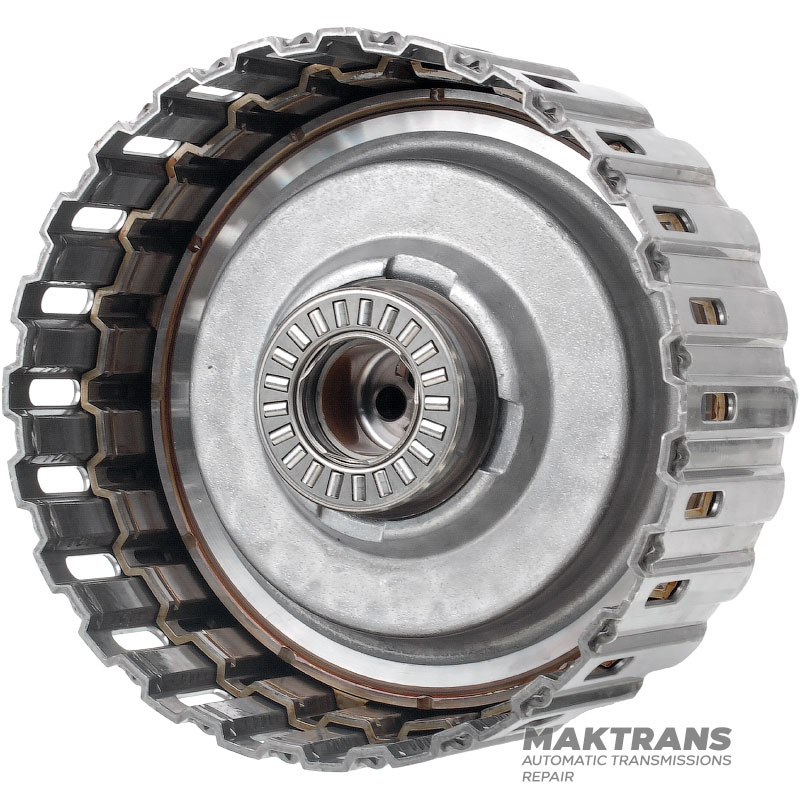

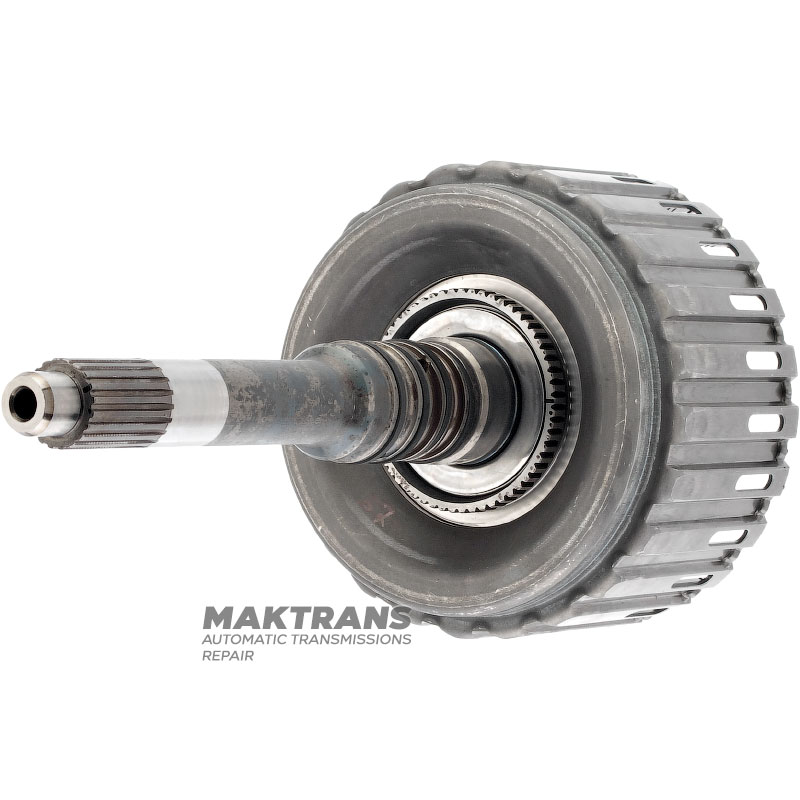

Input shaft, drum C4-C1 Clutch TOYOTA A760 E/F — C4 Clutch — 3 friction discs (total kit thickness 13.70 mm), C1 Clutch — 5 friction discs (total kit thickness 21.70 mm)

• Total height - 255 mm;
• Number of splines on the shaft - 20 pcs.;
• The outer diameter of the splined part is 21.30 mm;
• Outer diameter over Teflon rings - 31.50 mm;
• Number of splines at the base of the shaft - 57 mm / outer Ø 60.75 mm;
• Drum outer diameter - 130.65 mm;

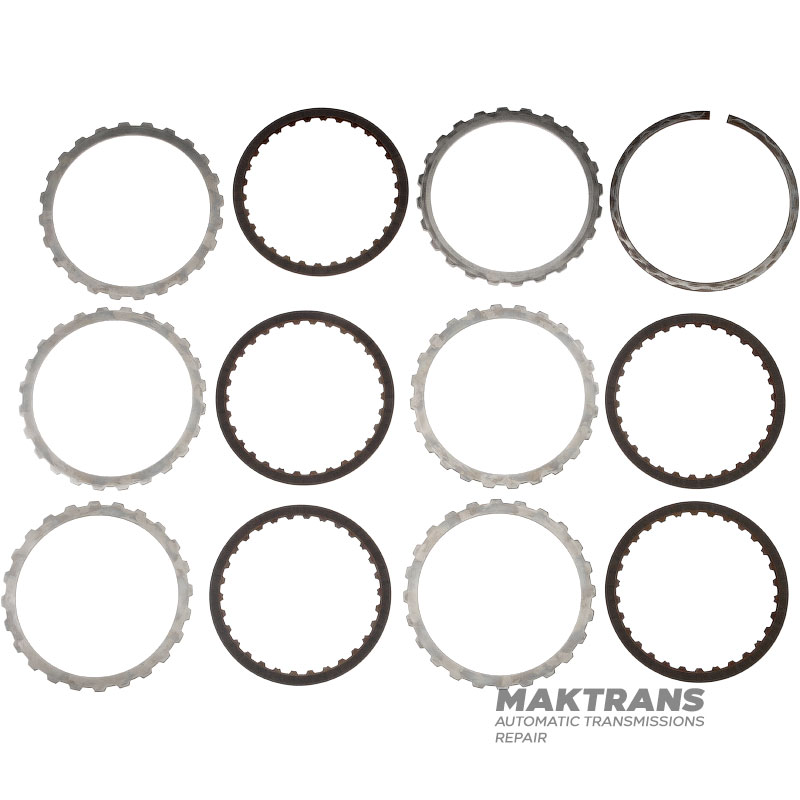

C1 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 21.70 mm;
• Height from piston to retaining ring - 23 mm;

Support disk:

• Thickness - 3.50 mm;
• Inner diameter - 106.05 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 119.30 mm;
• Number of teeth - 30 pcs.;
• Number of teeth in the set - 5 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 106.05 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 5 pcs.;

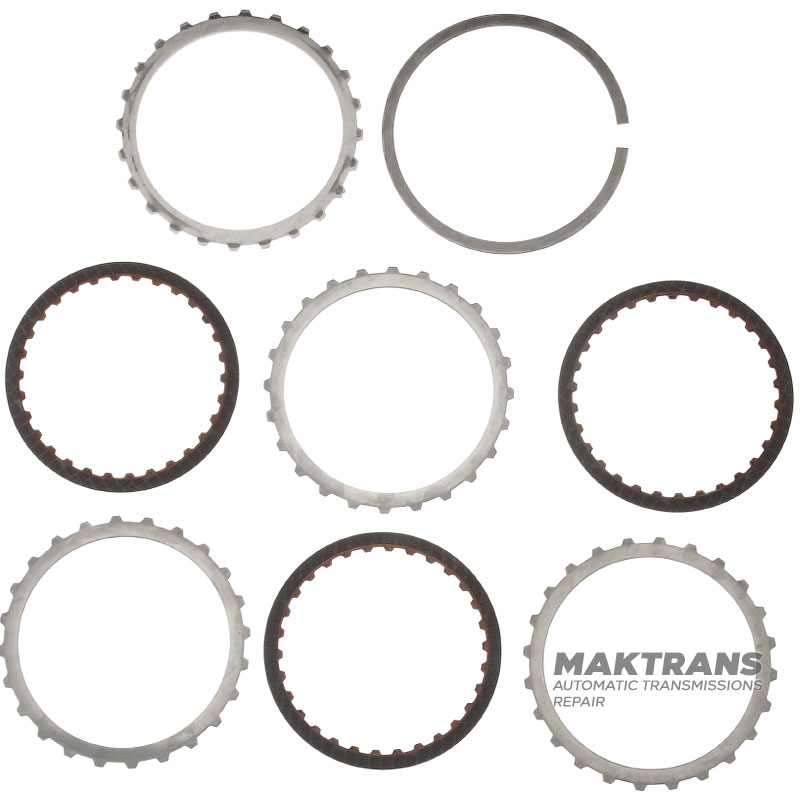

C4 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 13.70 mm;
• Height from piston to retaining ring - 14 mm;

Support disk:

• Thickness - 3.42 mm;
• Inner diameter - 100.75 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.52 mm;
• Outer diameter - 114 mm;
• Number of teeth - 30 pcs.;
• Number of teeth in the set - 3 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 100.60 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;
