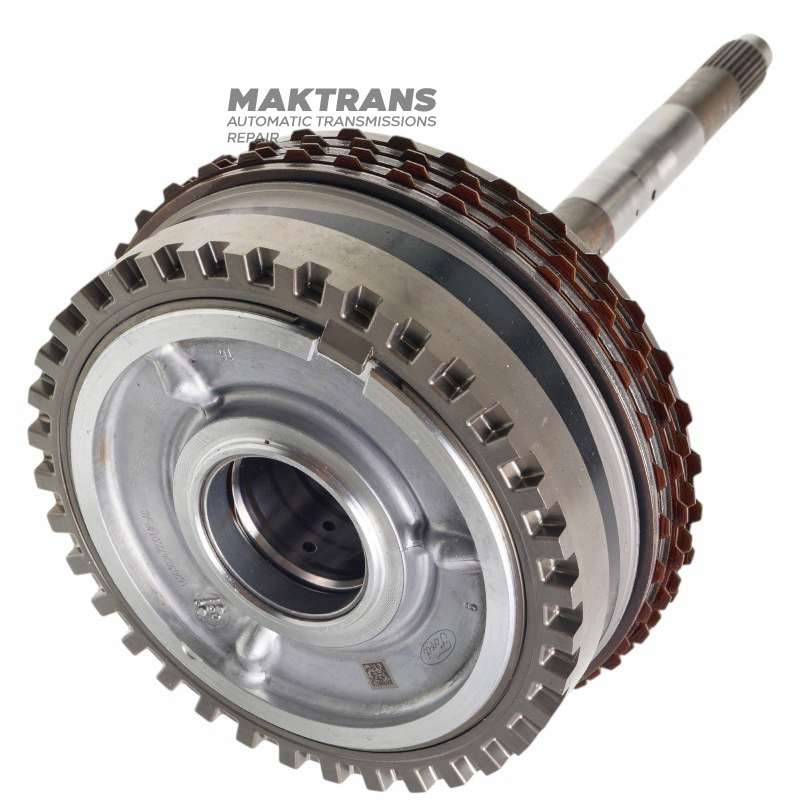

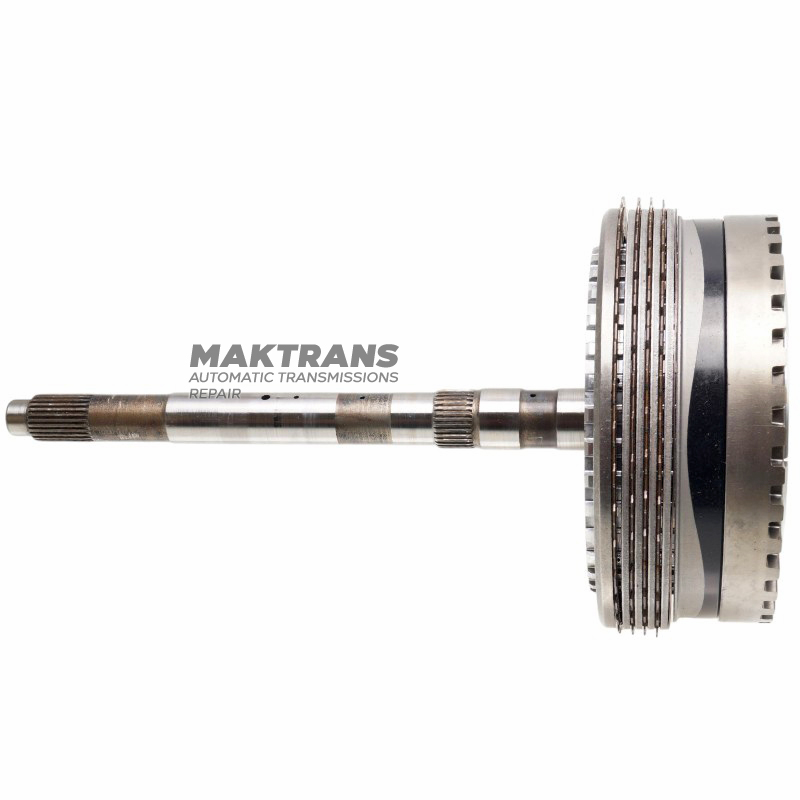

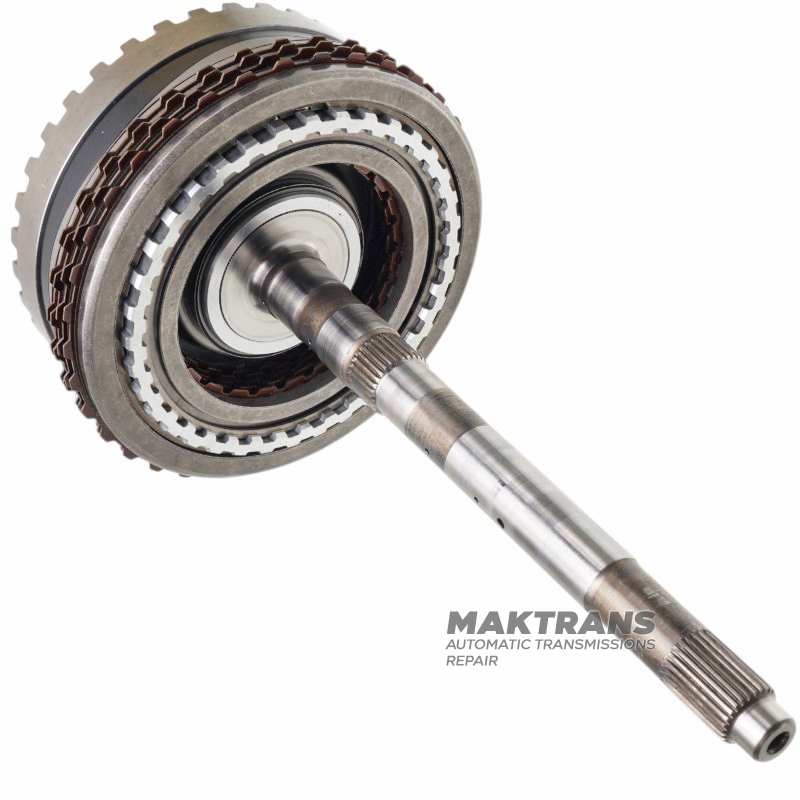

Input shaft, drum 3-5-R / 4-5-6 Clutch FORD 6F50, 6F55 / GM 6T70, 6T75 - complete with discs

• Overall height - 323 mm;
• Outer diameters of the working parts of the shaft - 16.25 mm | 21.95 mm | (x2) 25.30 mm;
• ​Outer diameter of drum 3-5-R - 139.90 mm;
• The outer diameter of the lower part of the drum is 160.40 mm;

Number of splines on shaft:

• 27 pcs [outer diameter - 20.90 mm | spline height - 28 mm];
• 32 pcs [outer diameter - 24.65 mm | spline height - 15 mm];

4-5-6 Clutch Steel and Friction Disc Set:

• Total thickness of the set: 26.65 mm | 24.10 mm;

Support disk:

• Thickness - 6.55 mm | 4 mm;
• Inner diameter - 99.70 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 121 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 1.77 mm;
• Inner diameter - 36 pcs.;
• Number of teeth - 99.90 pcs.;
• Number of discs in the set - 6 pcs.;

3-5-R Clutch Steel and Friction Disc Set:

• The total thickness of the set is 25.20 mm;

Support disk:

• Thickness - 6.55 mm;
• Outer diameter - 167.35 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Inner diameter - 142.80 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2.95 mm;
• Outer diameter - 167.15 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 0.75 mm;
• Outer diameter - 166.95 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;
