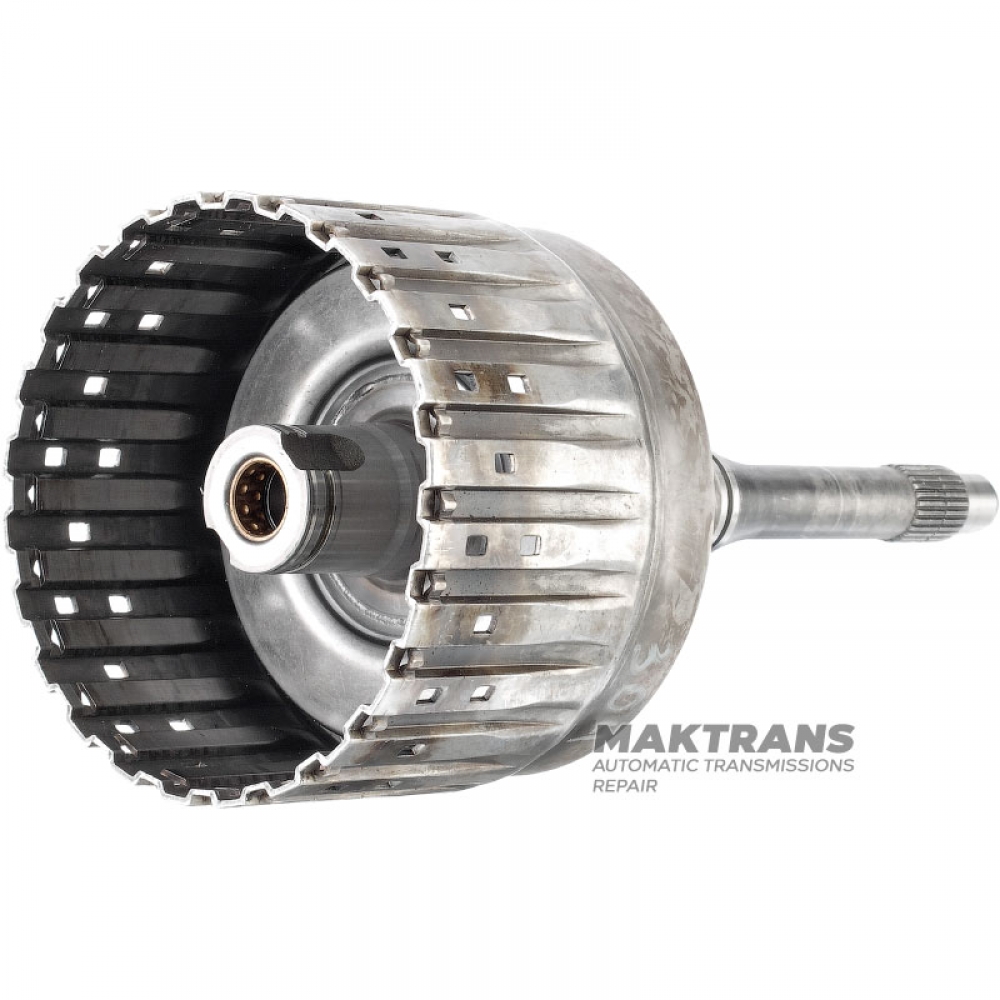

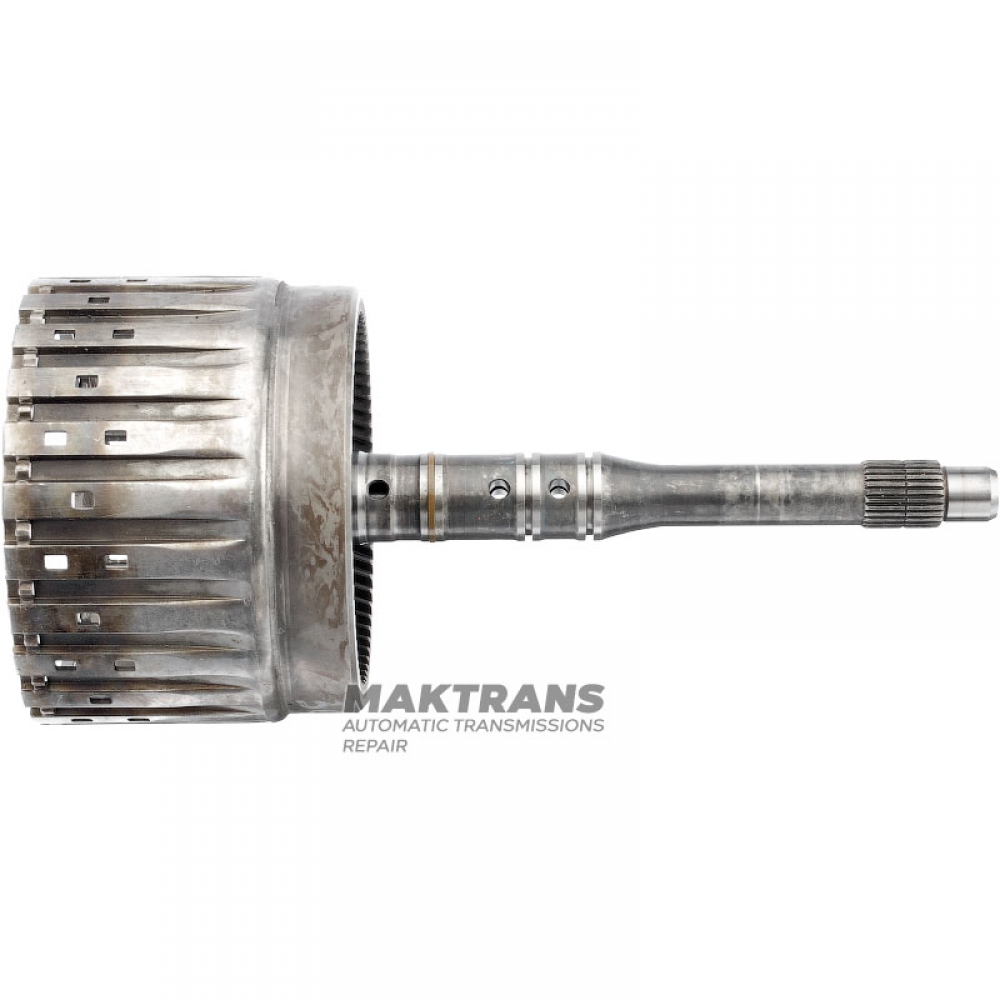

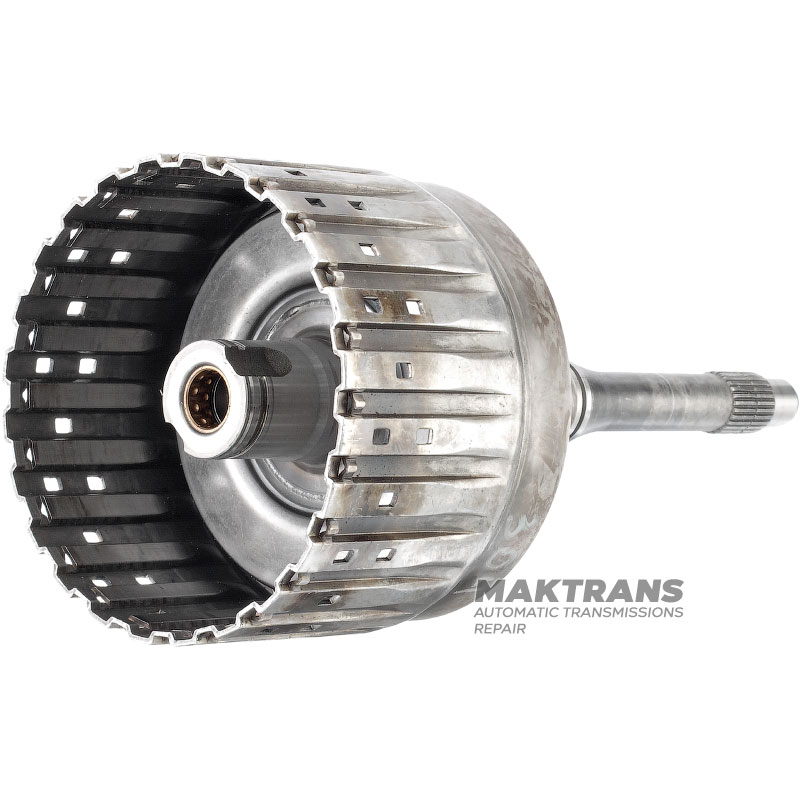

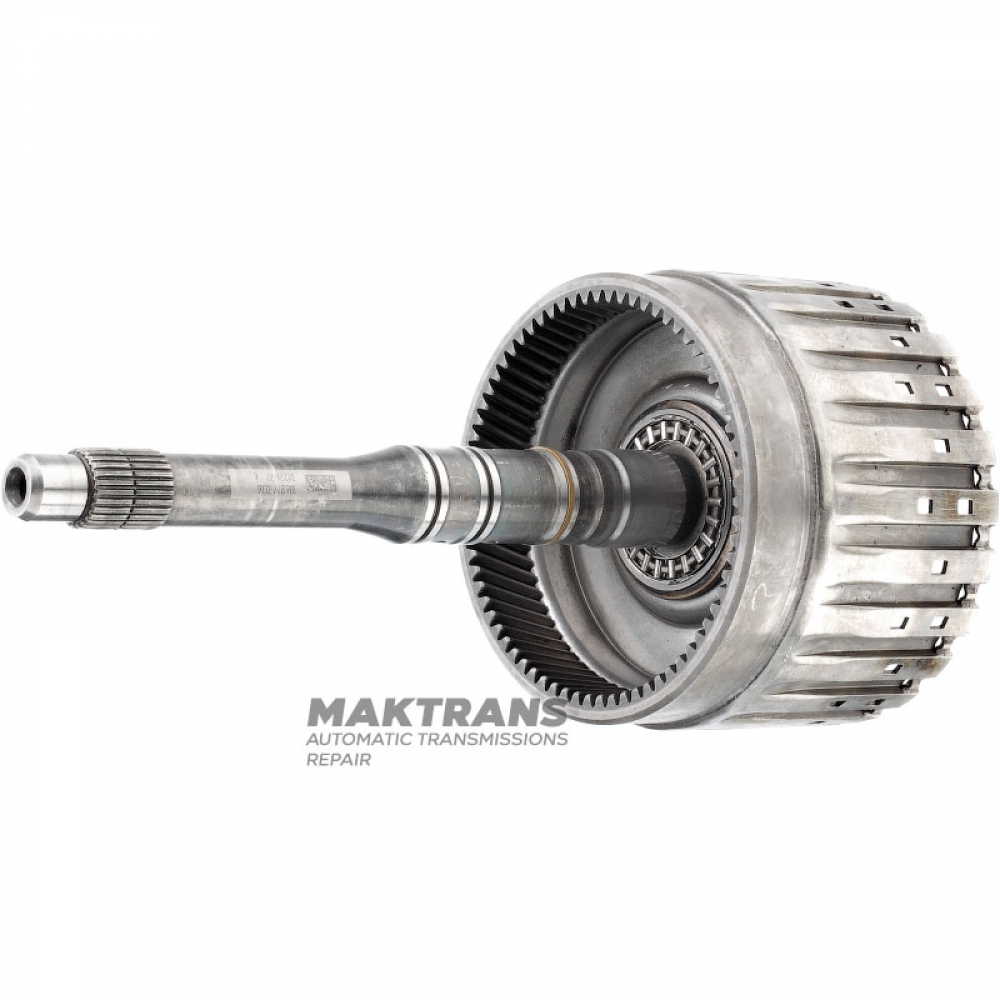

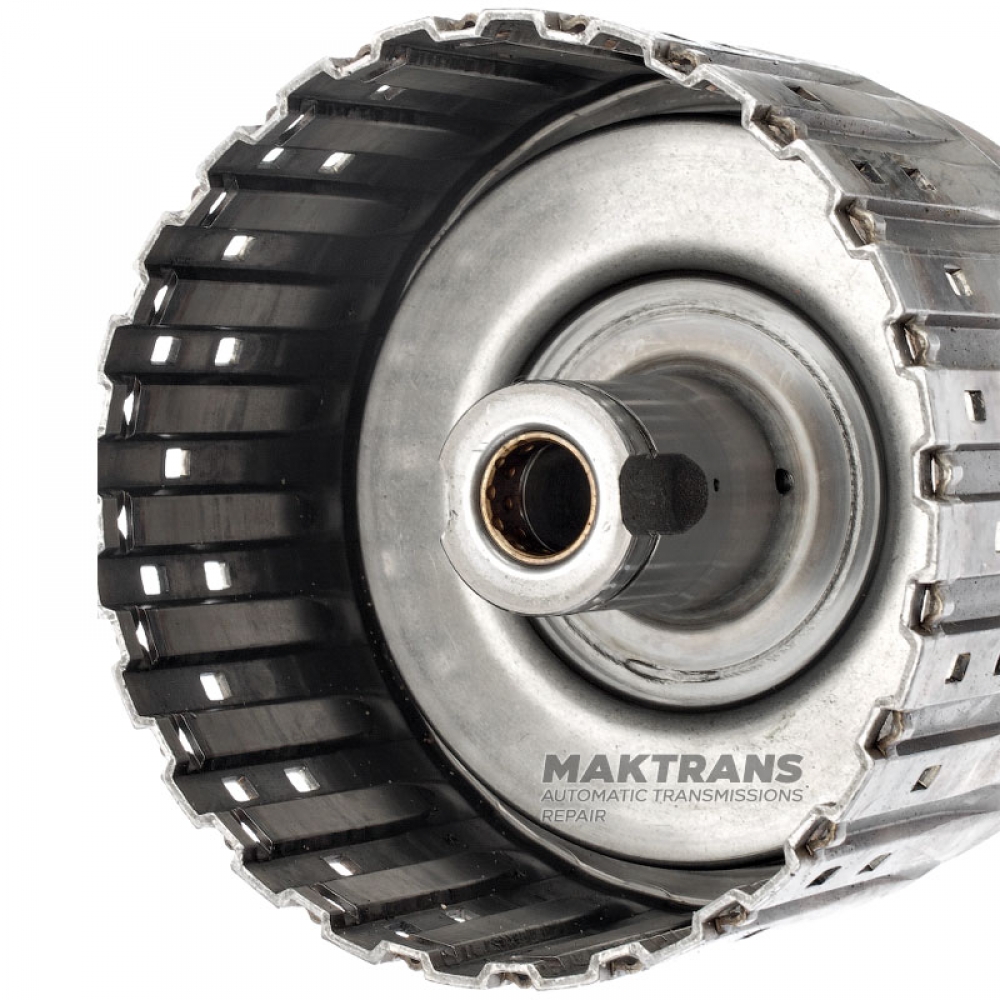

Input shaft / drum E Clutch (empty, without pistons and discs) ZF 6HP26 ZF 6HP28 - (total shaft height 304 mm, 30 mm outer diameter of shaft at the base of the drum)

• Total height - 304 mm.
• The diameter of the working part of the shaft above the spline part is 18 mm.
• The diameter of the working part of the shaft at the base of the drum is 30 mm.
• Shaft height (from the base of the drum) - 244 mm.
• Drum height (including ring gear) - 103 mm.
• The number of splines on the shaft is 27 pcs.
• The diameter of the spline part is 22 mm.

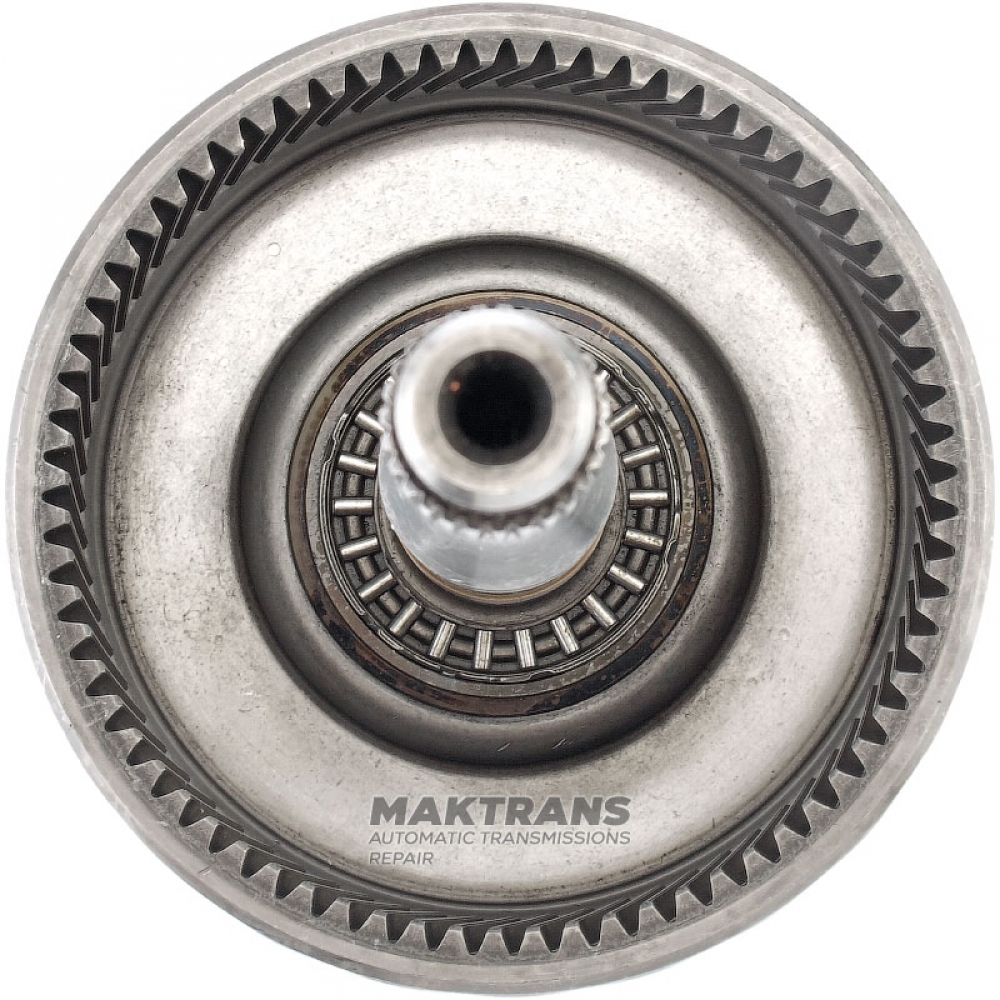

Ring gear:

• Number of teeth - 71 pcs.
• The outer diameter of the ring gear is 136 mm.
• The inner diameter of the ring gear is 117 mm.
• The height of the ring gear (gear part) is 24 mm.
