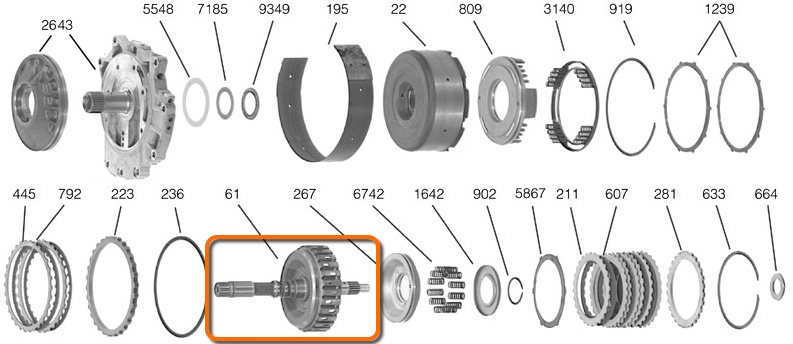

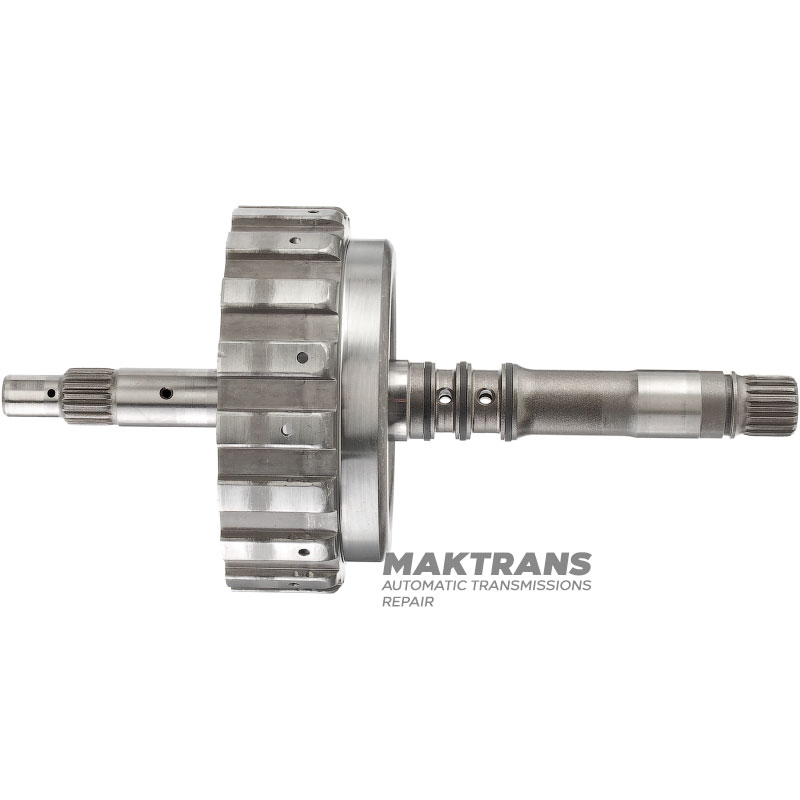

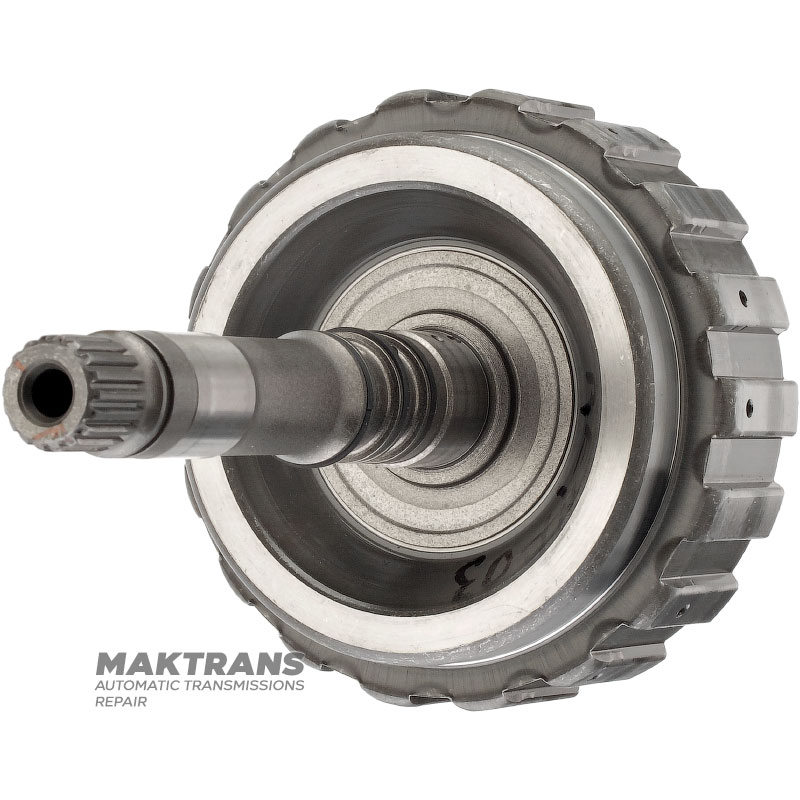

Input shaft / drum HIGH Clutch (empty, without discs) RE4F03A - shaft length 237 mm, 18 splines (ext. Ø 18.50 mm) / 16 splines (ext. Ø 17.70 mm)

• Shaft length - 237 mm;

Front side of the shaft:

• Number of splines - 18 pcs.;
• The outer diameter of the splined part is 18.50 mm;
• Outer diameter of the working parts of the shaft - 20.95 mm | 24.95 mm;
• Number of Teflon rings - 3 pcs.;
• Outer diameter over Teflon rings - 23.30 mm;

Back side of the drum:

• Height from base - 81 mm;
• Number of splines - 16 pcs.;
• The outer diameter of the splined part is 17.70 mm;
• The outer diameter of the working part of the shaft is 13 mm;

Drum outer diameter - 115.95 mm;

Tags: 314103CX0D, 314103CX0B, 314103CX00
