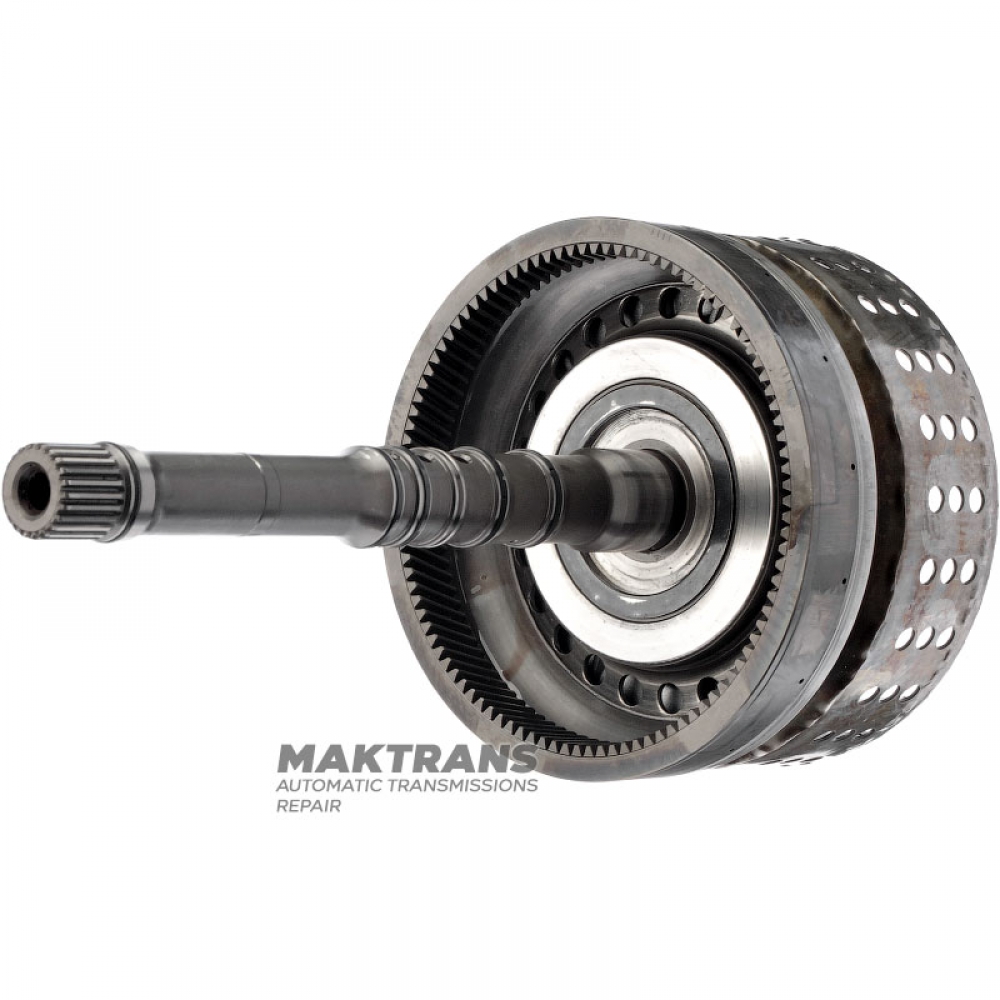

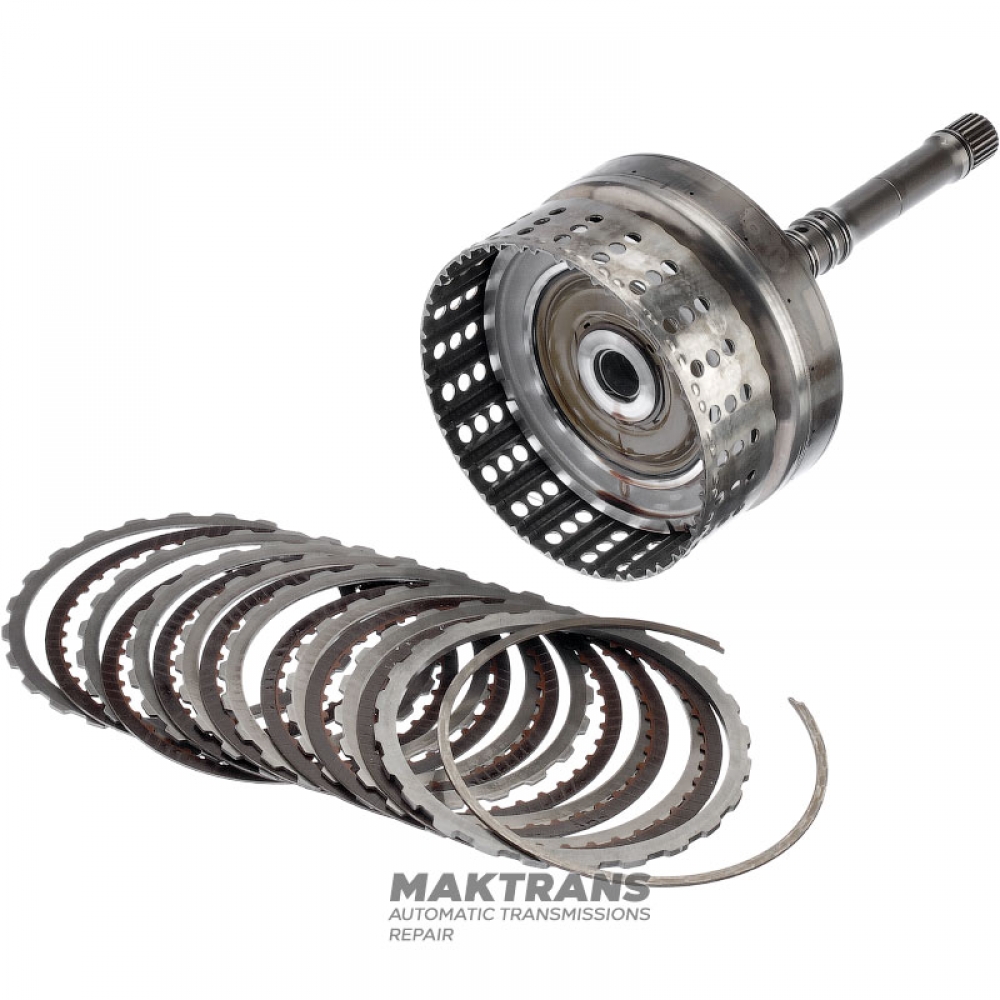

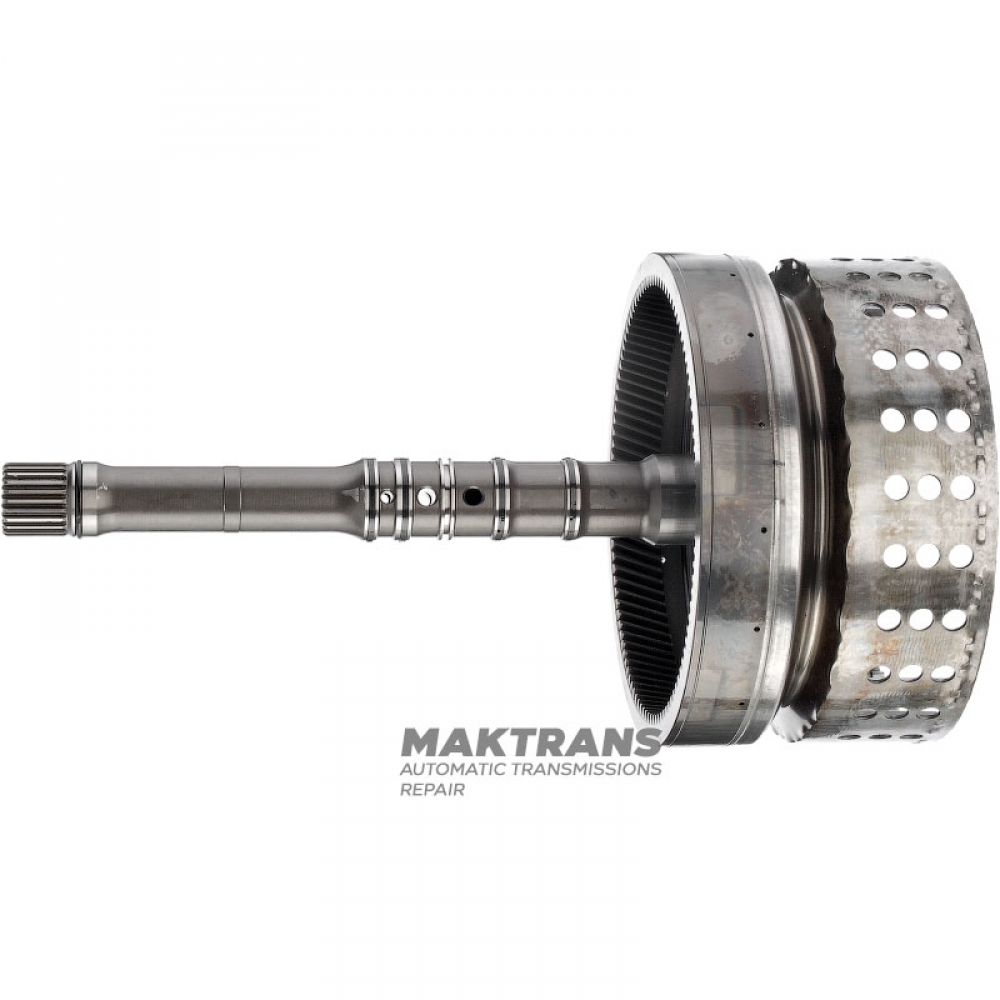

Input shaft / drum K1 Clutch (7 friction discs, 40 teeth per disc) NISSAN RE7R01 315401XJ0C - (overall length 324 mm, shaft length 256 mm, 24 splines (ext.Ø 25.70 mm), 102 teeth on ring gear)

• Overall length - 324 mm;
• Shaft length - 256 mm;
• Number of splines on the shaft - 24 pcs.;
• The length of the splined part of the shaft is 22 mm;
• Outer diameter over Teflon rings - 29.30 mm;
• The diameter of the shaft at the base of the K1 Clutch drum is 32.25 mm;
• Number of teeth on the ring gear - 102 pcs.;
• Gear outer diameter - 173.95 mm;
• Height from piston to retaining ring - 32 mm;

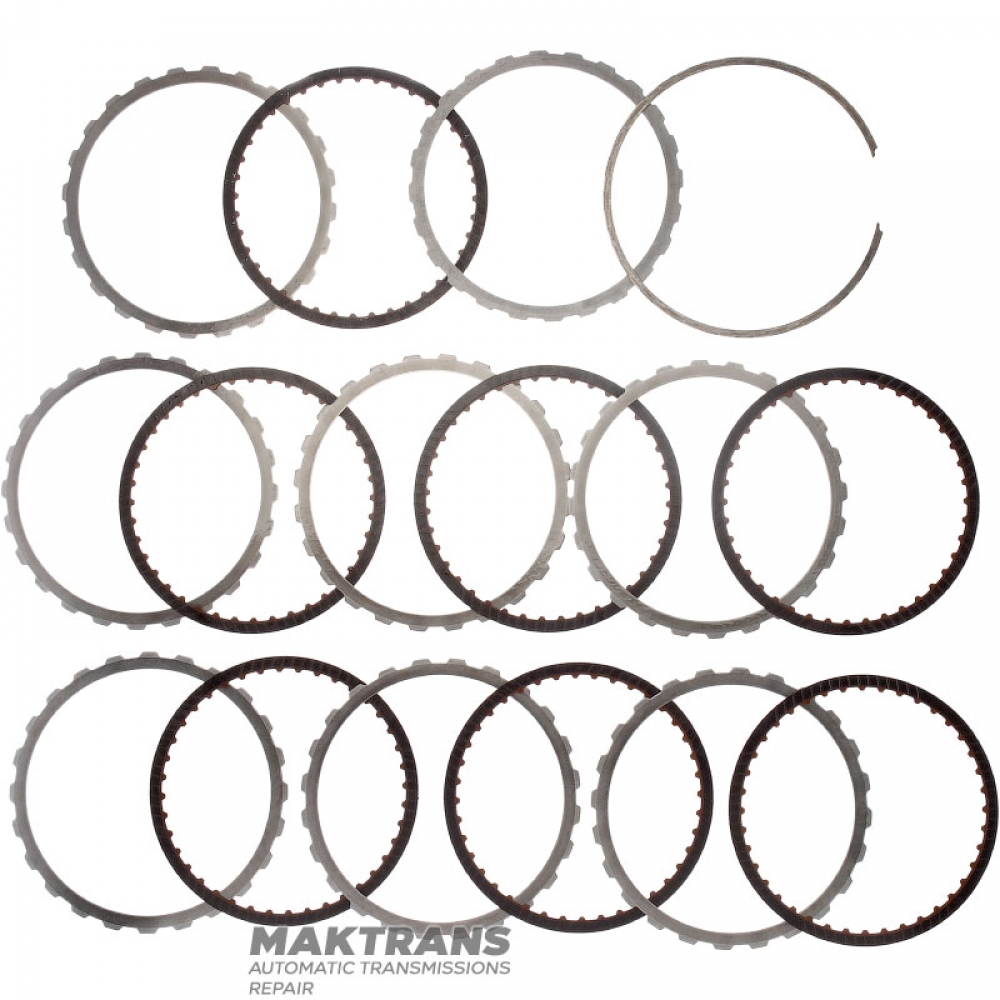

K1 Clutch Steel and Friction Disc Kit:

• Total thickness of the set - 31.30 mm;

Support disk:

• Thickness - 4.20 mm;
• Inner diameter - 146.40 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.85 mm;
• Outer diameter - 161.10 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 7 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 146.40 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 7 pcs.;
