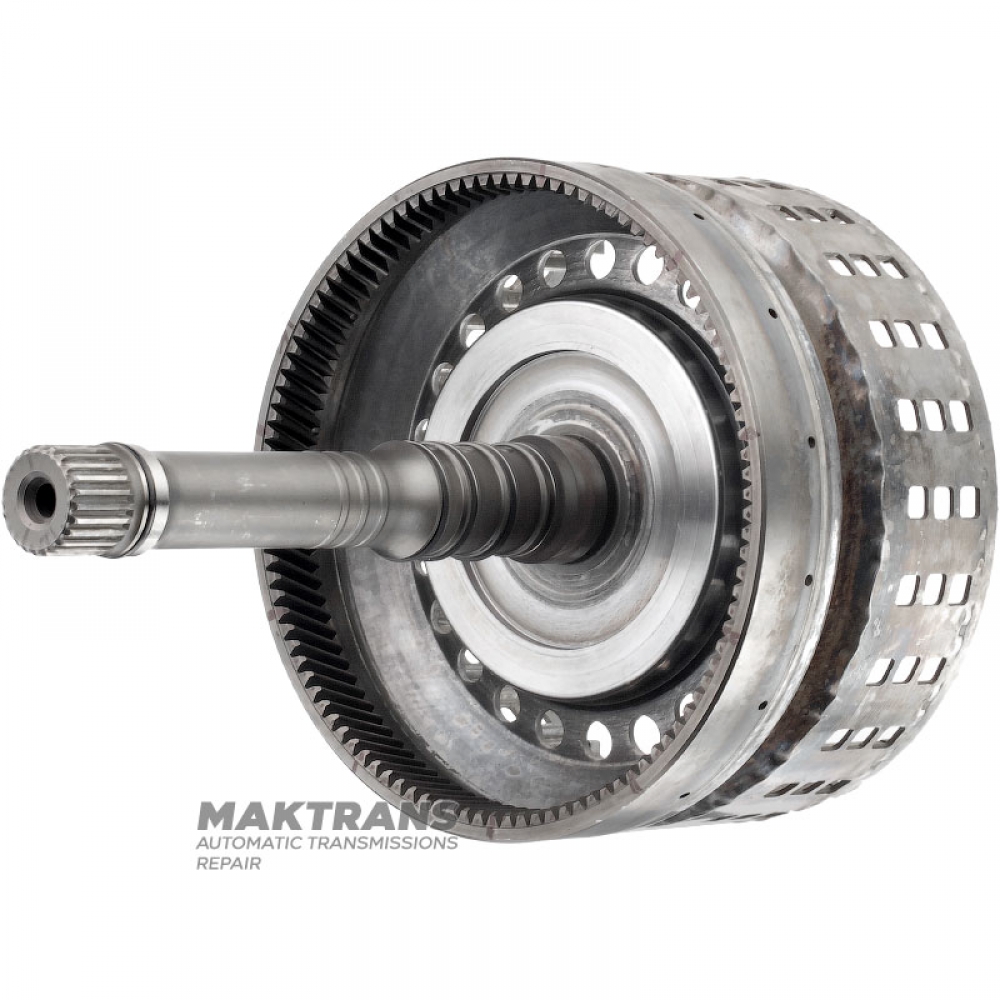

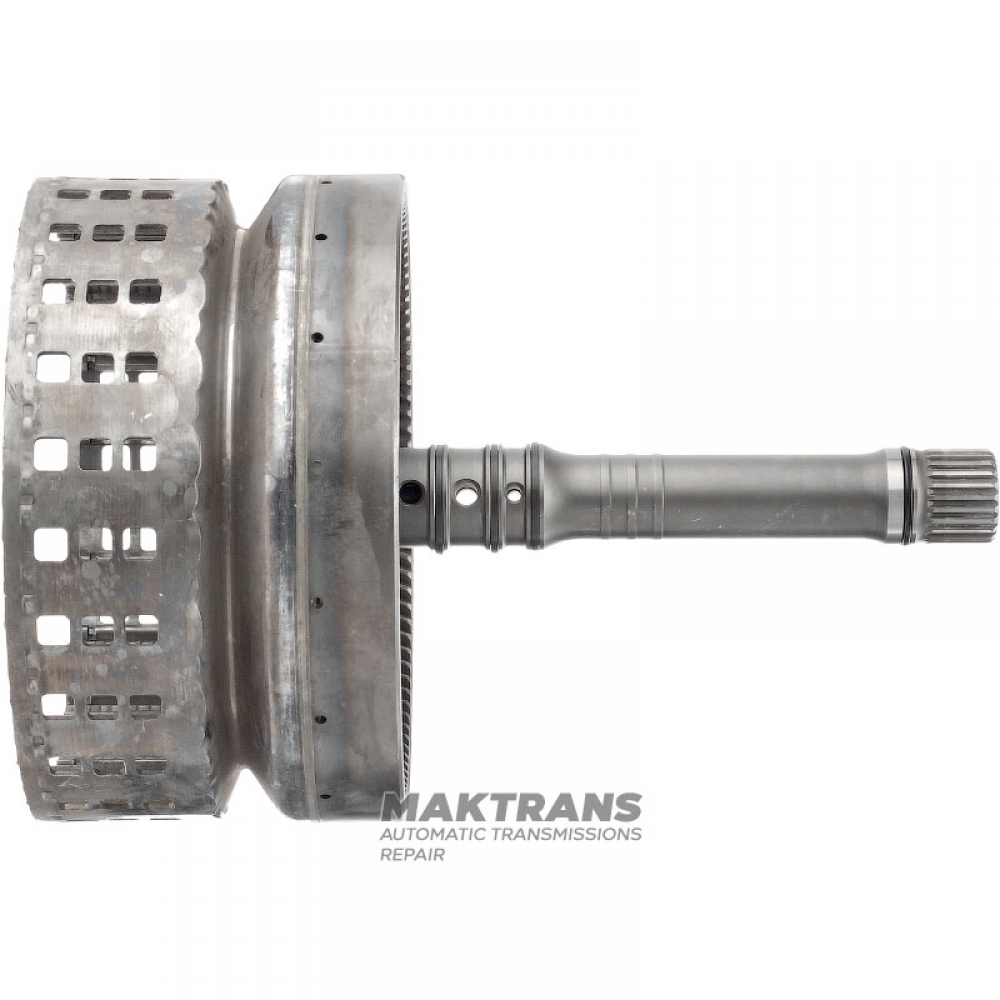

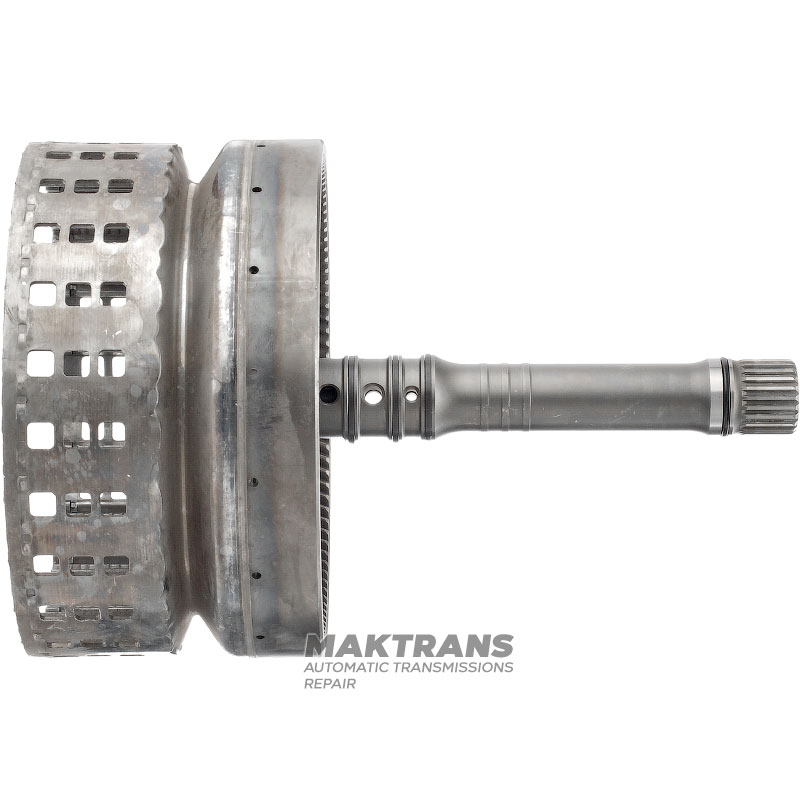

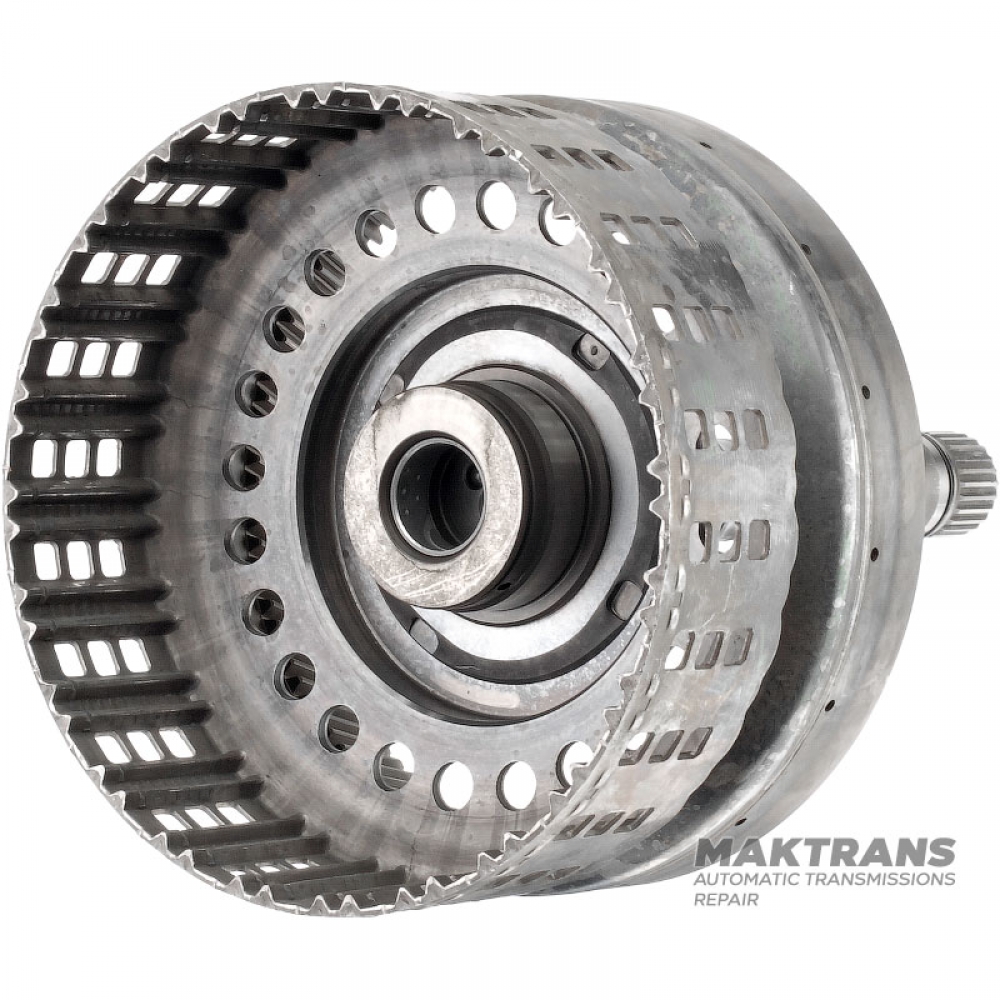

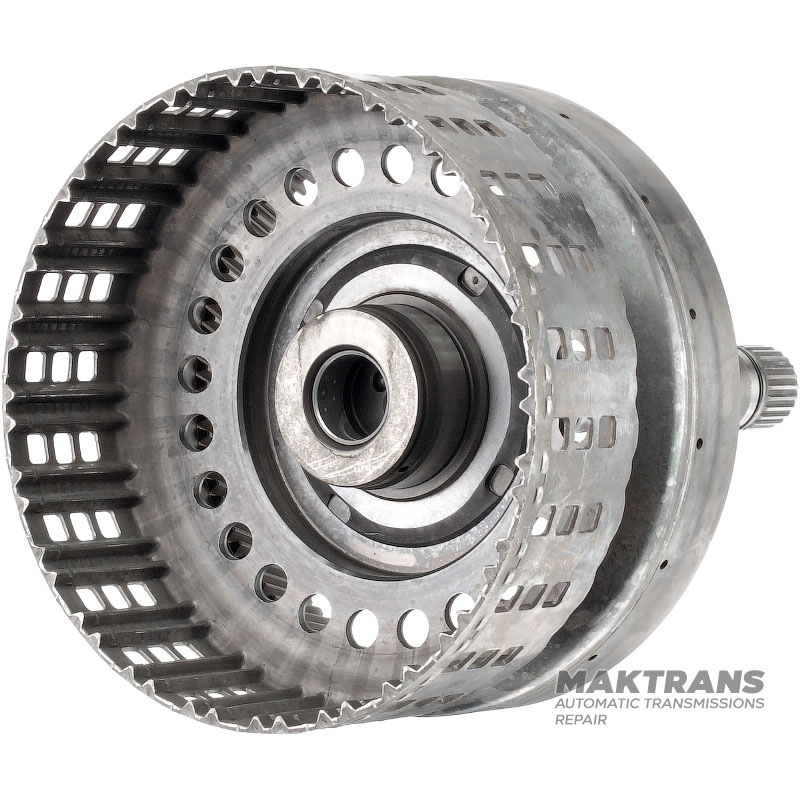

Input shaft / drum K1 Clutch (empty, without discs and pistons) NISSAN RE5R05A - height 256 mm, 24 splines (outer Ø 25.60 mm), 106 mm (outer Ø 174 mm)

• Total height - 256 mm;
• Number of splines on the shaft - 24 pcs.;
• The outer diameter of the spline part is 25.60 mm;
• Outer diameter of Teflon rings - 29.30 mm;
• The outer diameter of the shaft at the base of the drum is 32.80 mm;

Ring gear:

• Number of teeth - 106 pcs.;
• Ring gear outer diameter -

The K1 Clutch drum is empty (without pistons and discs).
