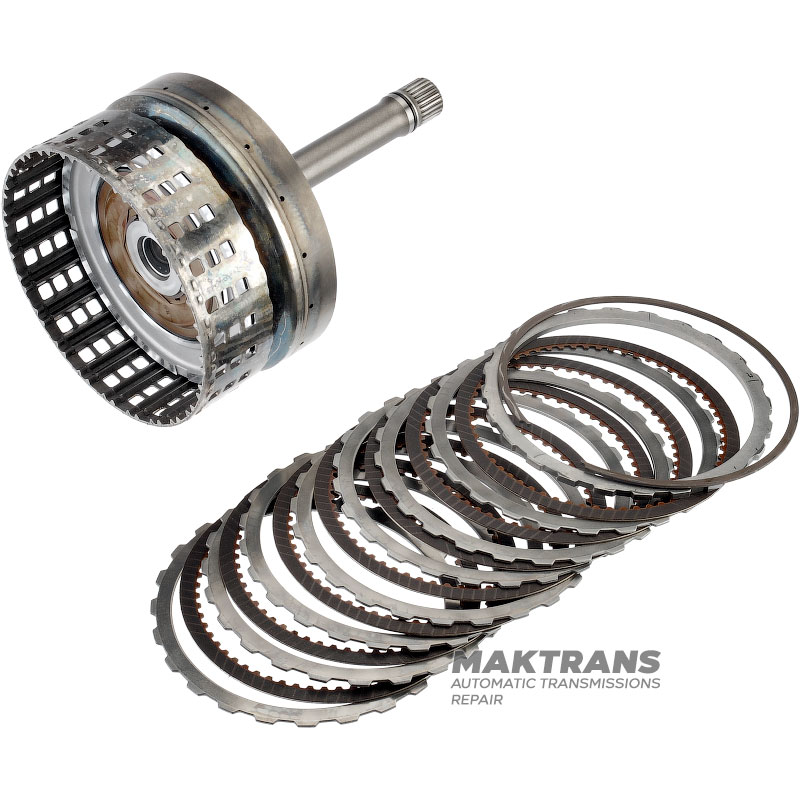

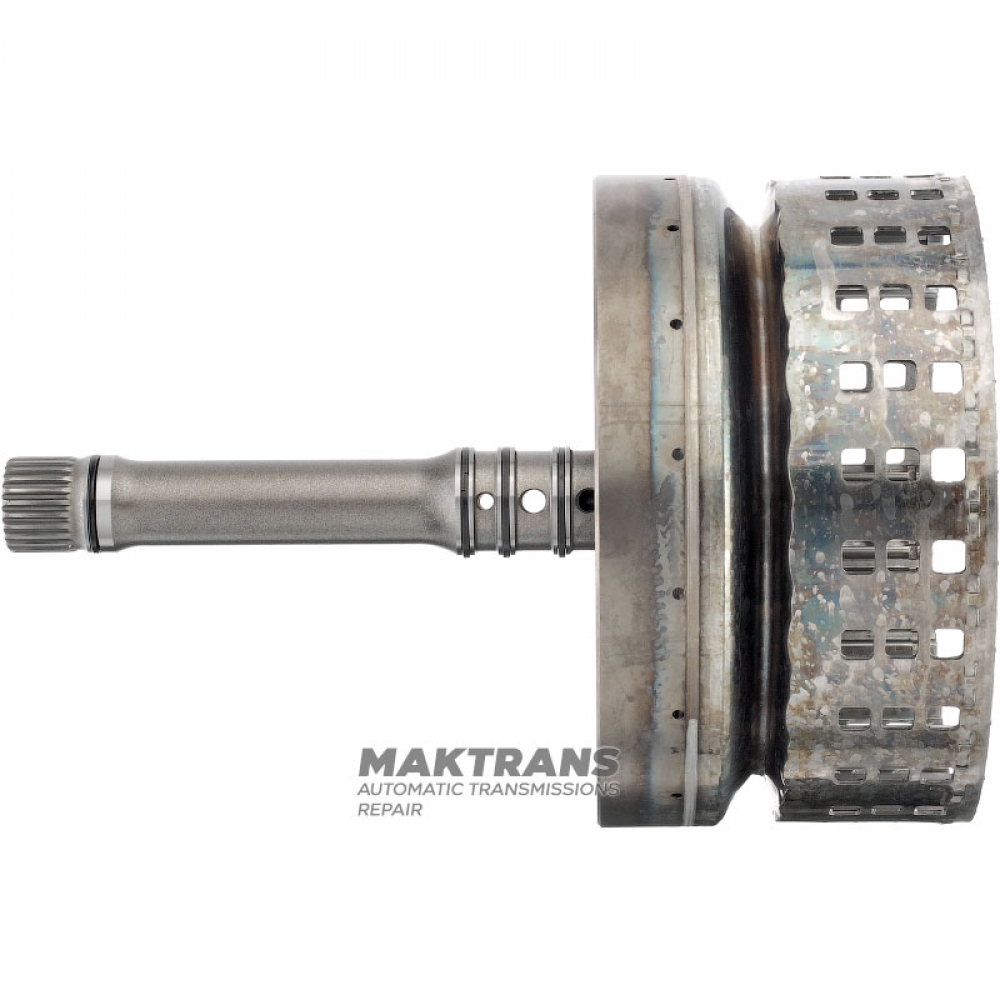

Input shaft / drum K1 Clutch NISSAN RE5R05A / JATCO JR507A 3154095X02 - overall height 256 mm, 106 teeth, 7 friction discs (60 teeth), 24 splines (ext.Ø 25.75 mm, spline length 18 mm)

• Overall height - 256 mm;
• Number of splines - 24 pcs.;
• The outer diameter of the splined part is 25.75 mm;
• Length of the splined part - 18 mm;
• The outer diameter of the shaft at the base is 32.90 mm;

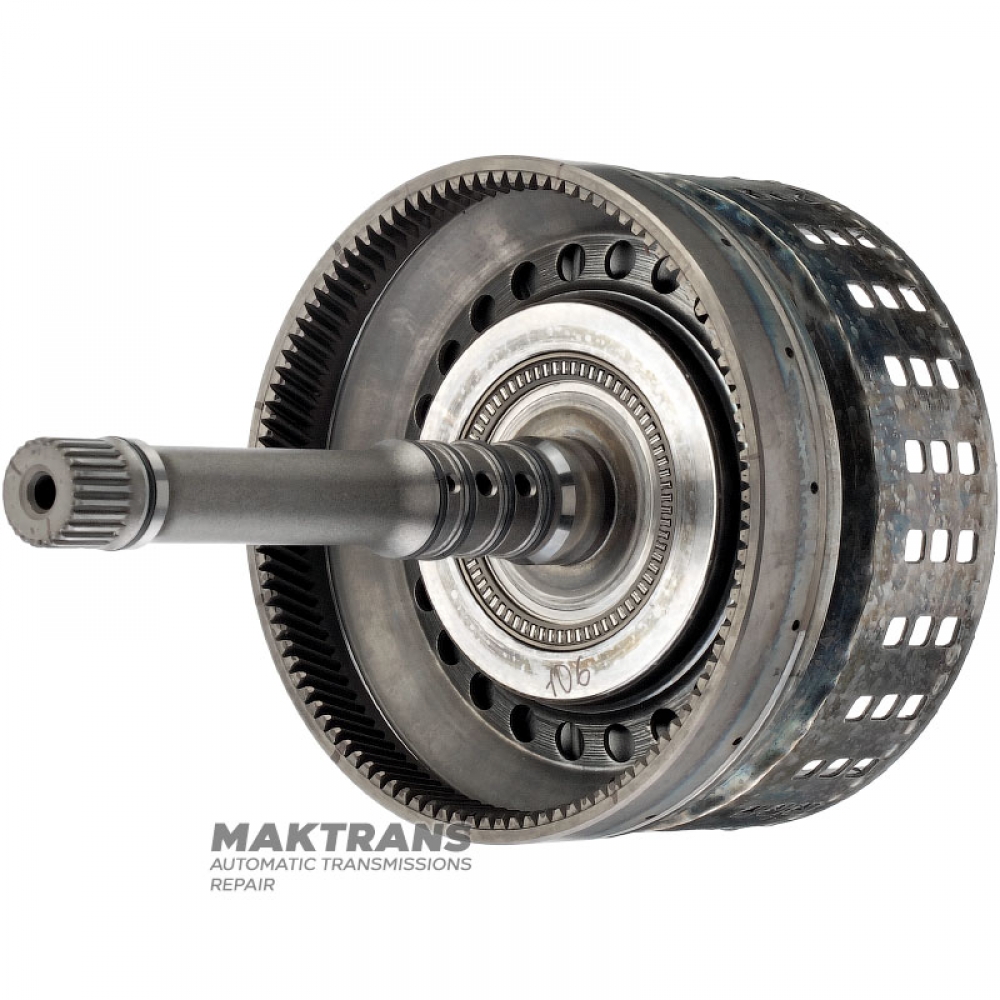

• Number of splines on the ring gear - 106 mm;
• The outer diameter of the ring gear is 174 mm;

• Drum height (including ring gear) - 99 mm;
• Height from piston to retaining ring (along the inner side of the drum) - 32 mm;

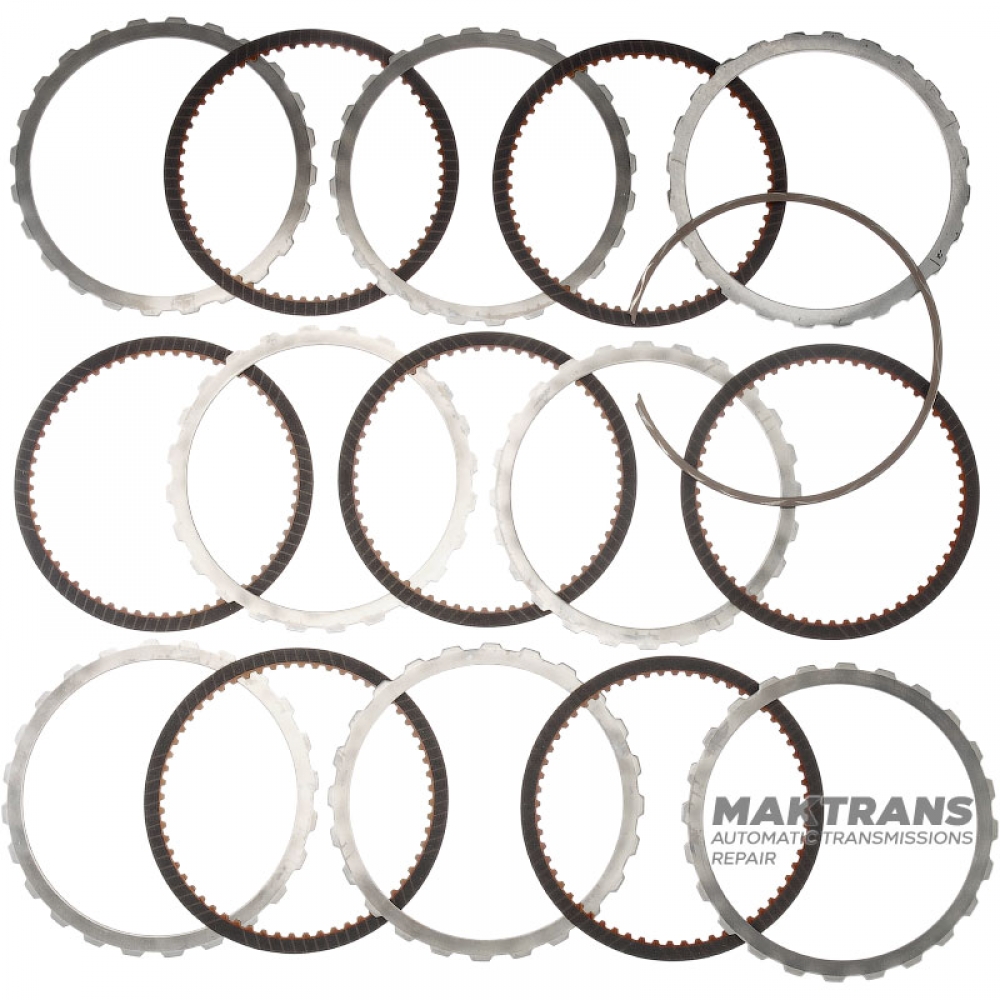

K1 Clutch Steel and Friction Disc Set:

Support disk:

• Thickness - 4.10 mm;
• Inner diameter - 144.35 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 144.35 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 7 pcs.;

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 161.05 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 7 pcs.;
