Input shaft / drum K1 Clutch NISSAN RE7R01,315401XJ0C - (6 friction discs, total height 313 mm, 102 teeth on ring gear)

• Overall length - 313 mm;
• Shaft length (from base) - 244.50 mm;
• Number of splines on the shaft - 24 pcs.;
• The length of the splined part of the shaft is 20 mm;
• The outer diameter of the splined part is 25.70 mm;
• Outer diameter over Teflon rings - 29.30 mm;
• The diameter of the shaft at the base of the K1 Clutch drum is 32.25 mm;
• Number of teeth on the ring gear - 102 pcs.;
• The outer diameter of the ring gear is 174 mm;
• Height from piston to retaining ring - 28 mm;

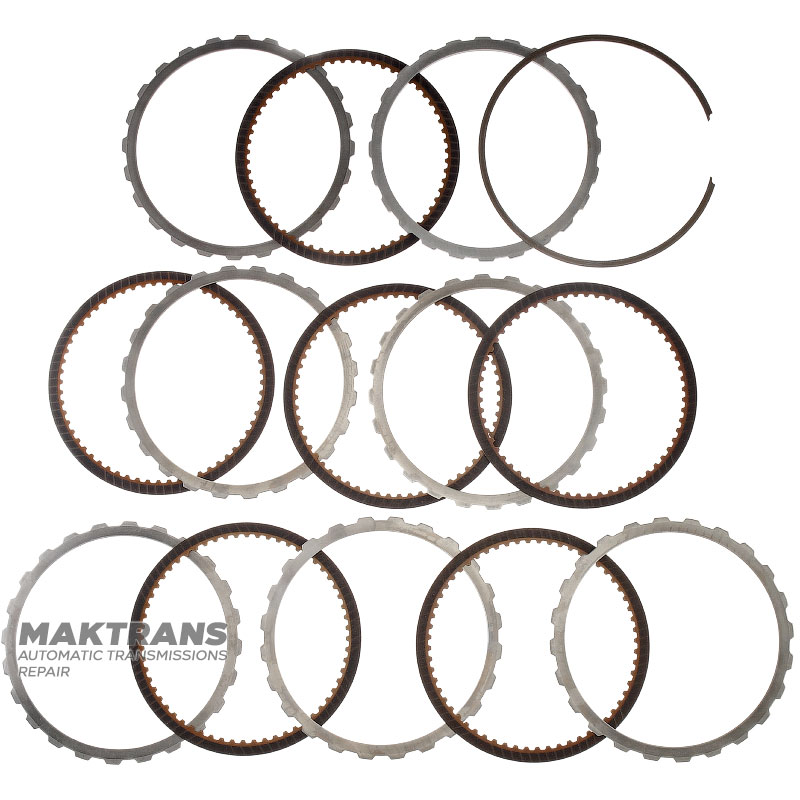

K1 Clutch Steel and Friction Disc Kit:

• Total thickness of the set - 27.20 mm;

Support disk:

• Thickness - 4.15 mm;
• Inner diameter - 146.35 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 161.10 mm;
• Number of teeth - 60 pcs.;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 146.40 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 6 pcs.;
