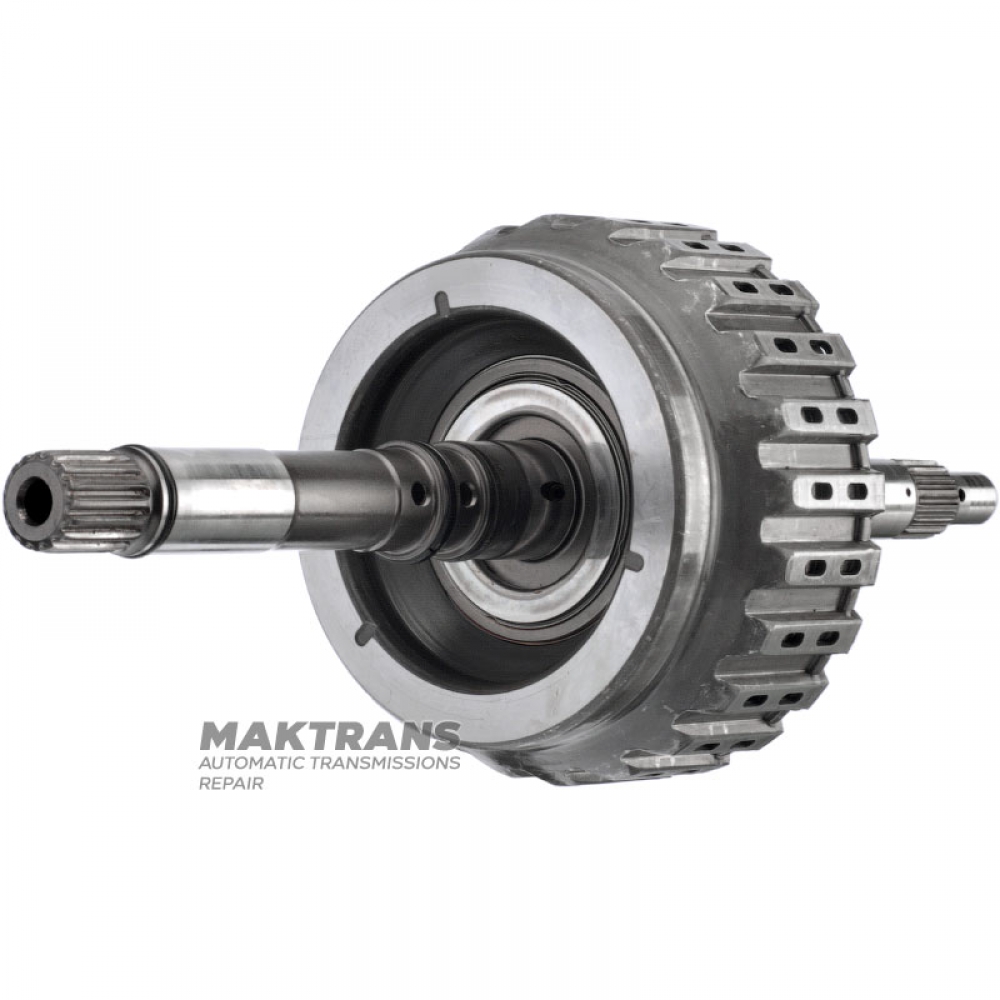

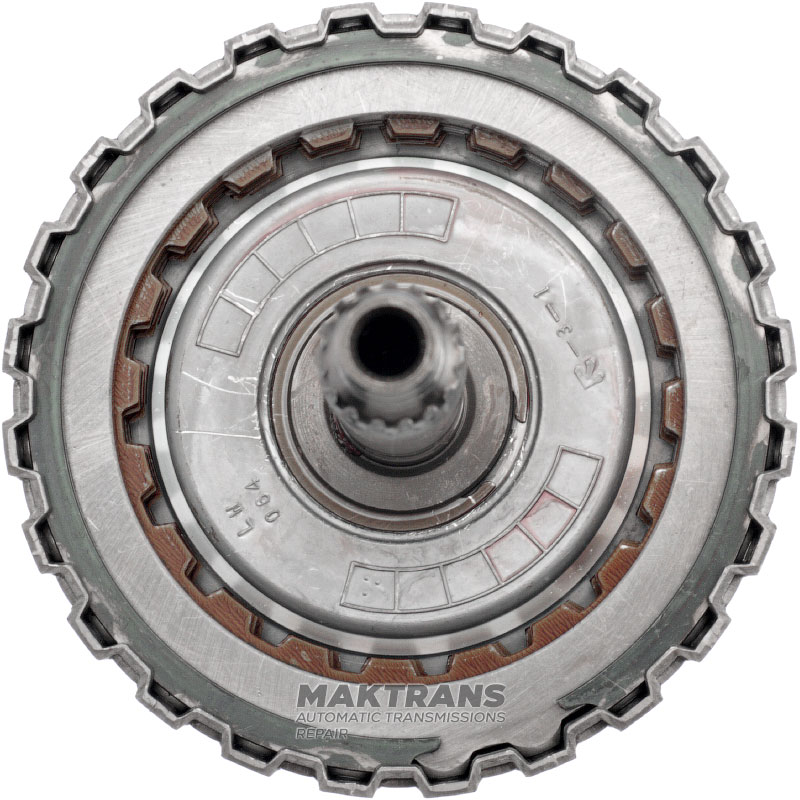

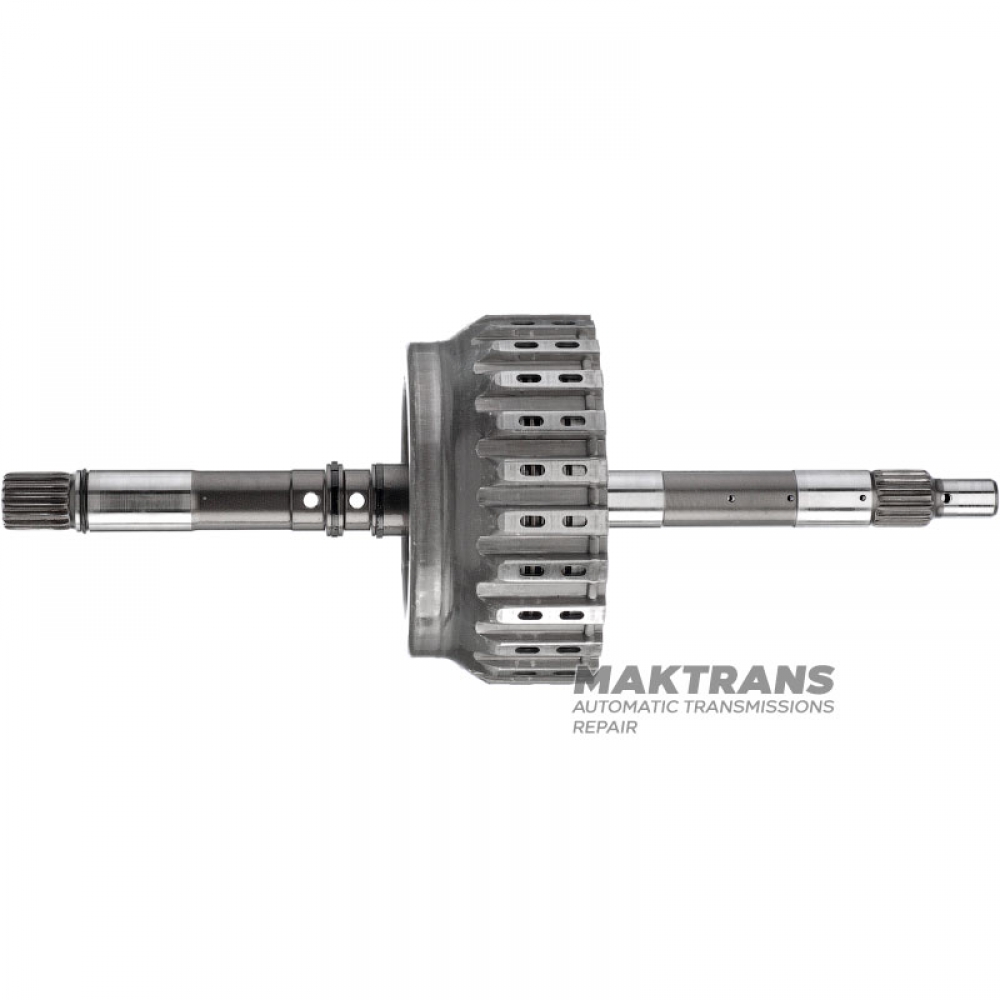

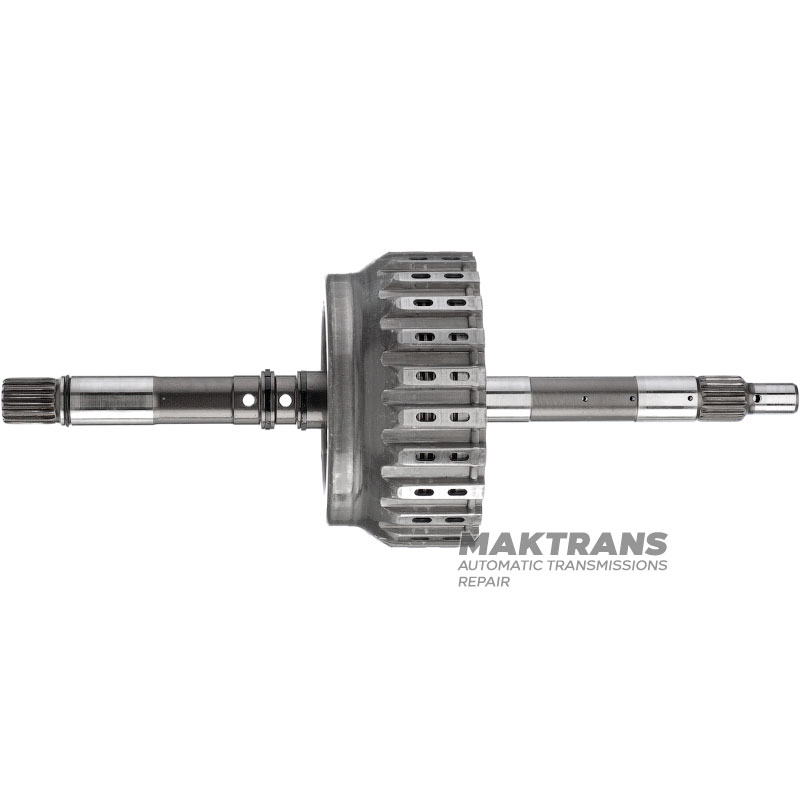

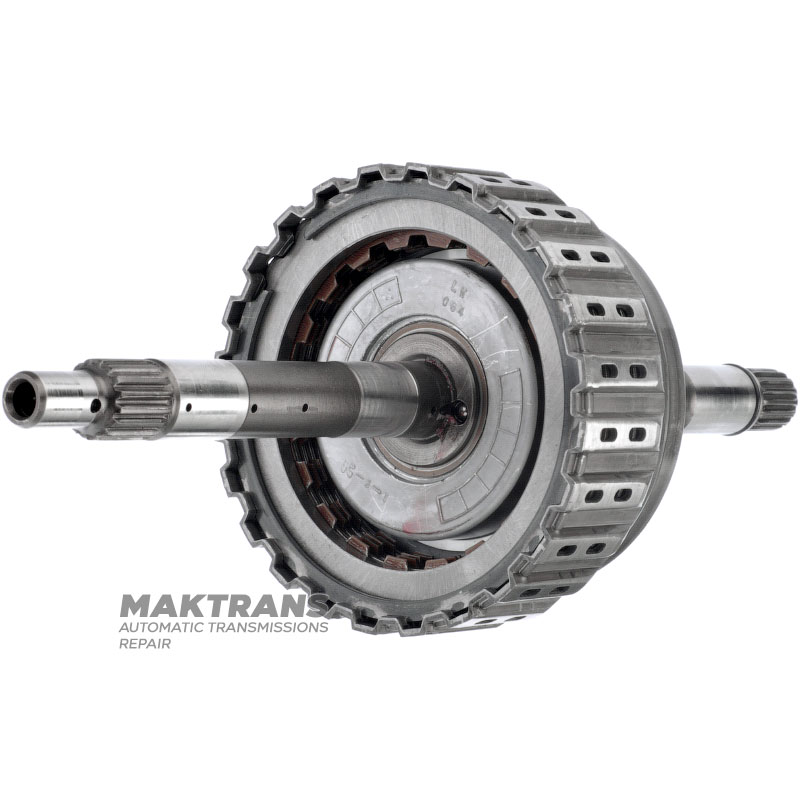

Input shaft / drum K1 (Low) Clutch JATCO JF404 001398205B - (shaft length 298 mm, 5 friction discs)

• Total shaft length - 298 mm;

Number of splines on the shaft:

• 16 splines (front side) - outer Ø 17.55 mm;
• 16 splines (back side) - outer Ø 17.55 mm;

Outer diameters of the working parts of the shaft:

• 18.95 mm;
• 22.85 mm;
• 17.70 mm;
• 11.95 mm;

K1 (Low) Clutch Steel and Friction Disc Set:

Support disk:

• Thickness - 4.80 mm;
• Inner diameter - 81.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs included - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 100.40 mm;
• Number of teeth - 20 pcs.;
• Number of discs included - 5 pcs.;

Steel disc:

• Thickness - 1.30 mm;
• Inner diameter - 81.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs included - 5 pcs.;

Spring disc:

• Thickness - 1 mm;
• Outer diameter - 101.65 mm;
• Inner diameter - 92.65 mm;
• Number of discs included - 1 pc.;
