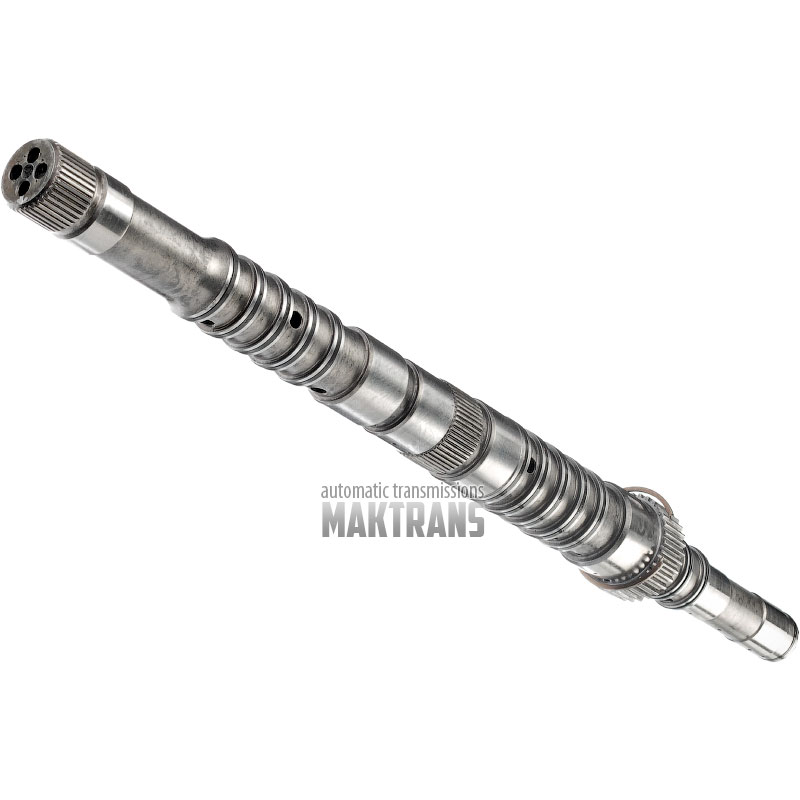

Input shaft FORD 10R80 / GM 10L90

• Total length - 562 mm;
• The width of the working part under the front spline part is 15 mm;

Number of splines on the shaft:

• 41 splines (outer Ø 30.85 mm);
• 50 splines (outer Ø 38.10 mm);
• 32 splines (outer Ø 49.70 mm);

Teflon ring outer diameter:

• 34.80 mm (5 rings);
• 40.70 mm (5 rings);
