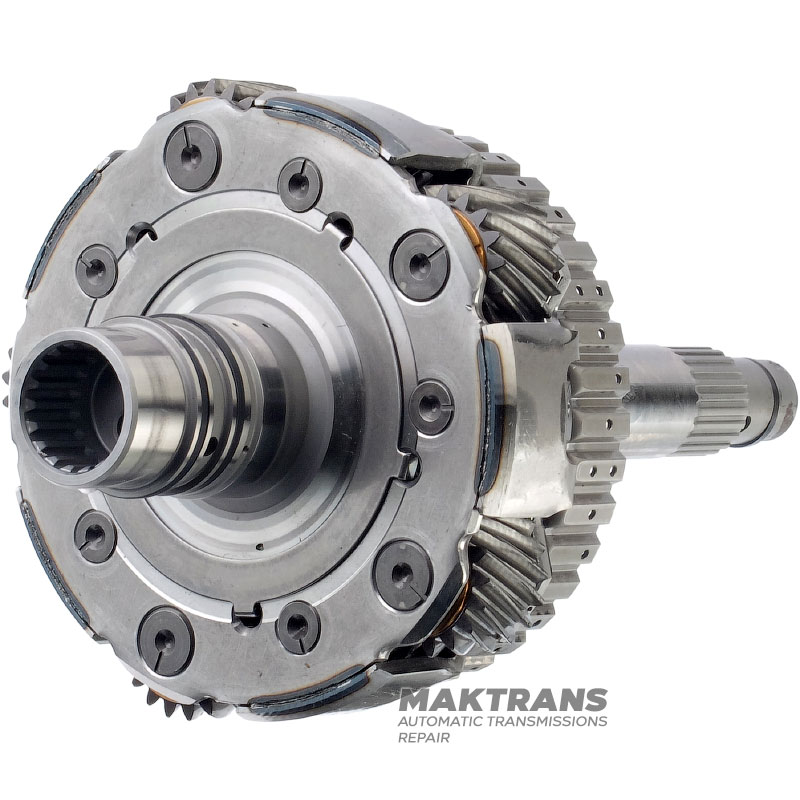

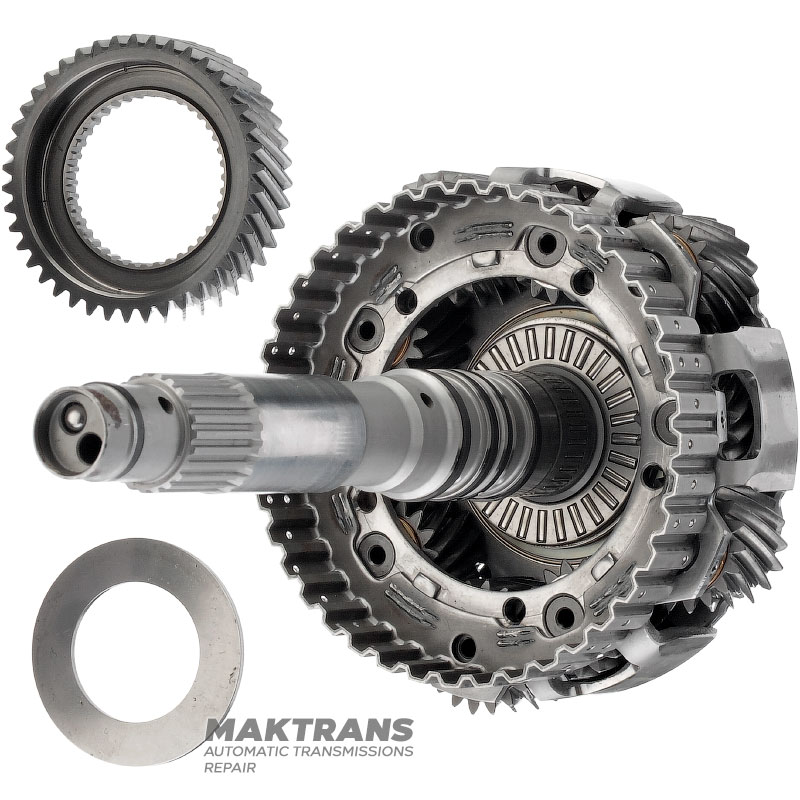

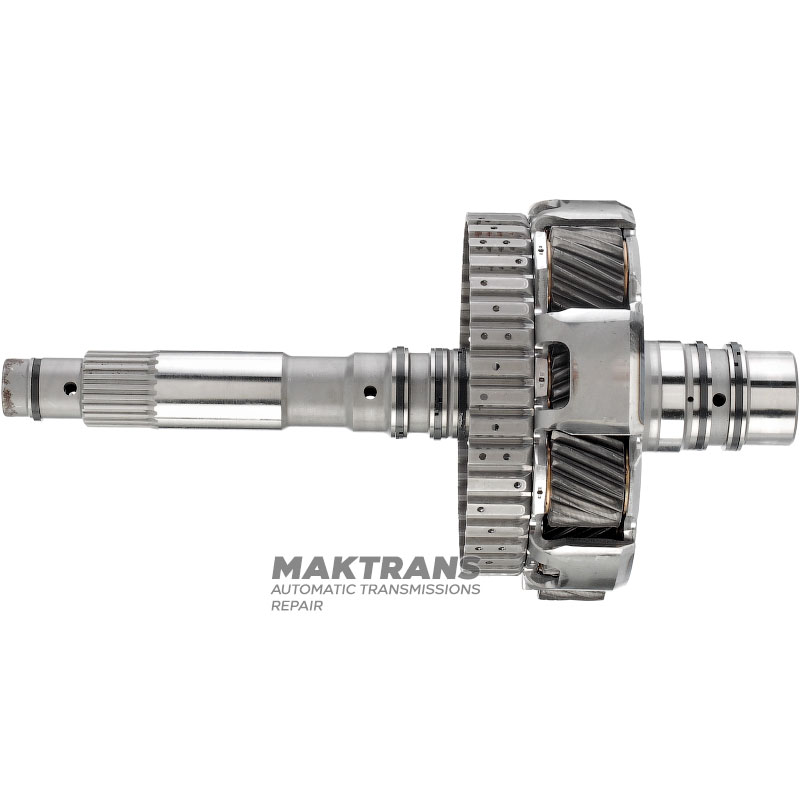

Input shaft, front planetary gear AWF8G45 - overall length 247 mm, sun gear 42 teeth (ext.Ø 67.30 mm)

• Total shaft length - 247 mm;
• Number of splines on the shaft - 23 pcs.;
• The outer diameter of the splined part is 24.25 mm;
• The outer diameter of the C3 Clutch hub is 114.30 mm;

External satellites (ring gear satellites):

• 18 teeth - ext.Ø 31.70 mm;

Inner satellites (sun gear satellites):

• 15 teeth - ext.Ø 27.45 mm;

Back side of the shaft:

• Length - 53 mm.;
• Outer diameter over Teflon rings - 34 mm;
• Outer diameter of working parts - 30.15 mm / ​35.75 mm;
• Number of splines on the inner side - 18 pcs.;

Sun gear:

• Gear width - 18.05 mm;
• Number of teeth - 42 pcs.;
• Outer diameter - 67.25 mm;
• Number of splines on the inner side - 40 pcs.;
