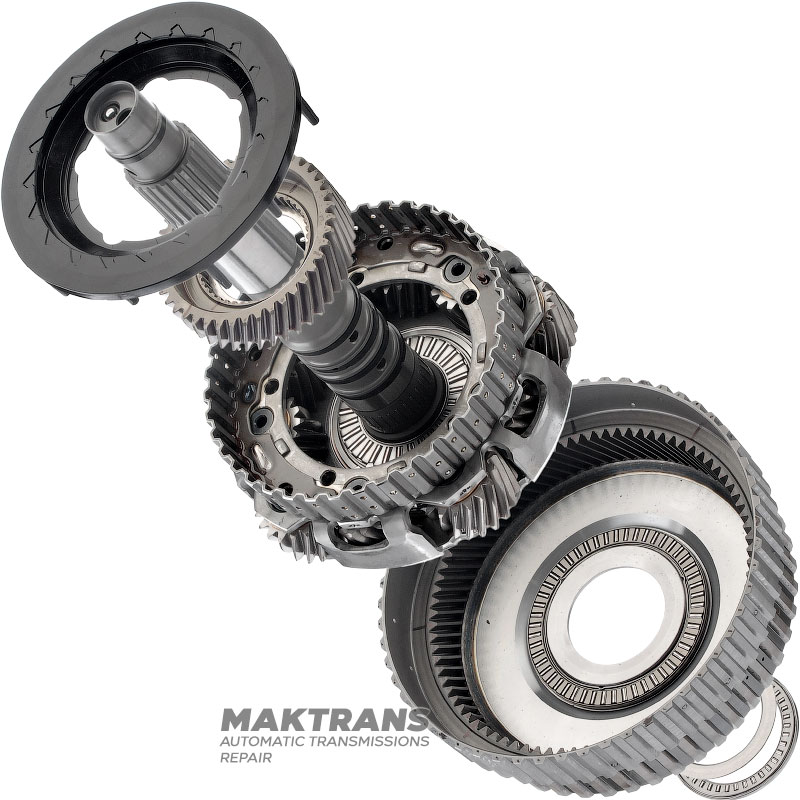

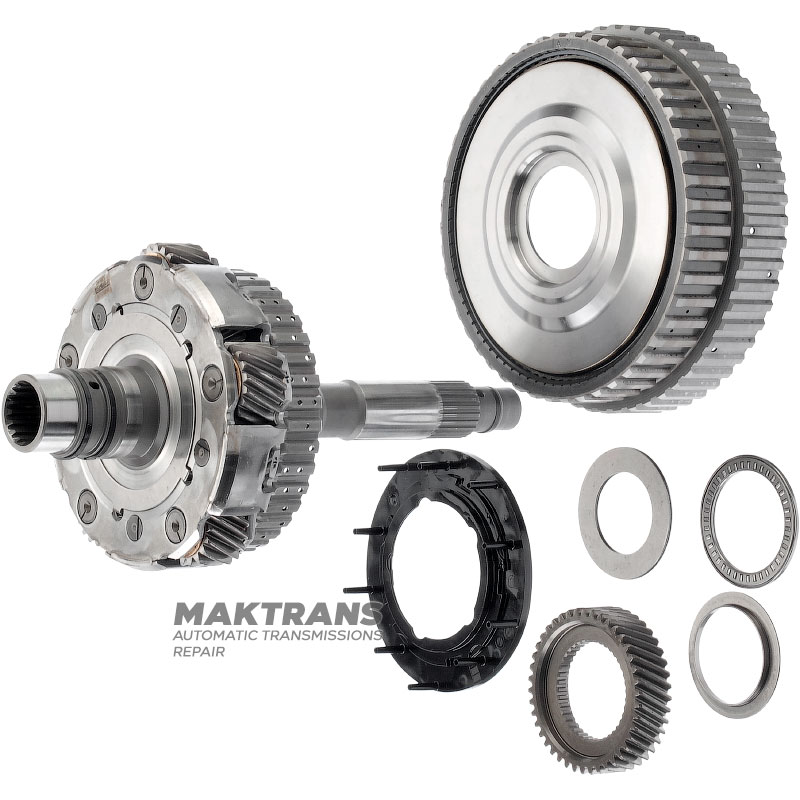

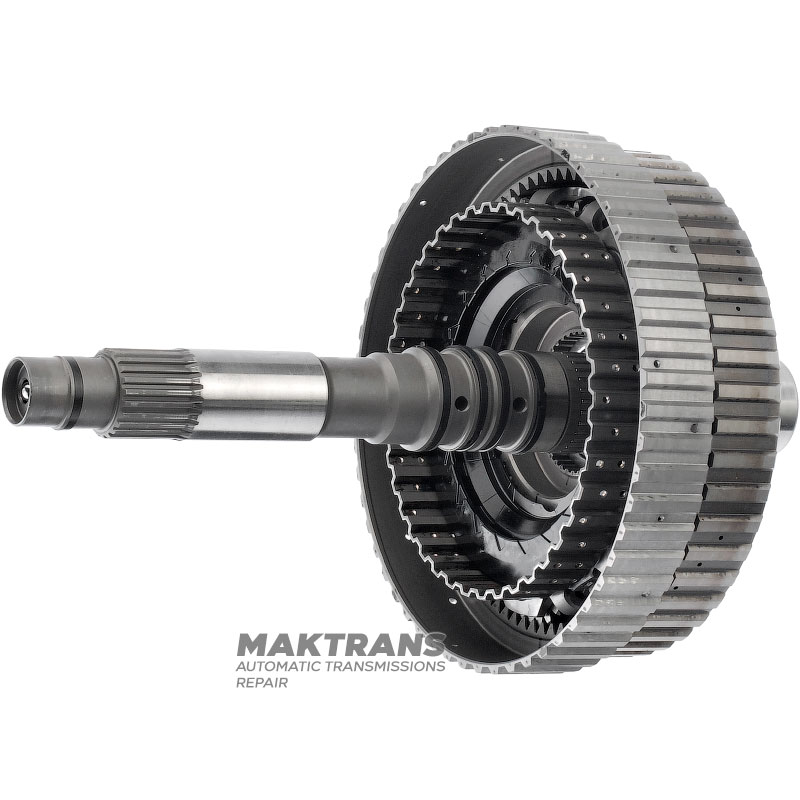

Input shaft / front planetary gear TOYOTA \ LEXUS UA81E UA81F — 3572078010, 3574348020, 3571948030, 3574548030

Input shaft / front planetary gear:

• Overall height - 244 mm;
• Number of splines - 23 pcs.;
• The outer diameter of the splined part is 24.25 mm;
• The outer diameter of the working part is 25.25 mm;
• Outer diameter over Teflon rings - 28.80 mm;
• The outer diameter of the C4 Clutch hub is 112.45 mm;

Number of satellites:

• 5 external (ring gear satellites) - 18 teeth (ext.Ø 31.35 mm);
• 5 internal (sun gear satellites) - 15 teeth (ext.Ø 27.45 mm);

Back side of the shaft:

• Height - 244 mm;

Diameters of working parts:

• 35.75 mm;
• 30.15 mm;
• Outer diameter over Teflon rings - 34 mm;
• Number of splines on the inner side - 18 pcs.;

Sun gear:

• Width - 18.25 mm;
• Number of teeth - 42 pcs.;
• Outer diameter - 67.30 mm;
• Number of splines on the inner side - 40 pcs.;

Ring gear:

• Overall height - 53 mm;
• Number of teeth on the gear - 82 pcs.;
• Number of teeth on the C3 Clucth hub — 56 (outer hub diameter 155.15 mm);
• Number of teeth on the C1 Clutch hub — 48 (outer hub diameter 146.05 mm);
