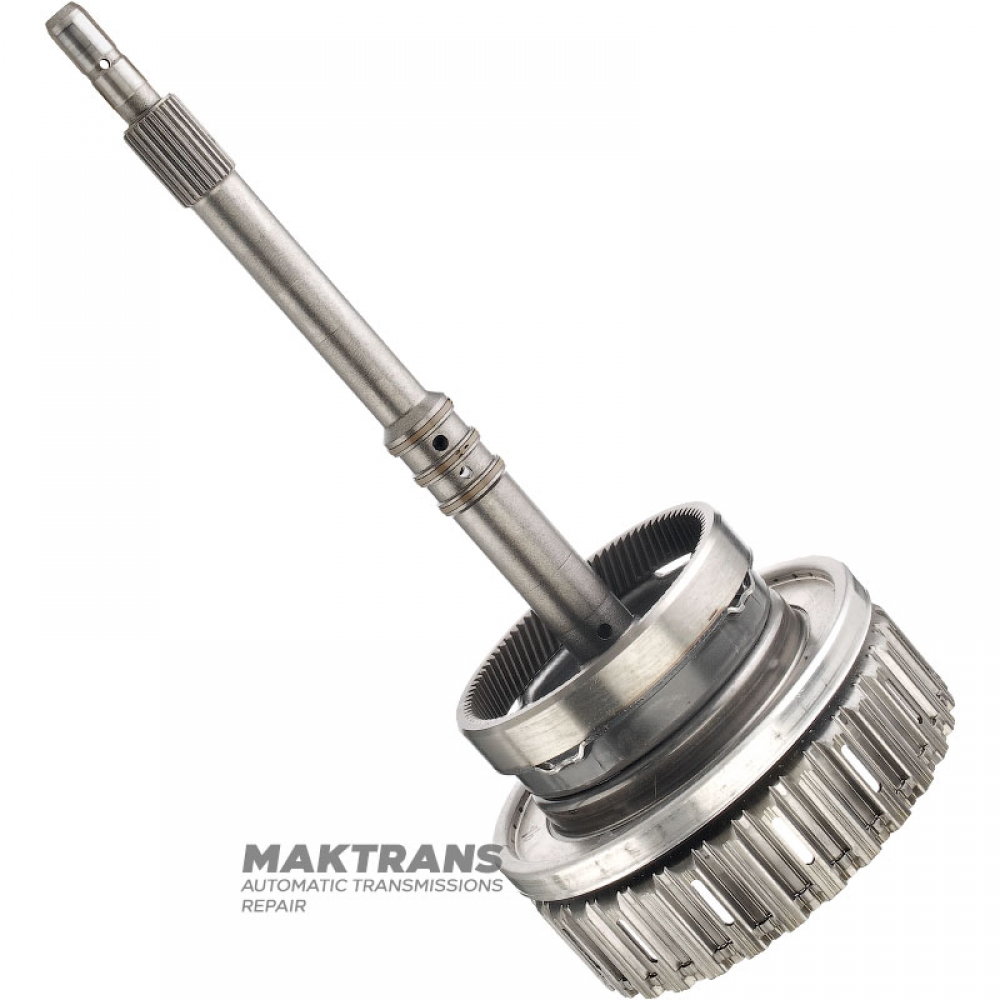

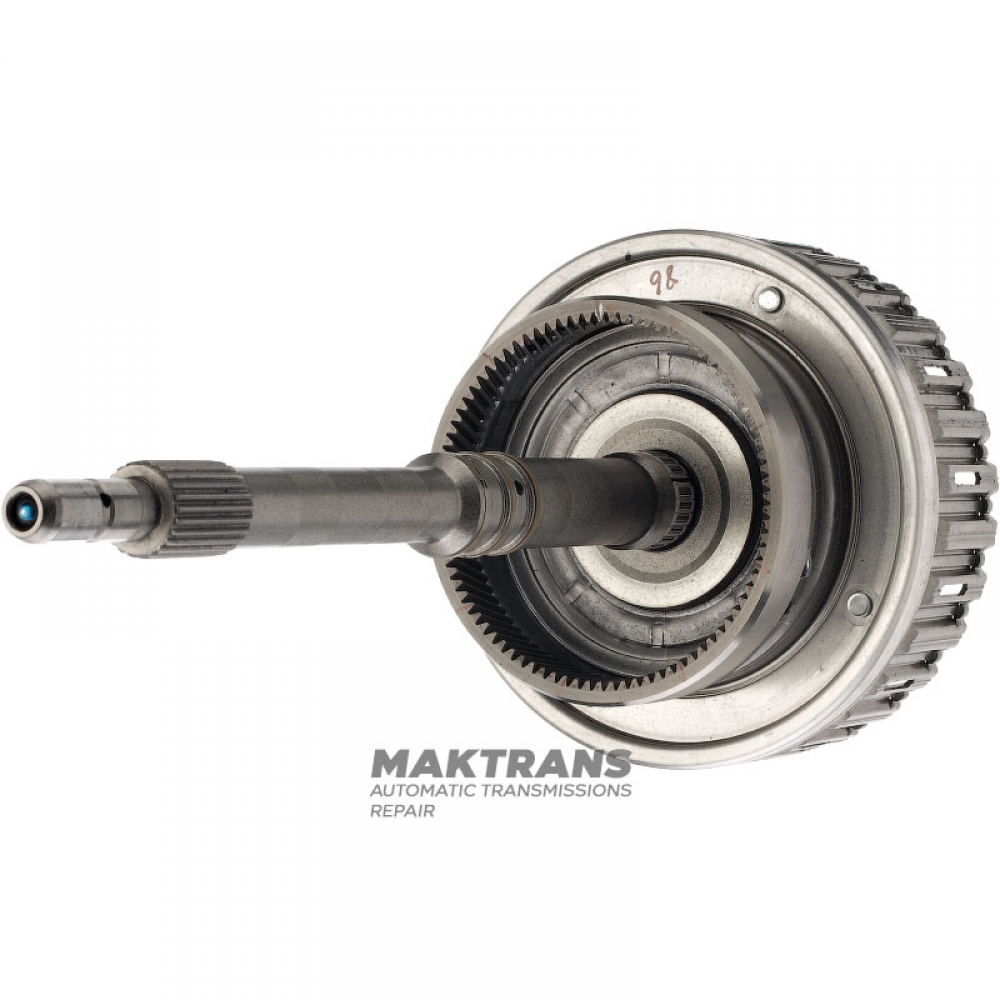

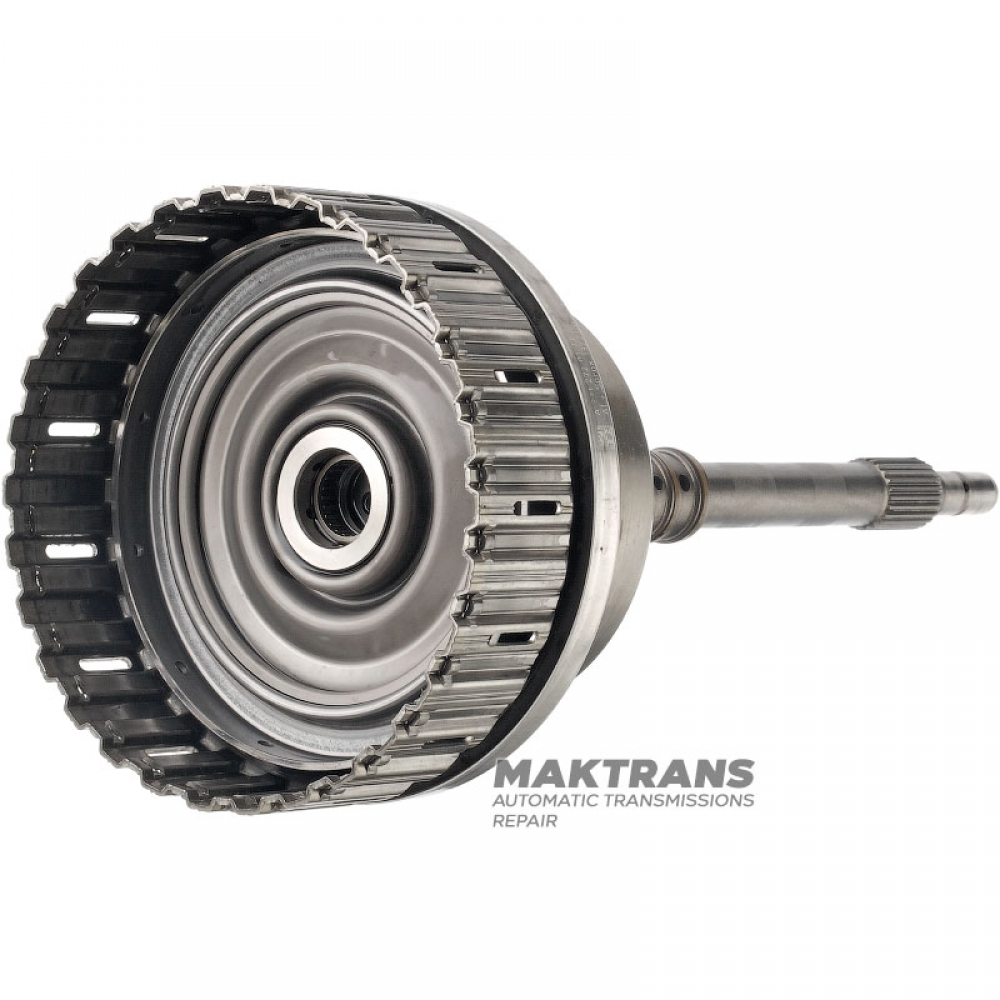

Input shaft, K2 Clutch Braban (empty, without discs) MERCEDES-BENZ 722.9— total shaft length 417 mm, 86 teeth on ring gear, from piston to stopper 28 mm

Name: Input shaft, K2 Clutch Braban (empty, without discs) MERCEDES-BENZ 722.9— total shaft length 417 mm, 86 teeth on ring gear, from piston to stopper 28 mm
Brand: MERCEDES-BENZ
Price: 150.28 EUR
Availability: OutOfStock

Input shaft, K2 Clutch Braban (empty, without discs) MERCEDES-BENZ 722.9— total shaft length 417 mm, 86 teeth on ring gear, from piston to stopper 28 mm

Worldwide Shipping 🌎

Product Code:

MB7229-417-BD

Product model copied to clipboard

Brand

MERCEDES-BENZ

Availability: Out Of Stock

Weight (kg): 4.2

€150.28

Shipping Icon Shipping to United States from €92.1

Main Specifications

Condition (used, new): used and inspected

Type: Input shaft

Equipment level: K2 Clutch Drum - Empty, No Discs

Length (mm): 417 mm

Number of teeth: 86

Product overview
Shipping & Payment
Questions - Answers (0)

Total height - 417 mm;
Length of the nose at the front - 47.50 mm;
Number of splines on the shaft - 24 pcs | length of the splined part - 35 mm | ext.Ø 25.70 mm;
Number of teeth on the ring gear - 86 pcs.;
The outer diameter of the ring gear is 131.95 mm;
The outer diameter of the magnetic ring of the drum is 180.05 mm;
Height from piston to retaining ring K2 Clutch - 2728 mm;
