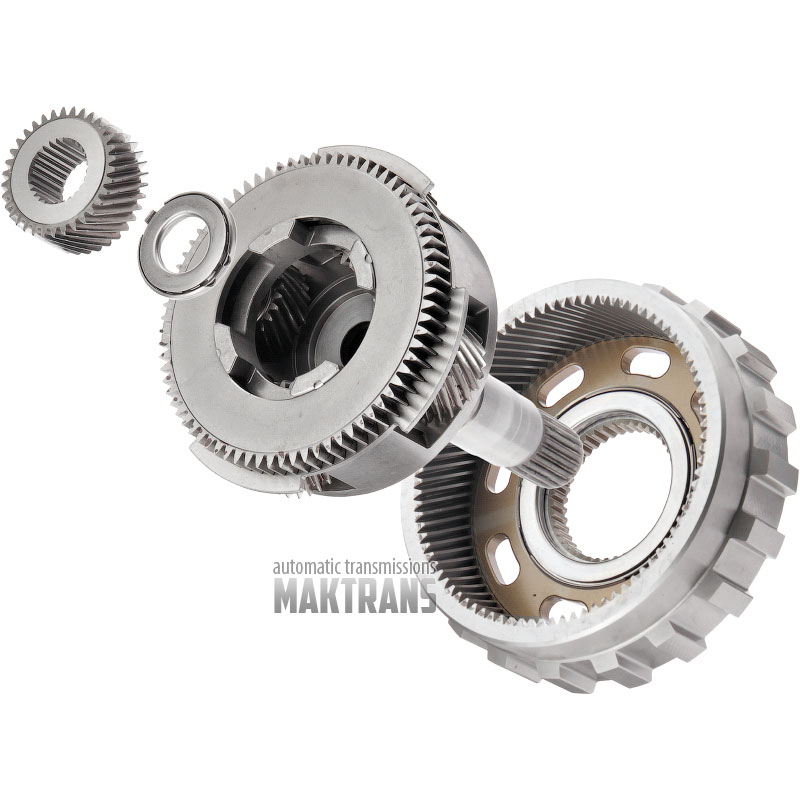

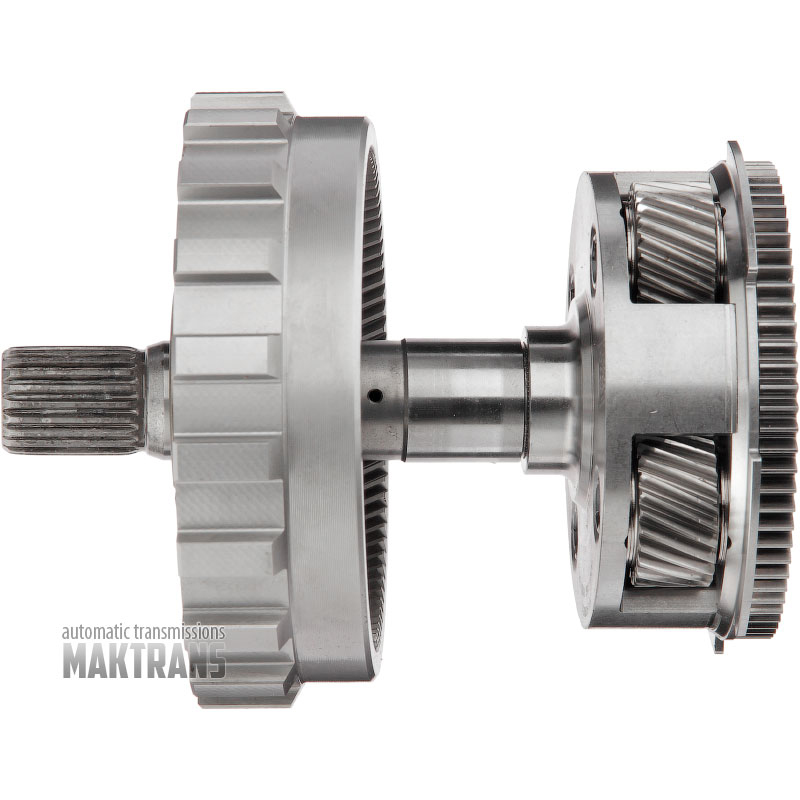

Input shaft / planetary gear FORD HF45 eCVT LX68-7D055-BA, HG9P-7A153-AA, HG9P-7H535-AA - 4 satellites (26 teeth), overall height 152 mm (21 splines, outer Ø 21.80 mm)

• Overall height - 152 mm;
• Shaft length (from the base of the planetary gear) - 115 mm;
• Number of splines on the shaft - 21 pcs.;
• The outer diameter of the splined part is 21.80 mm;
• The outer diameter of the working part of the shaft is 25 mm;
• Number of teeth on the drive gear of the oil pump - 73 pcs.;
• The outer diameter of the oil pump drive gear is 95.40 mm;

Planetary gear:

• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 26 pcs.;

Sun gear:

• Overall height - 19.05 mm;
• Number of teeth - 34 pcs.;
• Gear outer diameter - 41.05 mm;
• Number of splines on the inner side - 26 pcs.;

Ring gear:

• Overall height - 39 mm;
• Number of splines on the inner side - 42 pcs.;
• The outer diameter of the parking gear is 122 mm;
• Number of teeth on the parking gear - 19 pcs.;
• Number of teeth on the ring gear - 86 pcs.;
