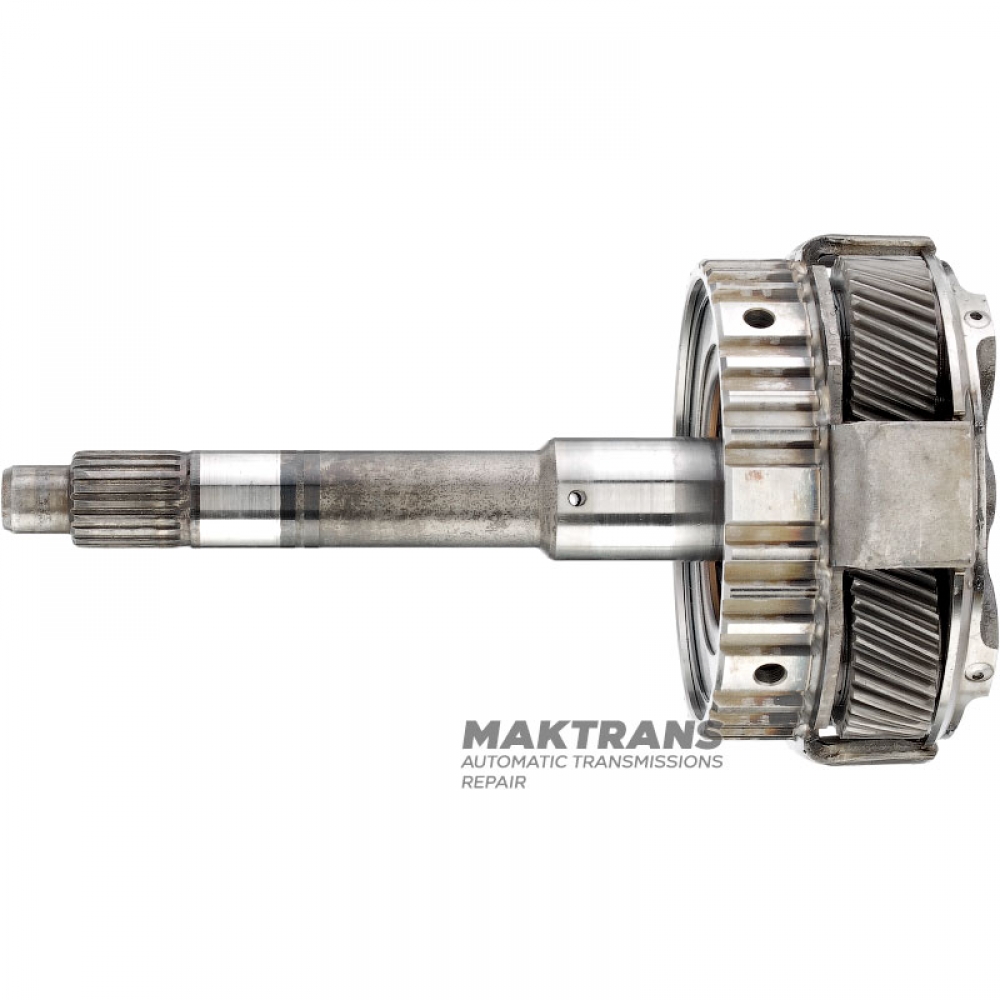

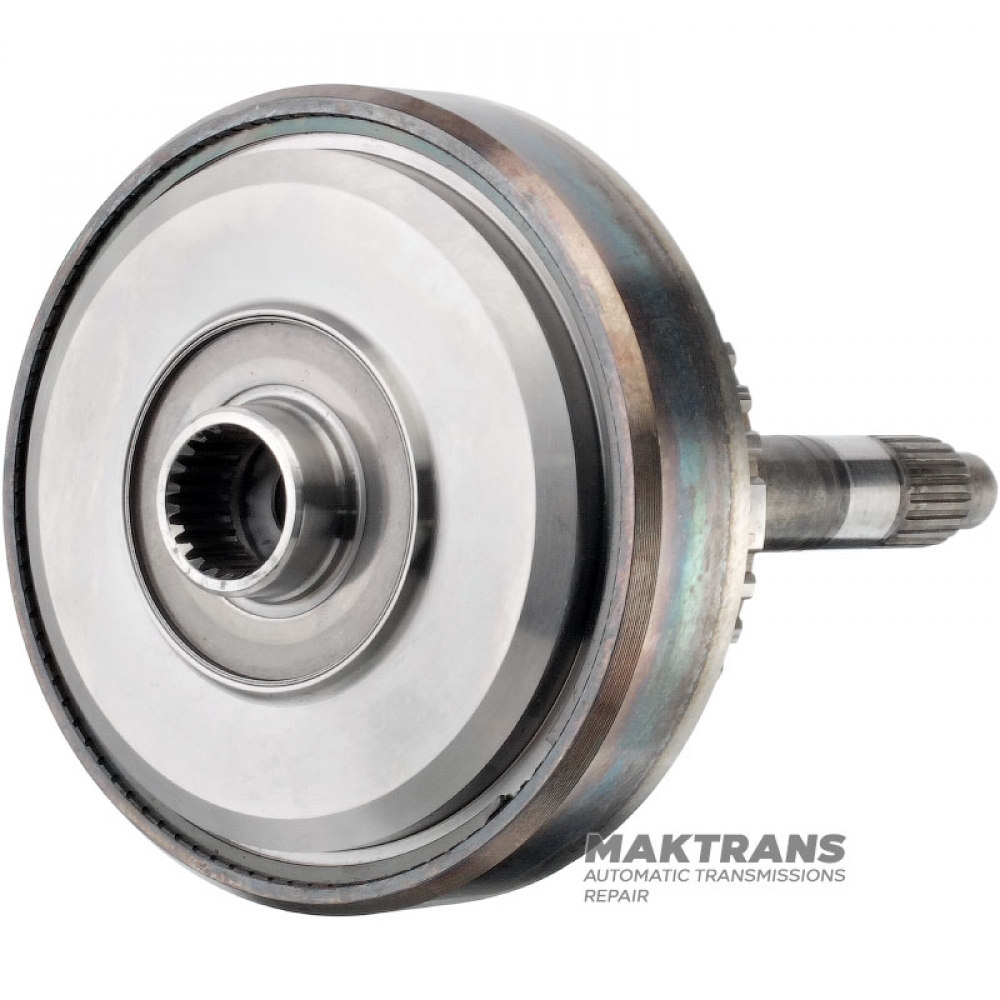

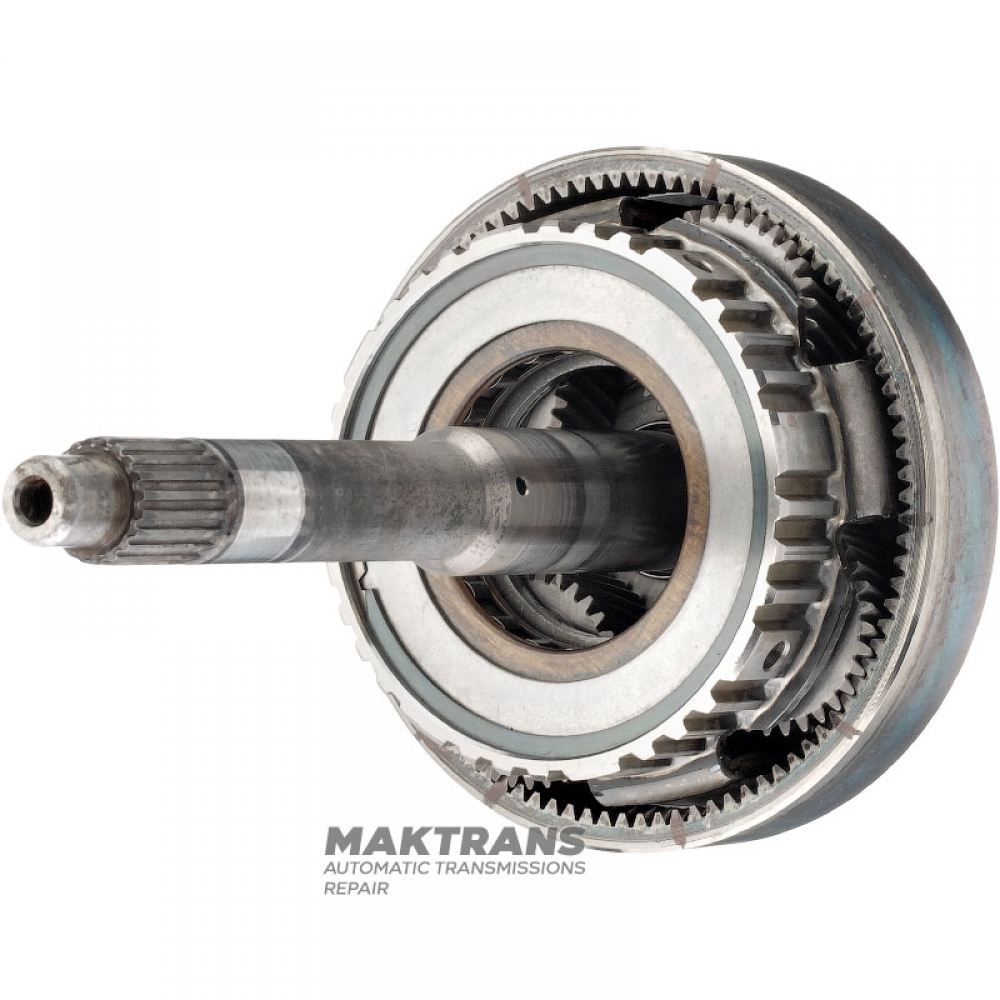

Input shaft / planetary gear OVERDRIVE Aisin Warner 30-40LE, 30-80LE / TOYOTA A343 - input shaft length 194 mm (20 splines, outer Ø 21.30 mm), 4 satellites (32 teeth), ring gear 95 teeth (outer Ø 134.30 mm )

Input shaft / planetary gear OVERDRIVE:

• Overall height - 206 mm;
• Input shaft height - 194 mm;
• Number of splines - 20 pcs.;
• The outer diameter of the splined part is 21.30 mm;

Diameters of working parts of the shaft:

• 14.90 mm;
• 21.45 mm;
• 26.90 mm;

• The outer diameter of the hub is 103.80 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 32 pcs.;

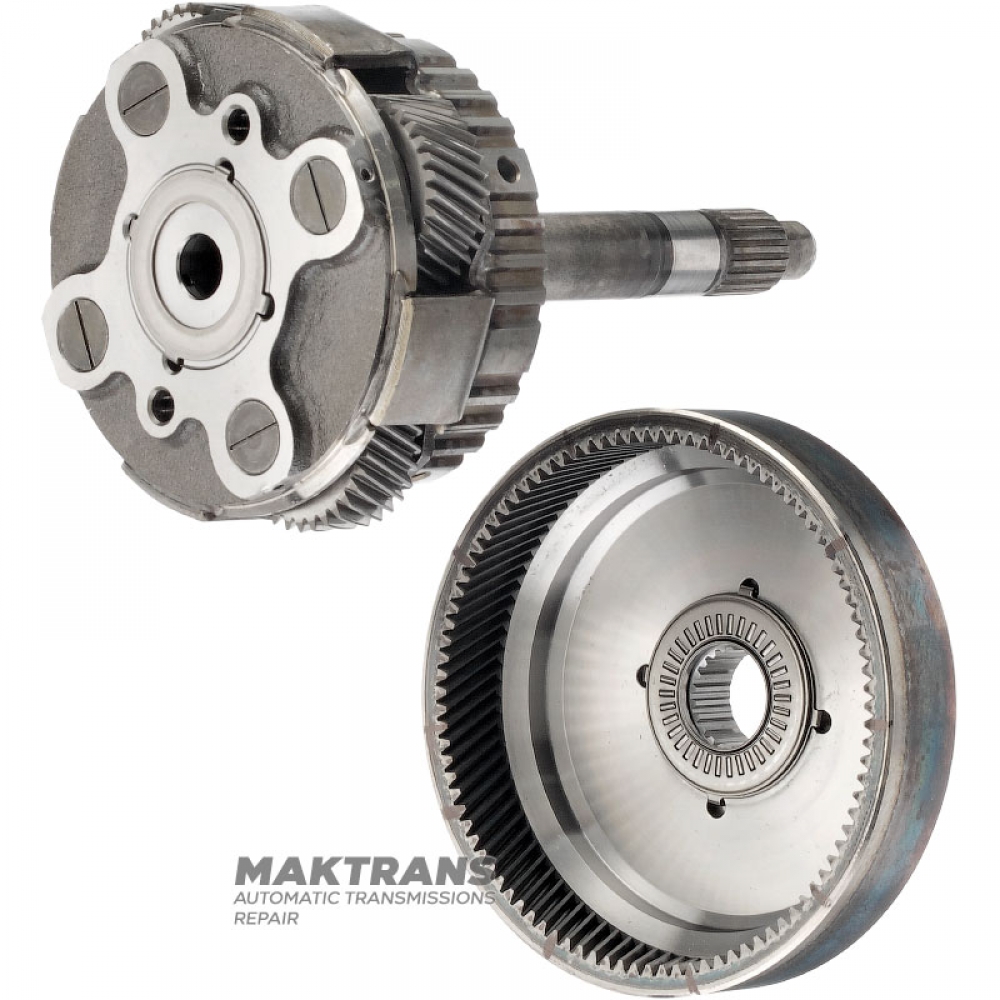

Ring gear:

• Overall height - 49 mm;
• Number of teeth - 95 pcs.;
• Gear outer diameter - 134.25 mm;
• Number of splines on the inner side of the flange - 22 pcs.;

Tags: 9037431008, 9037425005, 9037424004, 3578930052, 3578930051, 3578930050, 3471014021, 3471014020, 3473750010, 3471332010, 90 52199028, 9037433002, 3578922060, 9052199118, 3473240011, 3473240010
