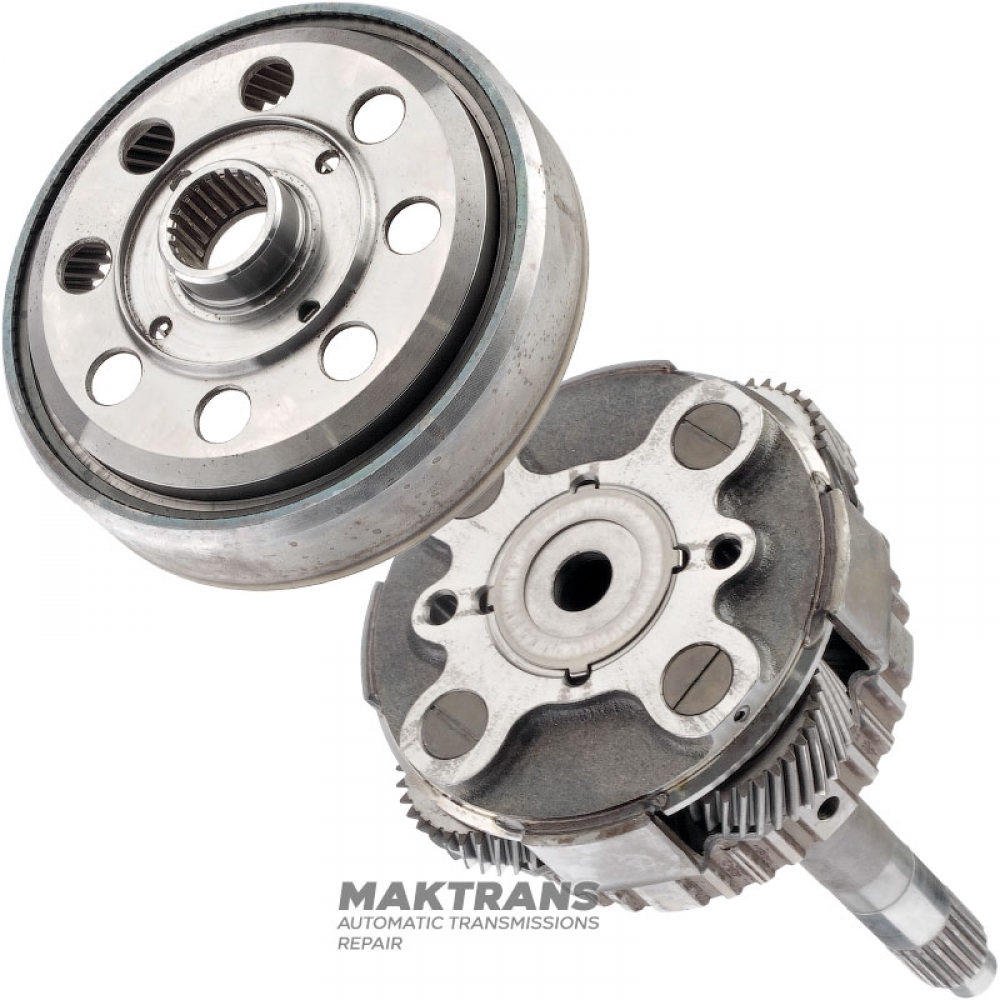

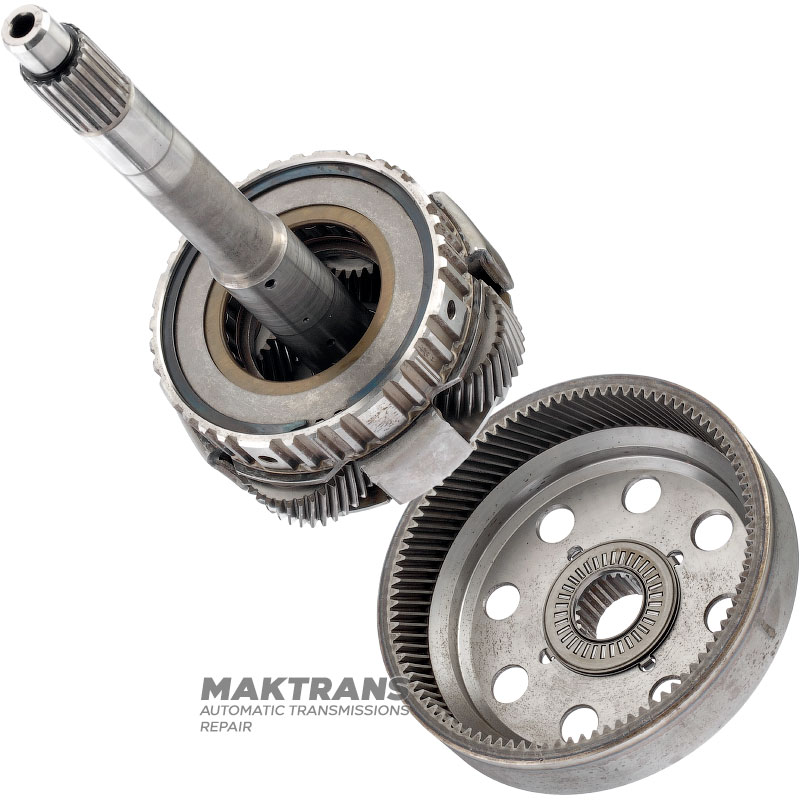

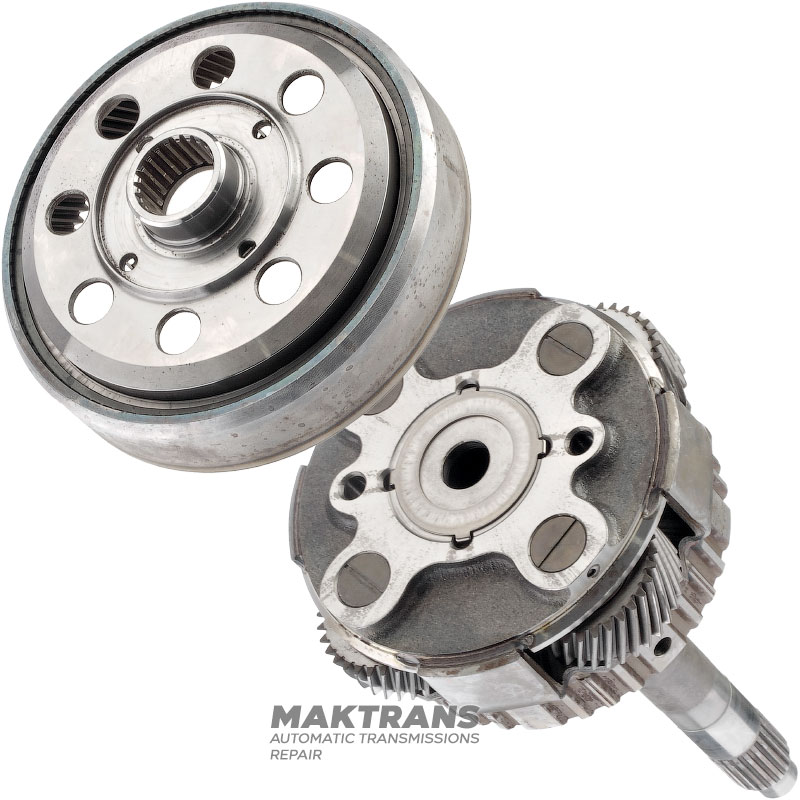

Input shaft / planetary gear OVERDRIVE Aisin Warner 30-40LE, 30-80LE / TOYOTA A343 - input shaft length 208 mm (20 splines, outer Ø 21.30 mm), 4 satellites (32 teeth), ring gear 95 teeth (outer Ø 134.30 mm )

Input shaft / planetary gear OVERDRIVE:

• Overall height - 222 mm;
• Input shaft height - 208 mm;
• Number of splines - 20 pcs.;
• The outer diameter of the splined part is 21.30 mm;

Diameters of working parts of the shaft:

• 14.90 mm;
• 21.45 mm;
• 26.90 mm;

• The outer diameter of the hub is 103.80 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 32 pcs.;
• Satellite width - 17.70 mm;

Ring gear:

• Overall height - 49 mm;
• Number of teeth - 95 pcs.;
• Gear outer diameter - 134.25 mm;
• Number of splines on the inner side of the flange - 22 pcs.;
