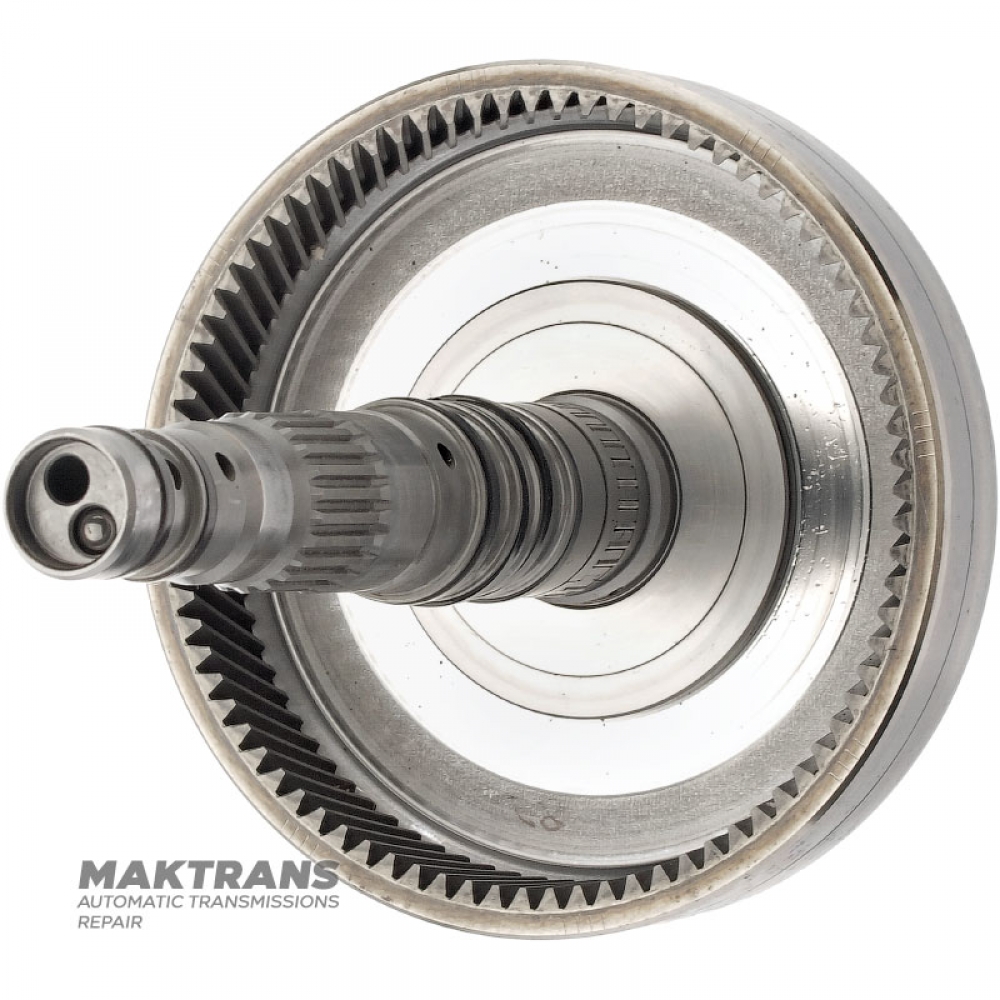

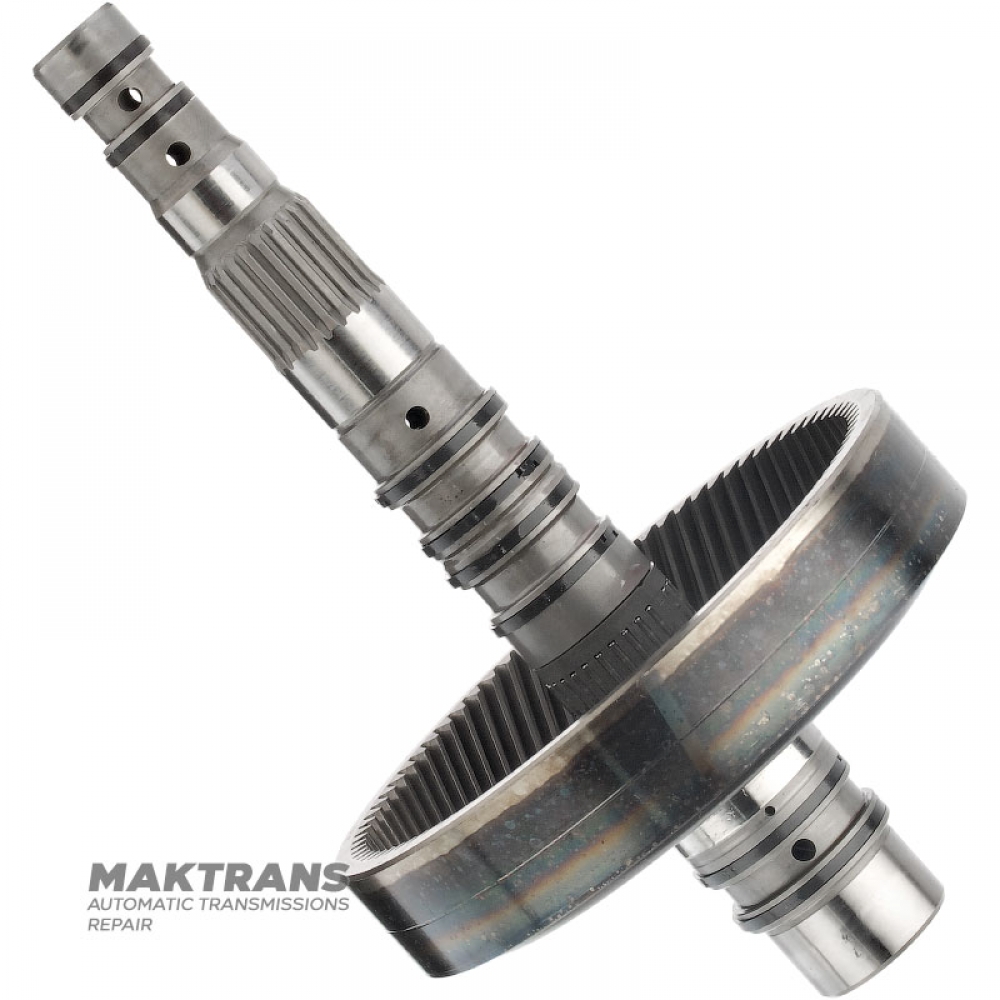

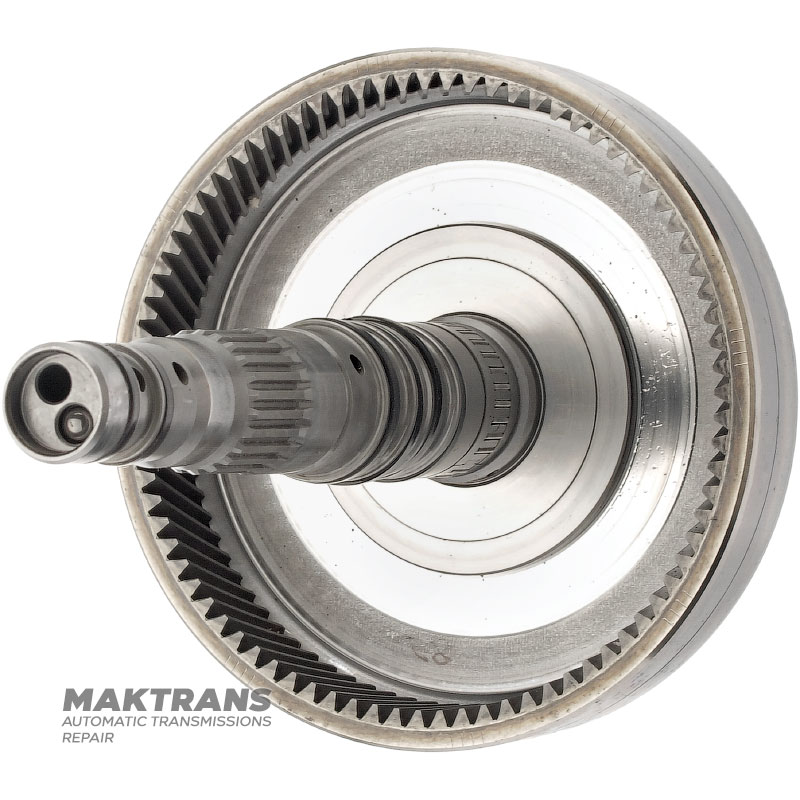

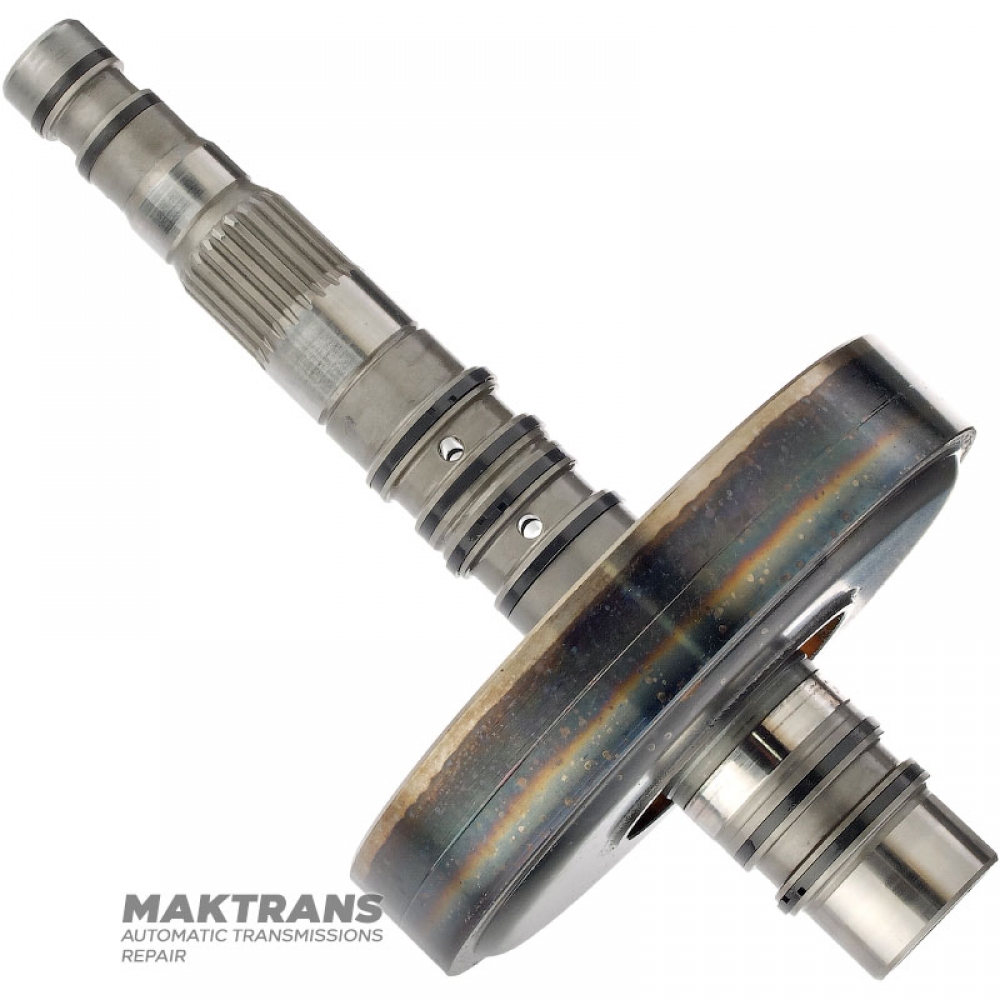

Input shaft TOYOTA / LEXUS Hybrid PC60 - overall shaft length 220 mm, ring gear 82 teeth (ext. Ø 131.10 mm)

• Total shaft length - 220 mm;

Front side:

• Shaft length - 163 mm;
• Number of splines on the shaft - 23 pcs.;
• The outer diameter of the splined part is 24.25 mm;
• Outside diameter over Teflon rings - 19.40 mm | 28.85 mm;

Ring gear:

• Number of teeth - 82 pcs.;
• Outer diameter of gear - 131.10 mm;

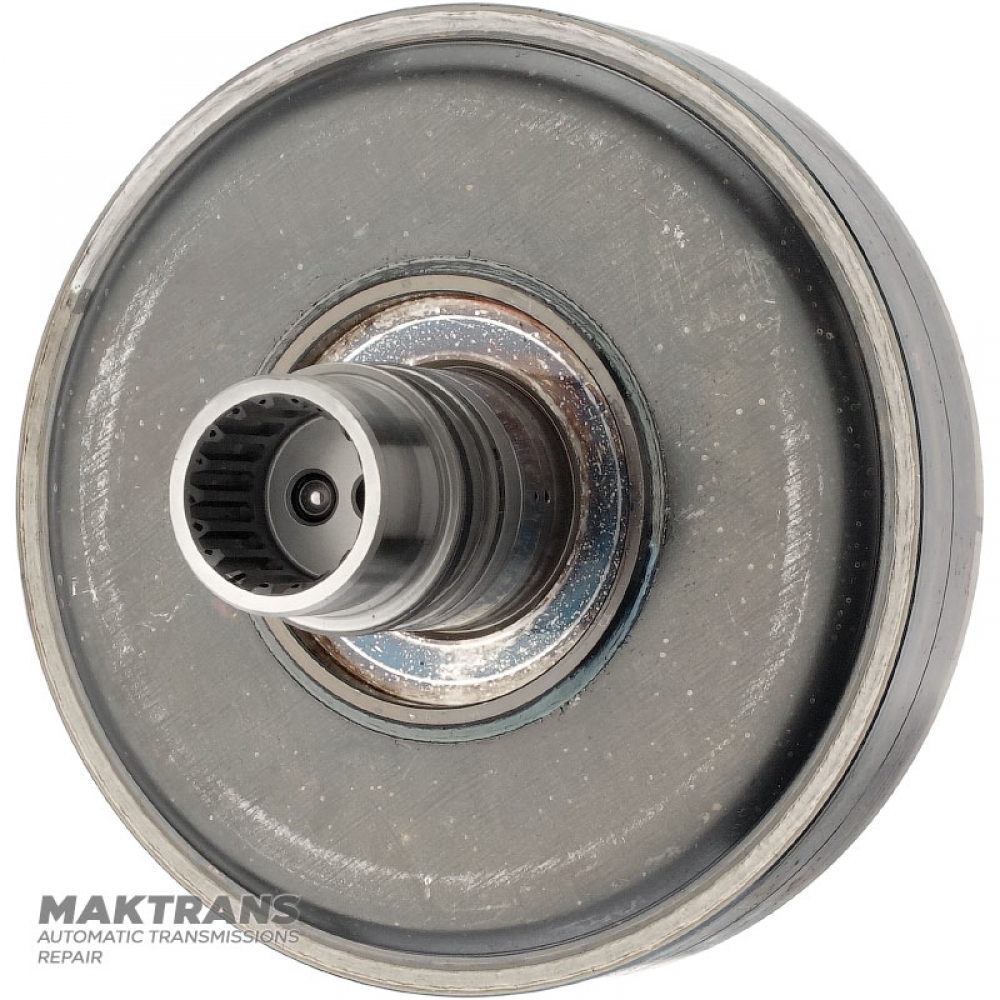

Back side:

• Overall length - 53 mm;
• Outer diameter over Teflon rings - 34 mm;
• Number of splines on the inner side - 18 pcs.;
• Outer diameter over Teflon rings - 34.25 mm | 30 mm;
