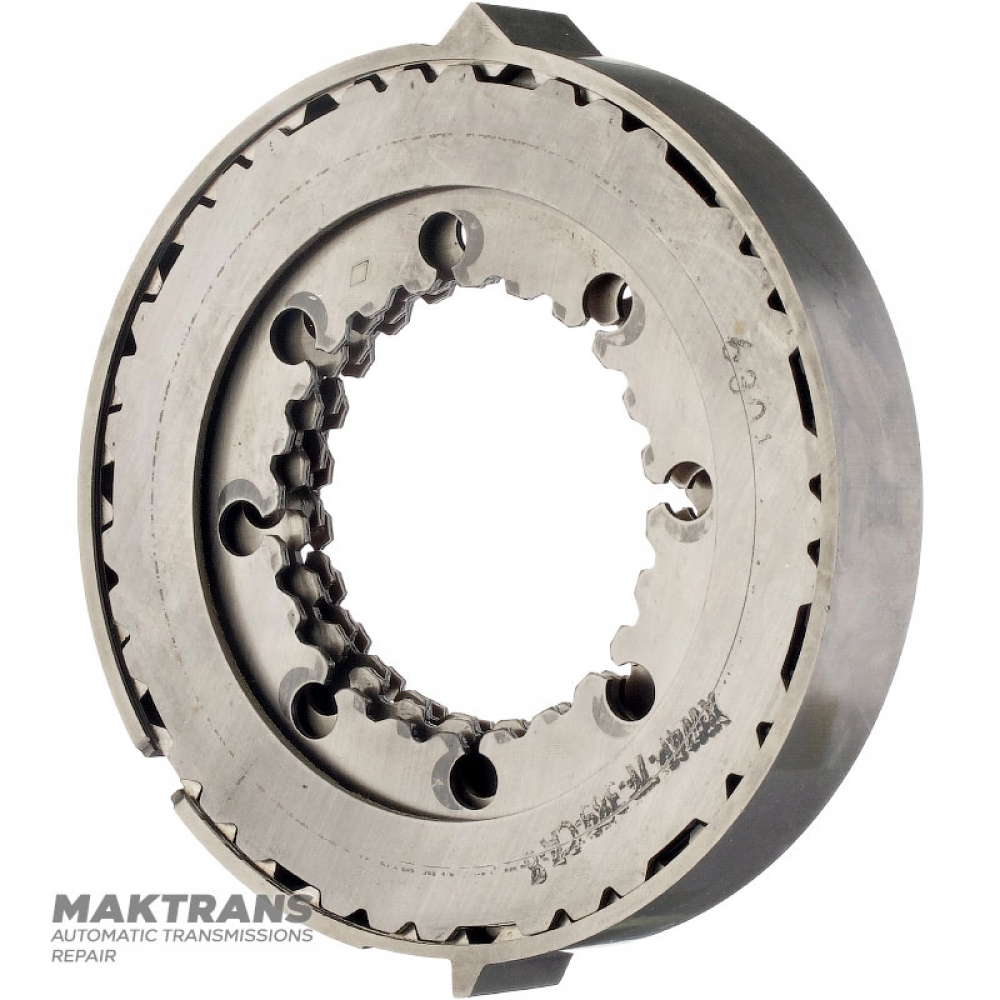

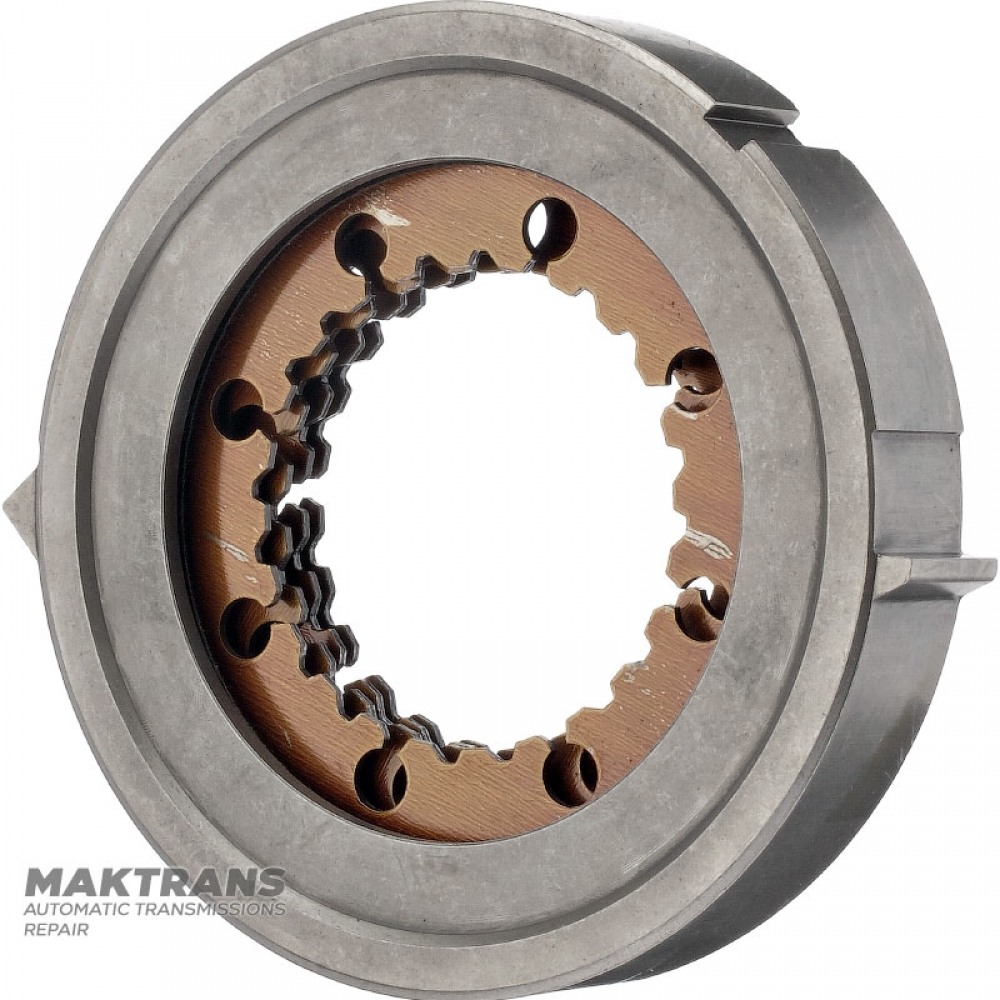

Intermediate Clutch Drum Assembled with Discs FORD — XW4Z-7B164-CA, XW4Z-7B442-CA, XW4Z-7F340-AA

Intermediate Clutch Drum:

• Overall height - 29.20 mm;
• Outer diameter - 159.65 mm;
• Height (on the inside) to the retaining ring - 21 mm;

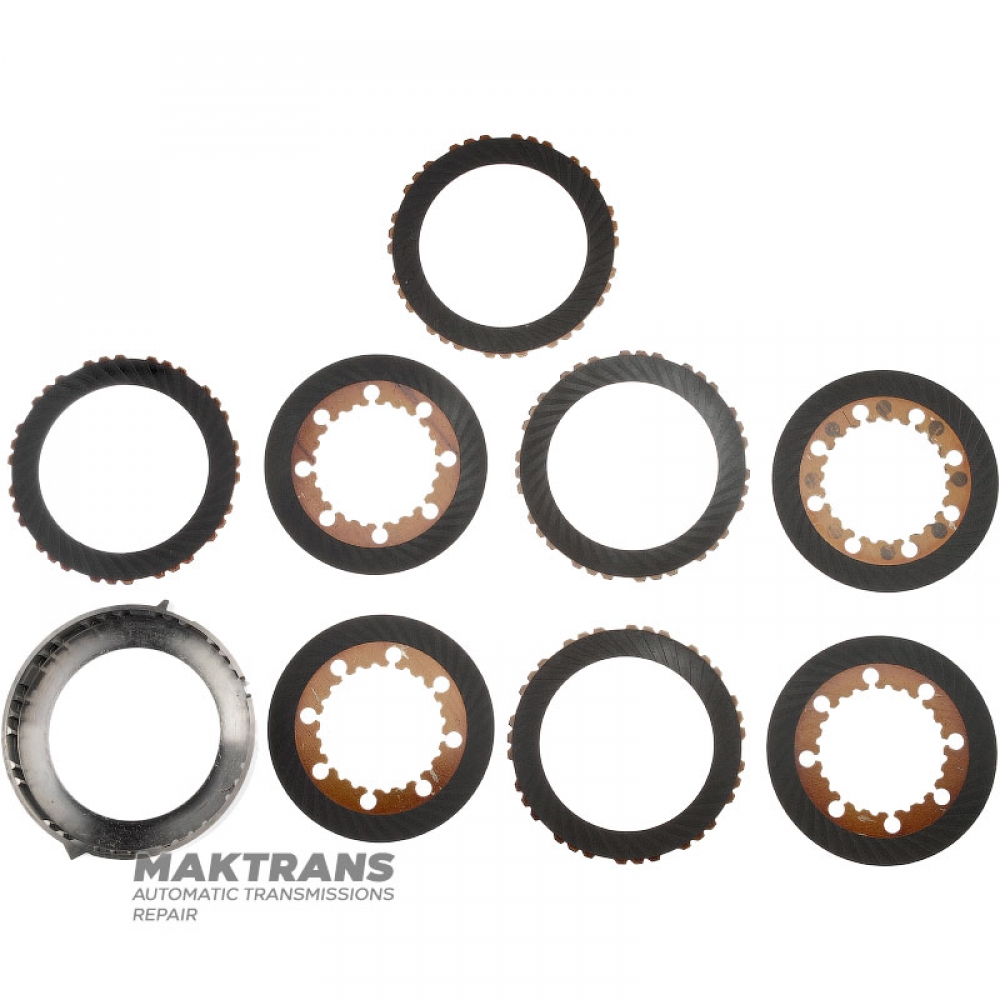

Set of steel and friction discs:


Friction disc (one-sided), with external teeth:

• Thickness - 2.42 mm;
• Inner diameter - 109.75 mm;
• Number of teeth - 33 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc (one-sided), with internal teeth:

• Thickness - 2.40 mm;
• Outer diameter - 144.90 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;
