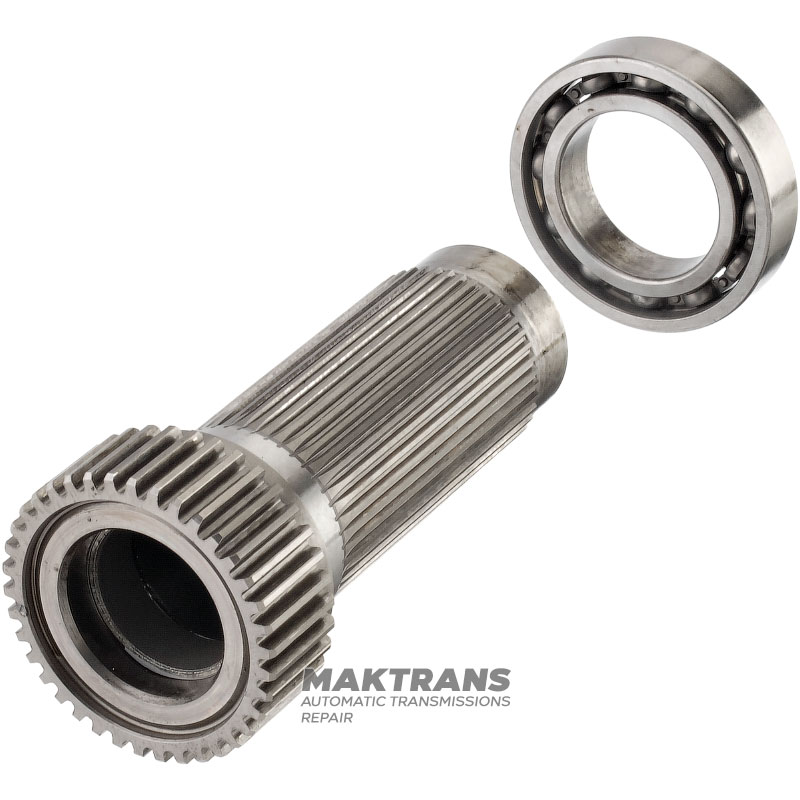

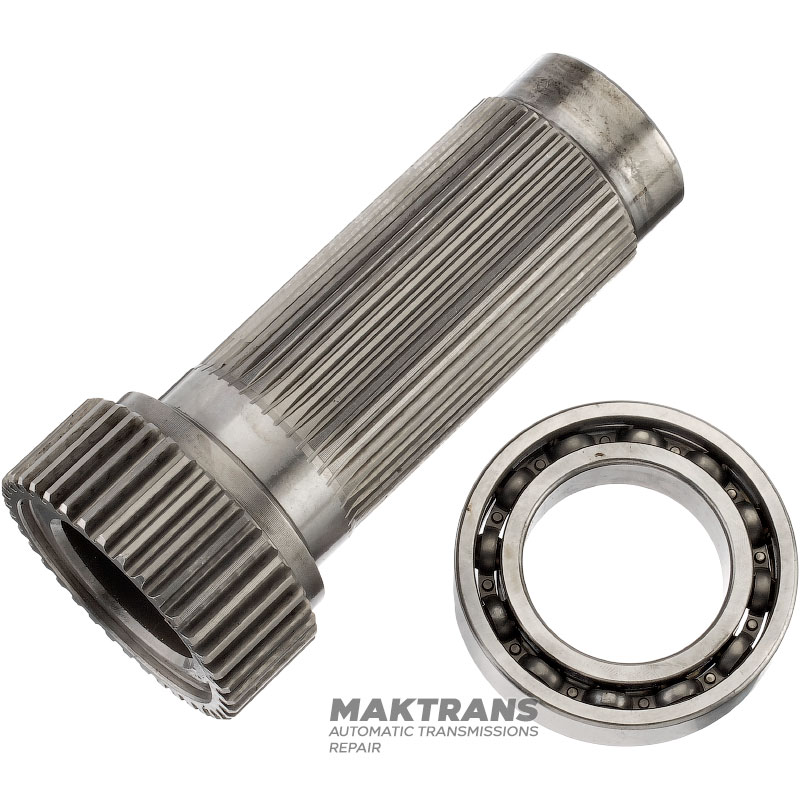

Intermediate shaft, sun gear of the valve train of the transfer case FORD BW4404 - 4404-665-001, length 154 mm, 45 splines (ext.Ø 48.45 mm), 37 teeth on the gear (69.85 mm), F77A-7A195-VA, 44-04-000-005 (95-01 Ford Explorer)

Intermediate shaft with sun gear:

• Overall height - 154 mm;
• Number of splines - 45 pcs.;
• The outer diameter of the splined part is 48.50 mm;
• Inner diameter of the bushing (sun gear side) - 36 mm;
• Number of teeth on the sun gear - 37 pcs.;
• Sun gear outer diameter: 69.75mm;
• Gear width - 26.30 mm;

Ball bearing:

• Width - 16 mm;
• Inner diameter - 45 mm;
• Outer diameter - 75 mm;
• Bearing marking - 6009A1;
