Main Specifications
Condition (used, new):
used and inspected
Type:

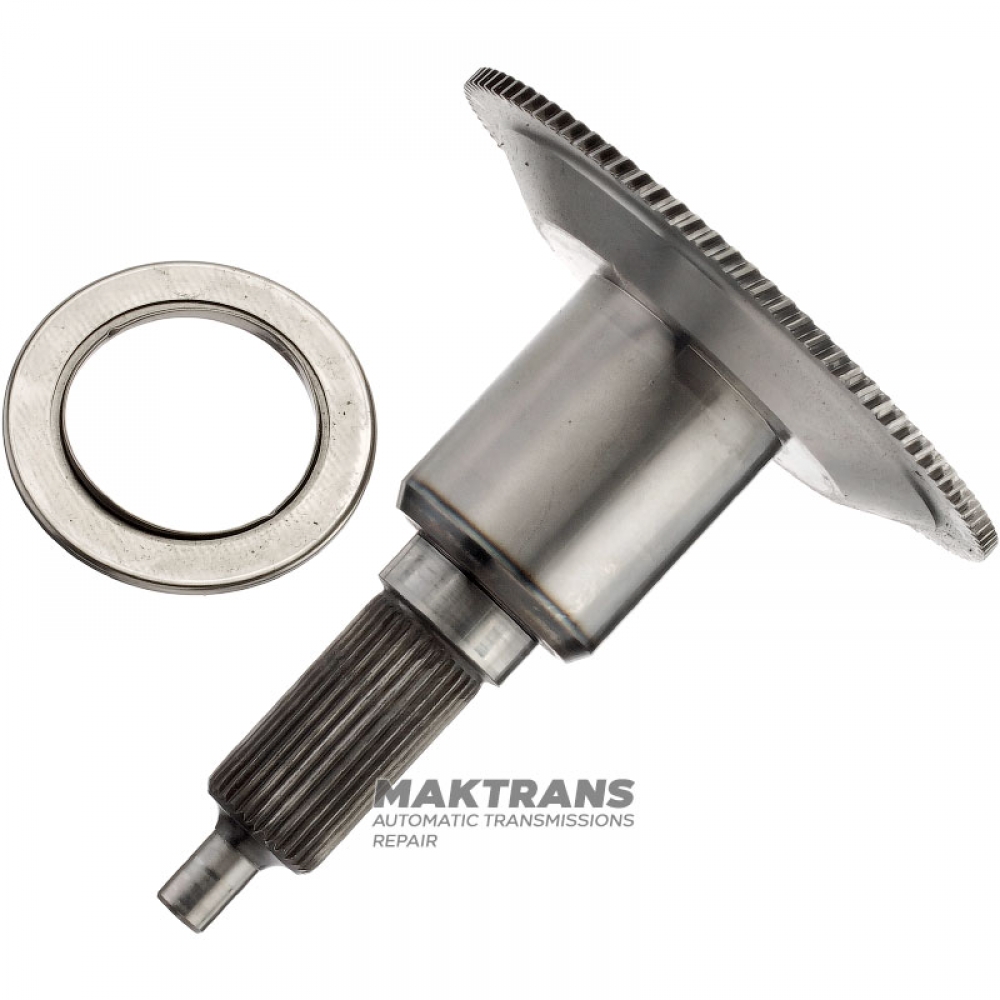

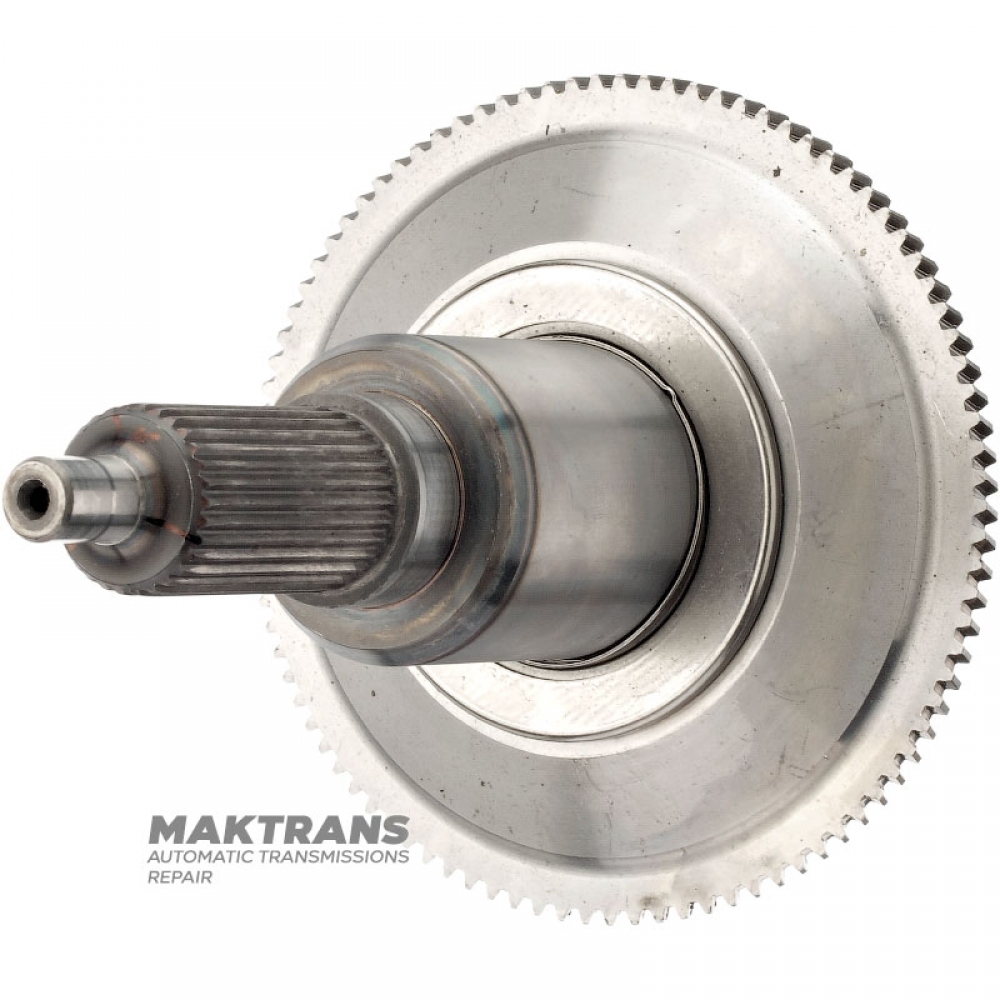

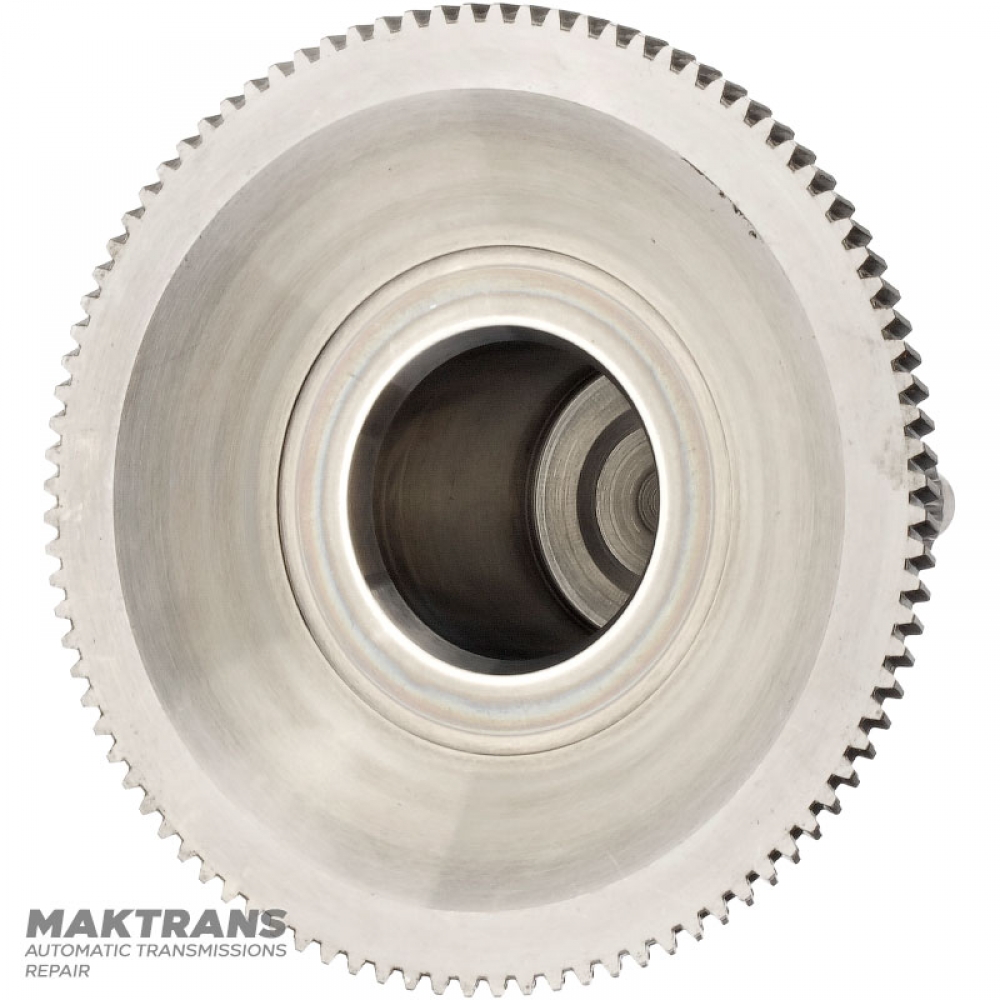

Intermediate shaft, ring gear flange OVERDRIVE
Height (mm):
147 mm
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 2 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (2)
- Overall height - 147 mm;
- Outer diameter of the spout - 11.05 mm;
- Number of splines - 30 pcs.;
- The outer diameter of the splined part is 25.50 mm;
- Outer diameter under splined part - 30 mm;
- The outer diameter of the shaft at the base of the flange is 46.70 mm;
- Number of teeth on the flange - 94 pcs.;
- Flange outer diameter - 126.80 mm;
