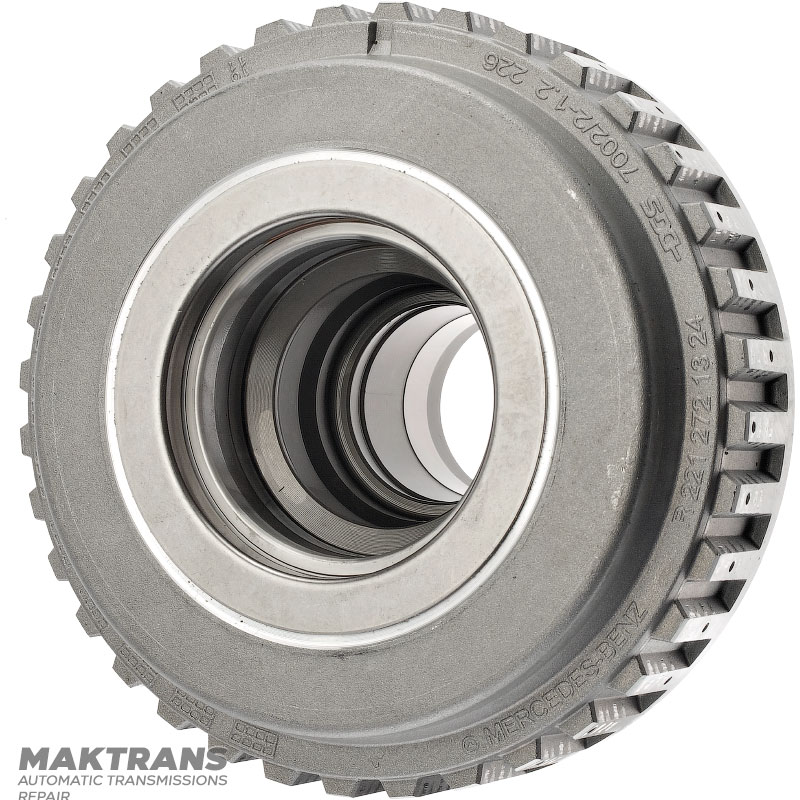

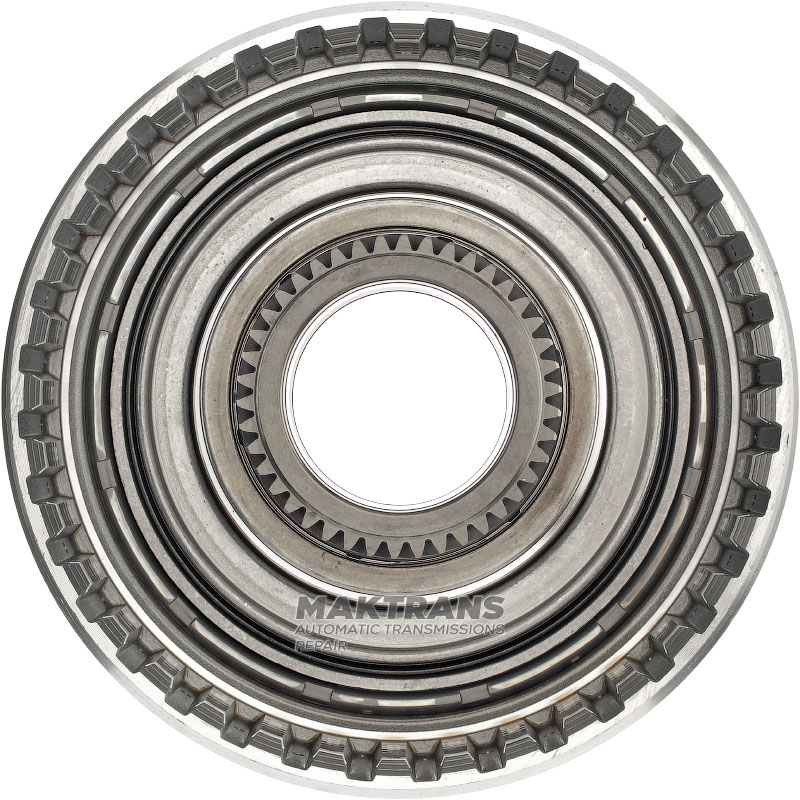

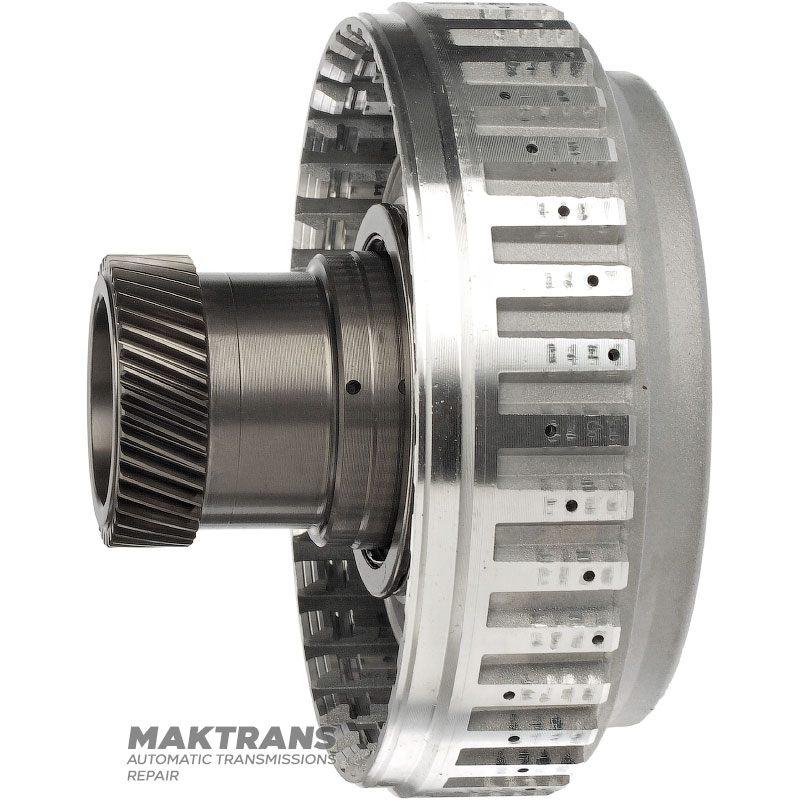

K1 Clutch Drum (Type 1) Mercedes-Benz 722.9 - 5x5 (single-sided friction discs), R2212721324

K1 Clutch Drum:

• Overall height - 114 mm;
• Number of teeth on the gear - 42 pcs.;
• Gear outer diameter: 61.35 mm;
• Height from piston to retaining ring - 26 mm;
• Drum outer diameter - 167.60 mm;

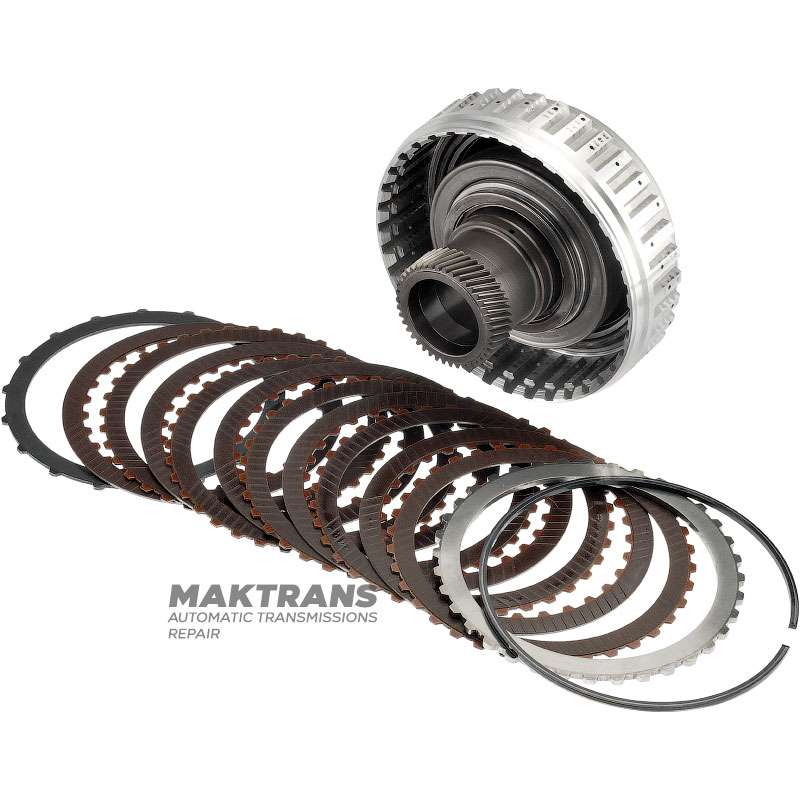

K1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 22.95 mm;

Support disk:

• Thickness - 3.95 mm;
• Inner diameter - 127.65 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc, single-sided (internal teeth):

• Thickness - 1.90 mm;
• Outer diameter - 148.45 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 5 pcs.;

Friction disc, single-sided (external teeth):

• Thickness - 1.90 mm;
• Inner diameter - 127.55 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 1.90 mm;
• Inner diameter - 127.55 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;
