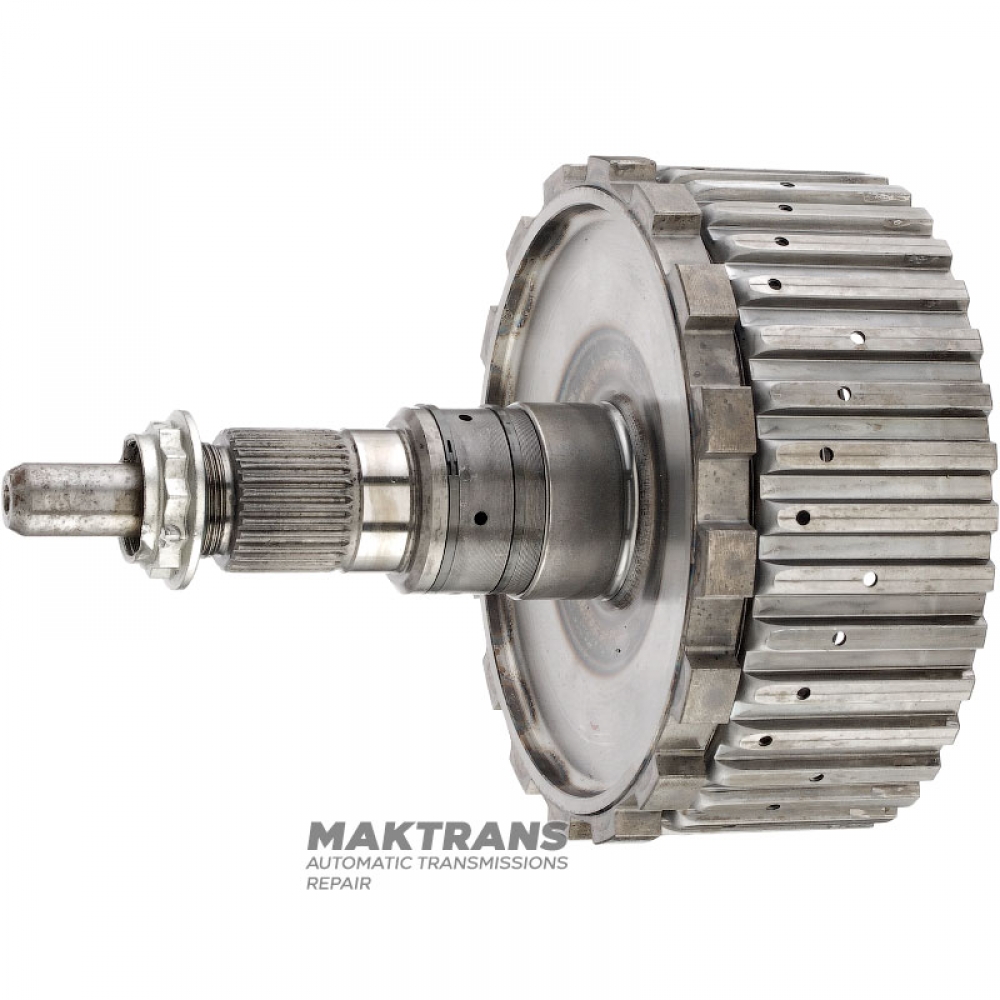

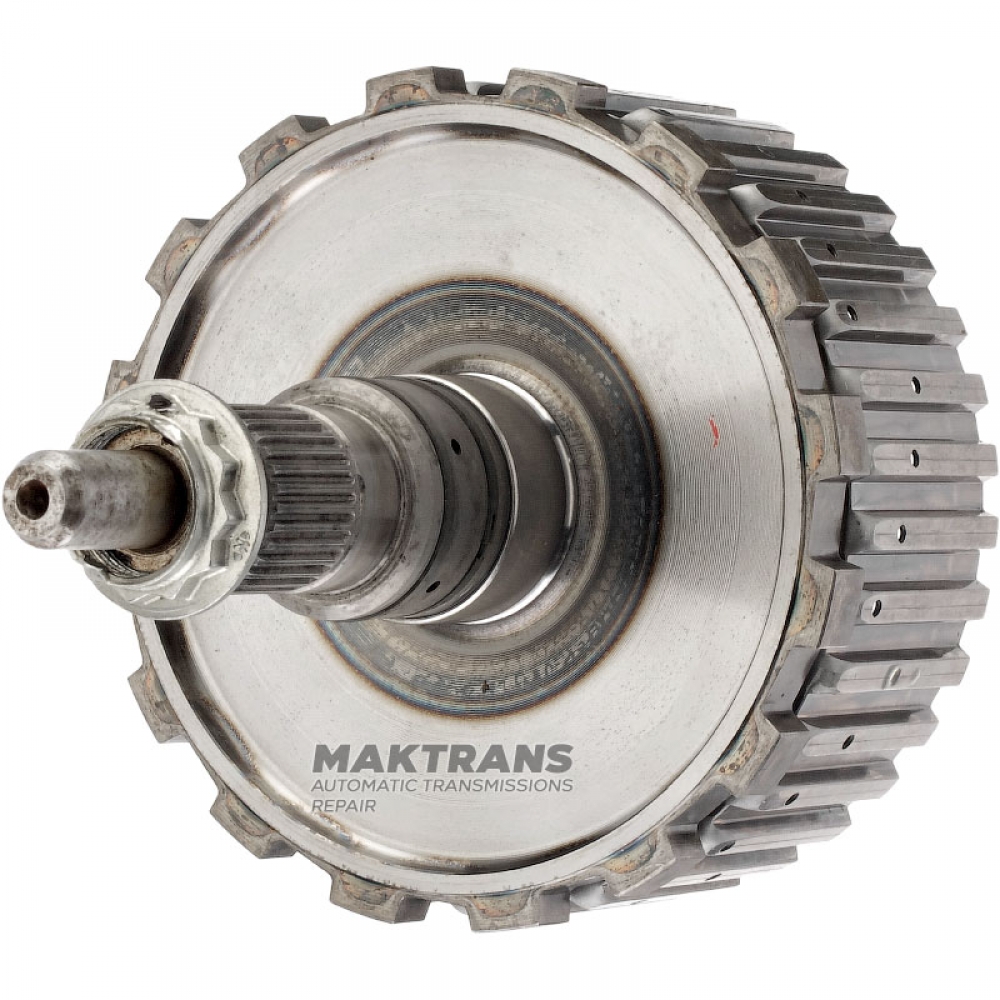

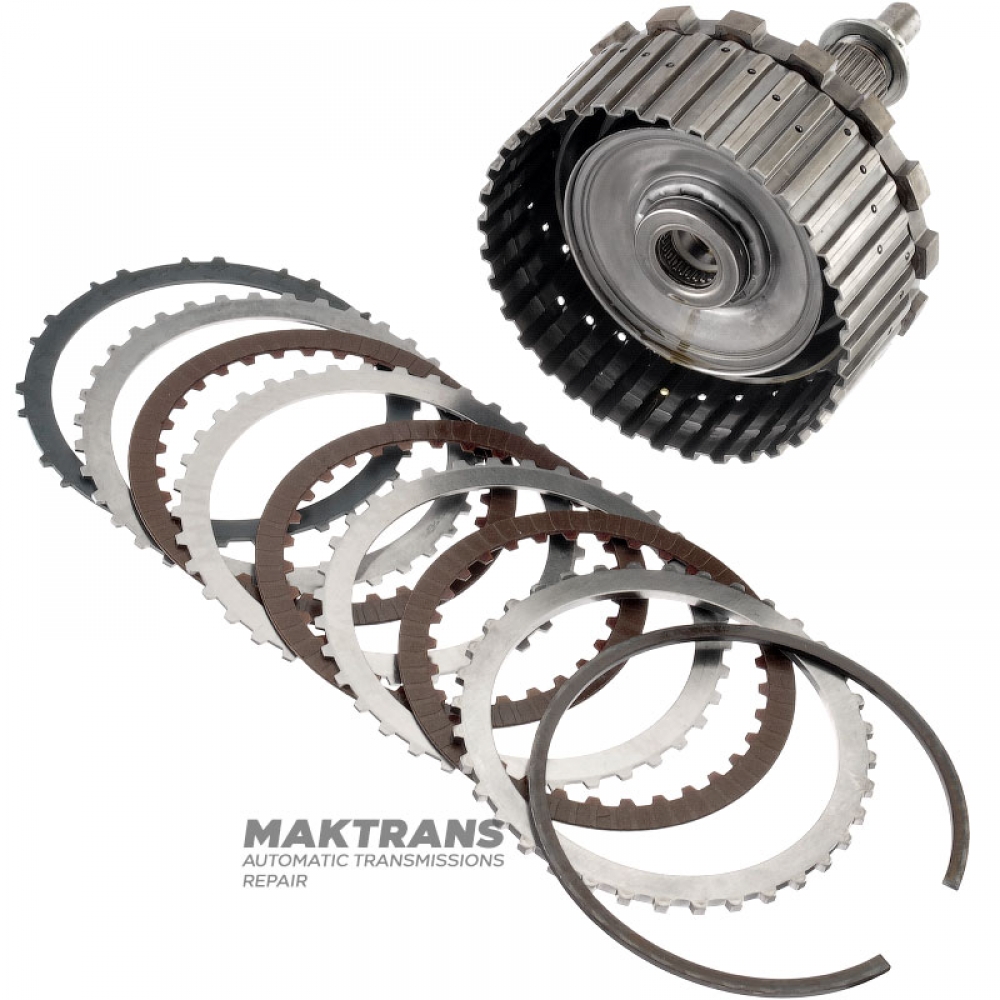

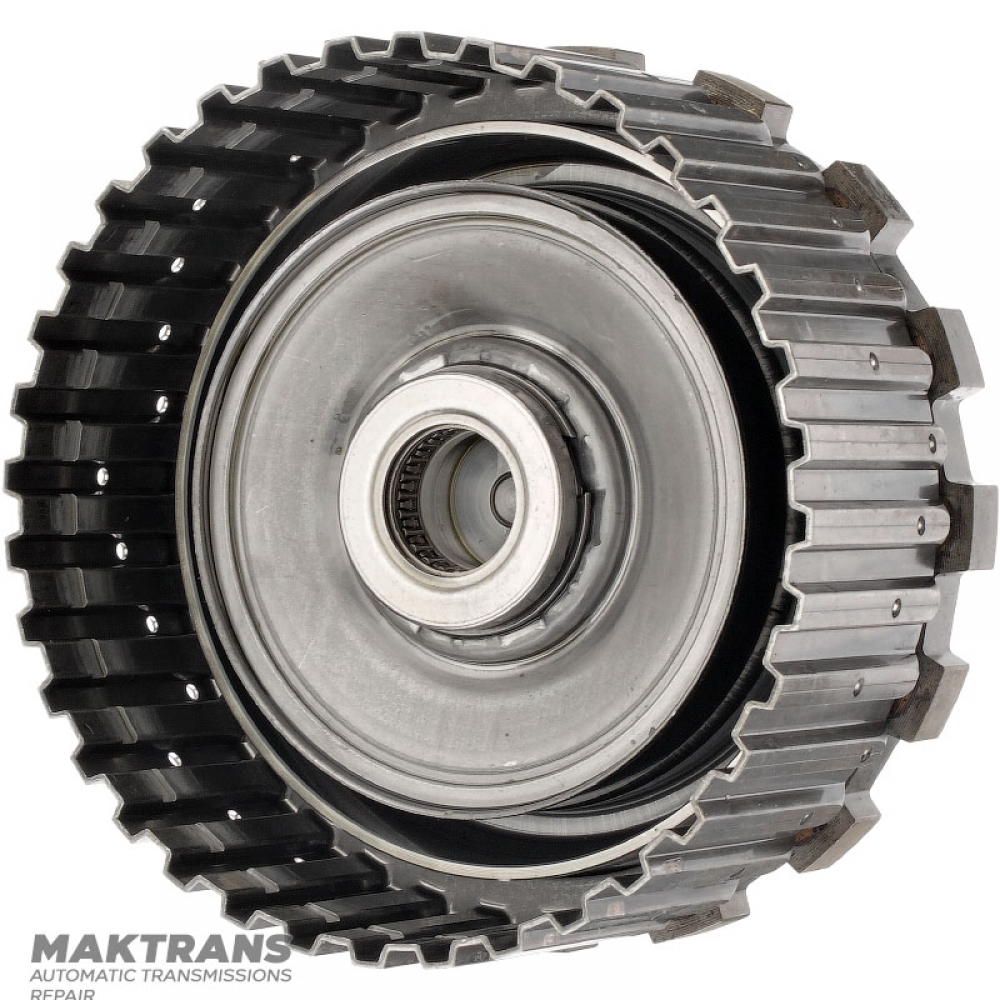

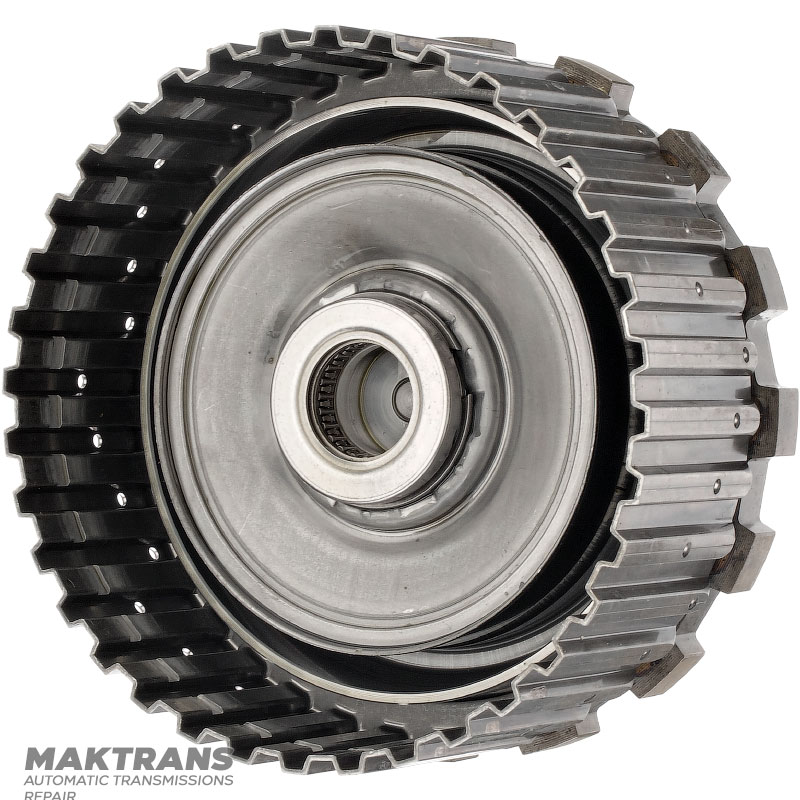

K27 Clutch Drum and Output Shaft (2WD) Mercedes-Benz 725.0 - (overall height 198 mm, 30 splines (ext.Ø 31.65 mm), 3 friction discs)

• Overall height - 198 mm;
• Length of output shaft from base - 138 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the splined part is 31.65 mm;
• Height from piston to retaining ring - 18 mm;

Parking gear:

• Number of teeth - 16 pcs.;
• Outer diameter - 153.85 mm;

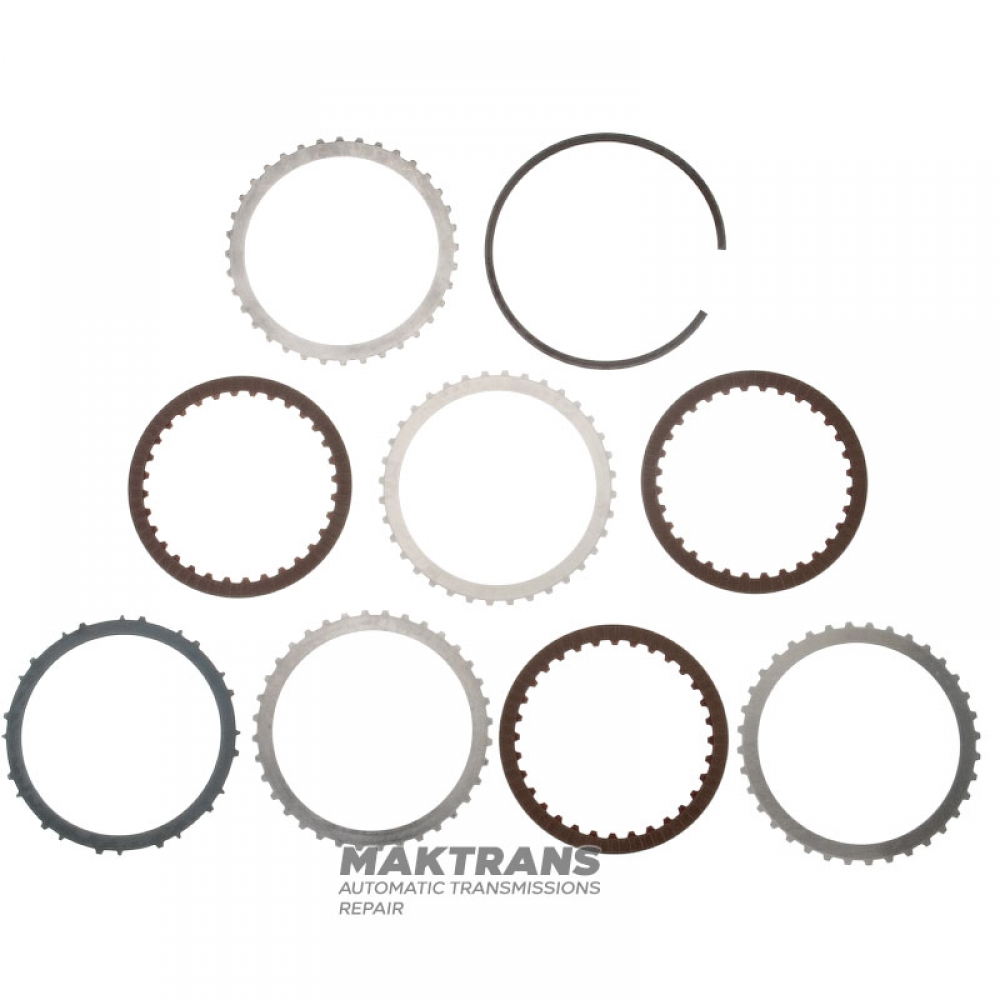

K27 Clutch Steel and Friction Disc Set:

• Total thickness - 16.25 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 120.30 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter - 139.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 120.15 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 3 pcs.;

Spring disc:

• Thickness - 1.70 mm;

Tags: A 725 272 02 41, A 725 272 34 00, A 002 993 29 26, A7252720241, A7252723400, A0029932926
