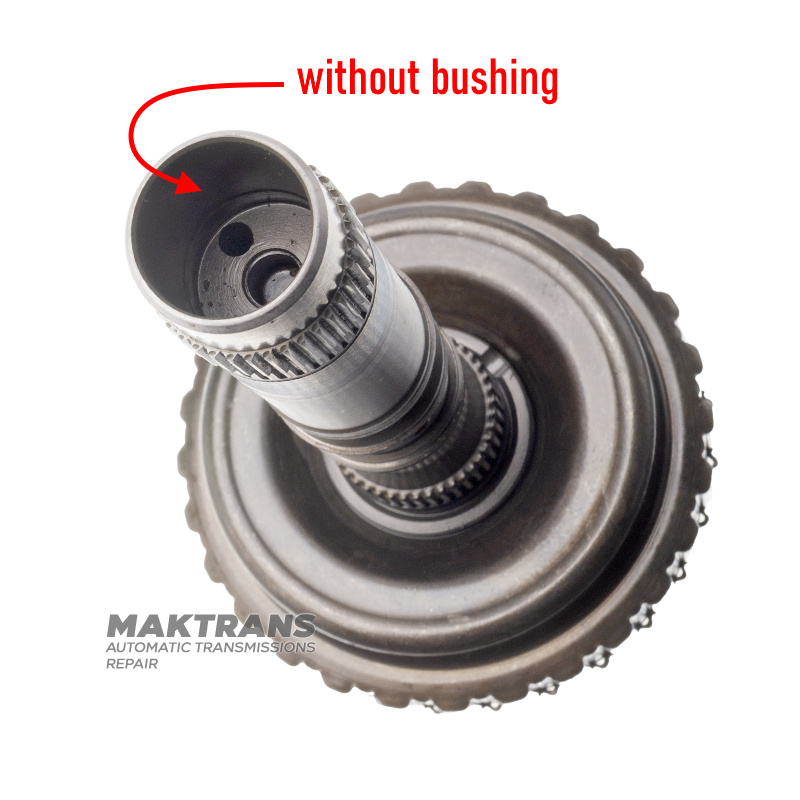

Drum K3 (3-4 Clutch) 01M, 01N, 01P - 5 friction discs, without a bushing on the front inner part

Drum K3:

• Total height - 229 mm;
• Outer diameter of the drum - 113.05 mm;
• Number of splines on the shaft:
• 36 pcs / n.Ø 29.15 mm;
• 42 pcs / outside Ø 34 mm;

Set of steel and friction disks K3 (3-4 Clutch):

• Total thickness of the set is 19.15 mm;

Support disk:

• Thickness - 5.35 mm;
• Inner diameter - 72.25 mm;
• Number of teeth - 28 pcs;
• Number of disks in the set - 1 pcs;

Friction disk:

• Thickness - 1.60 mm;
• Outer diameter - 103 mm;
• Number of teeth - 22 pcs;
• Number of disks in the set - 5 pcs..;

Steel disk:

• Thickness - 1.45 mm;
• Outer diameter - 72.20 mm;
• Number of teeth - 28 pcs;
• Number of disks in the set - 4 pcs;

Pressure disk:

• Thickness - 2.05 mm;
• Number of teeth - 28 pcs;
• Internal diameter - 72.10 mm;
• Number of disks in the set - 1 pcs;

01M323921CX, 01M323921EX, 01M323921G, 01M323921DX

The drum K3  of  01M, 01N, 01P automatic  transmissions  transmits the rotation on 3 and 4 gears. It is equipped with five friction plates K3 095323941C and steel plates  K3. It must be replaced  in case of overheating and strong combustion  of pack K3.

Audi A3 (L4 1.6L, 1.8L, 1.9L), A4 (L4 1.6L, 1.8L, 1.9L), A6 Avant (1.9L, 2.0L, 2.6L), Cabriolet (L4 1.8L, V6 2.6L, 2.8L)

Volkswagen Beetle (L4 1.4L, 1.6L, 1.8L, 1.9L, 2.0L), Bora (L4 1.6L, 1.8L, 1.9L, 2.0L), Golf/ GTI (L4 1.8L, 1.9LD, 2.0L, V6 2.8L), Jetta (L4 1.8L, 1.9L, 2.0L, V6 2.8L), Passat (L4 1.9L, 2.0L, V6 2.8L), Polo (L4 1.4L, 1.6L), Caravelle, Eurovan (V6 2.8L), Sharan (L4 1.9L, 2.0L), Transporter (L4 2.0L L5 2.4L V6 2.8L)

Skoda Octavia (L4 1.6L, 1.8L, 1.9L, 2.0L)

Tags: 01M323921CX, 01M323921EX, 01M323921G, 01M323921DX
