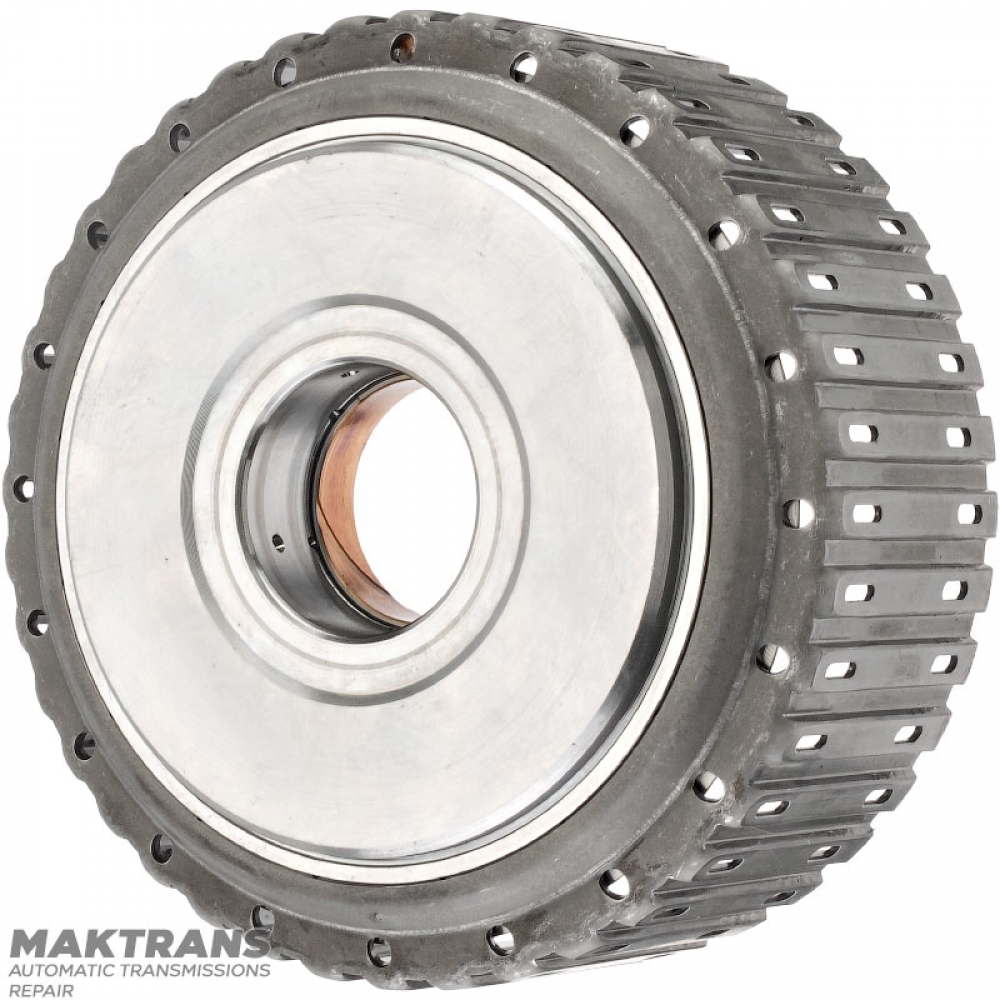

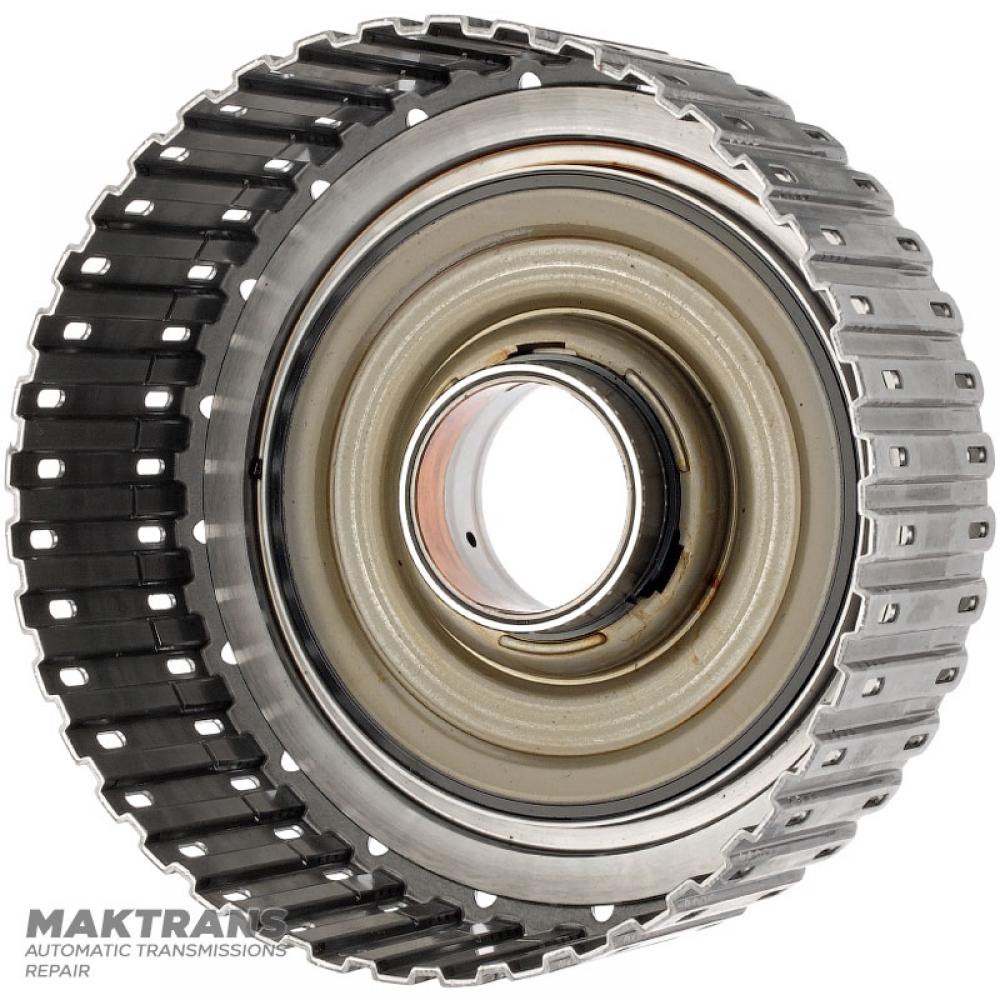

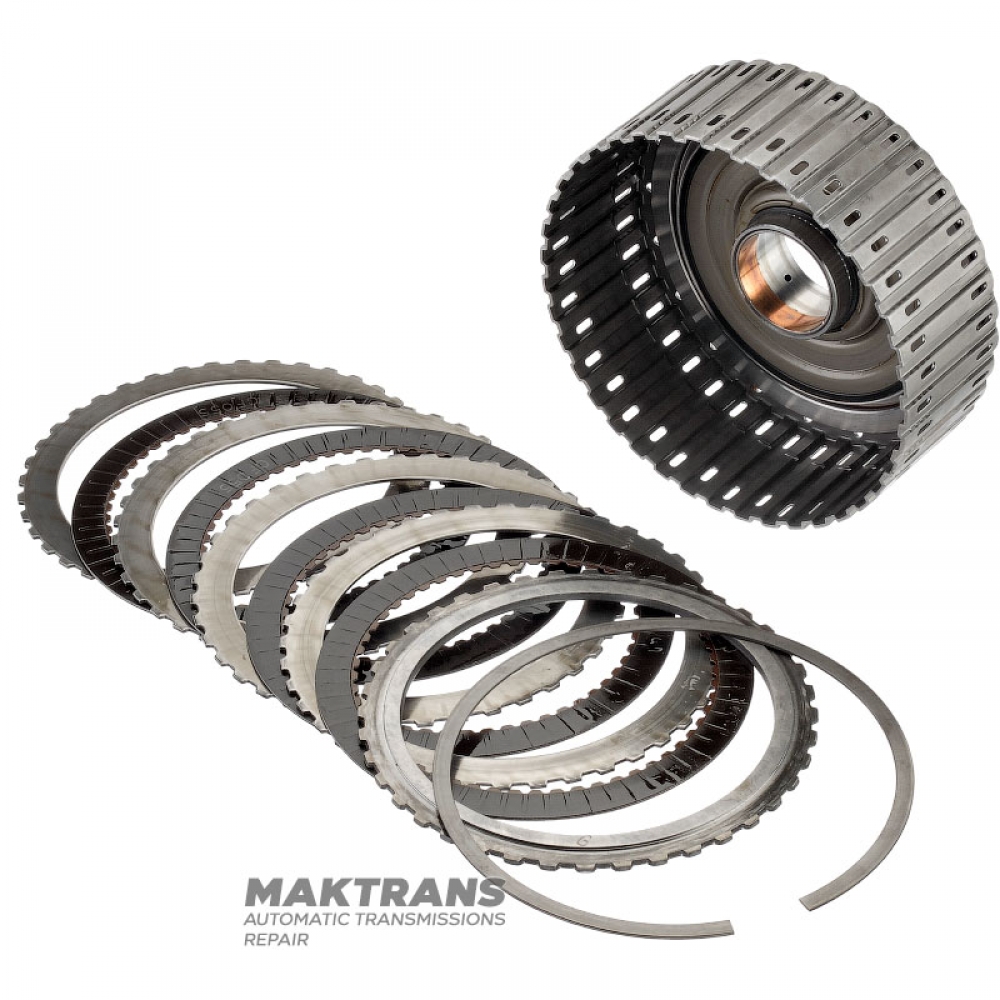

K3 Clutch Drum (assembled) AW TF-60SN 09M, 09K, 09G - 4 friction discs, 6 mm pitch (oil pump side)

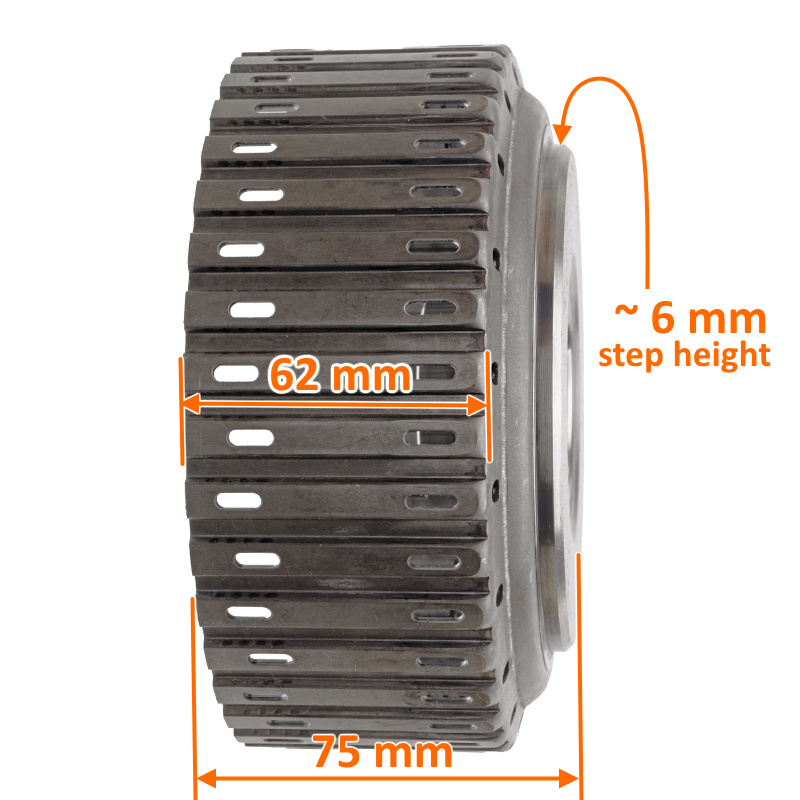

K3 Clutch Drum:

• Total drum height - 75 mm;
• Drum outer diameter - 166.45 mm;
• The height of the stamped basket is 62 mm;

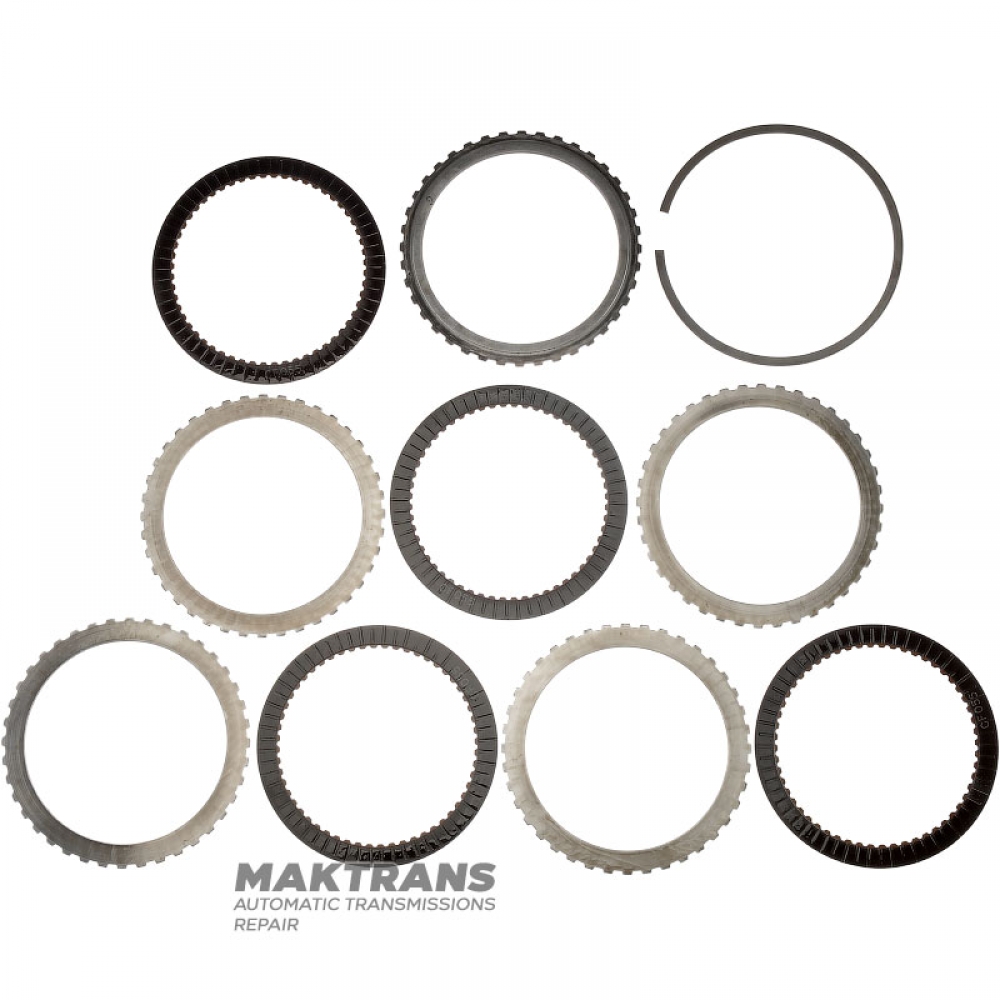

K3 Clutch Steel and Friction Disc Set:

• Total thickness of the set - 16.75 mm / 18 mm;
• Height from piston to retaining ring - 18 mm;

Support disk:

• Thickness - 4 mm / 2.65 mm;
• Inner diameter - 130.75 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 157 mm;
• Number of teeth - 56 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 130.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;
