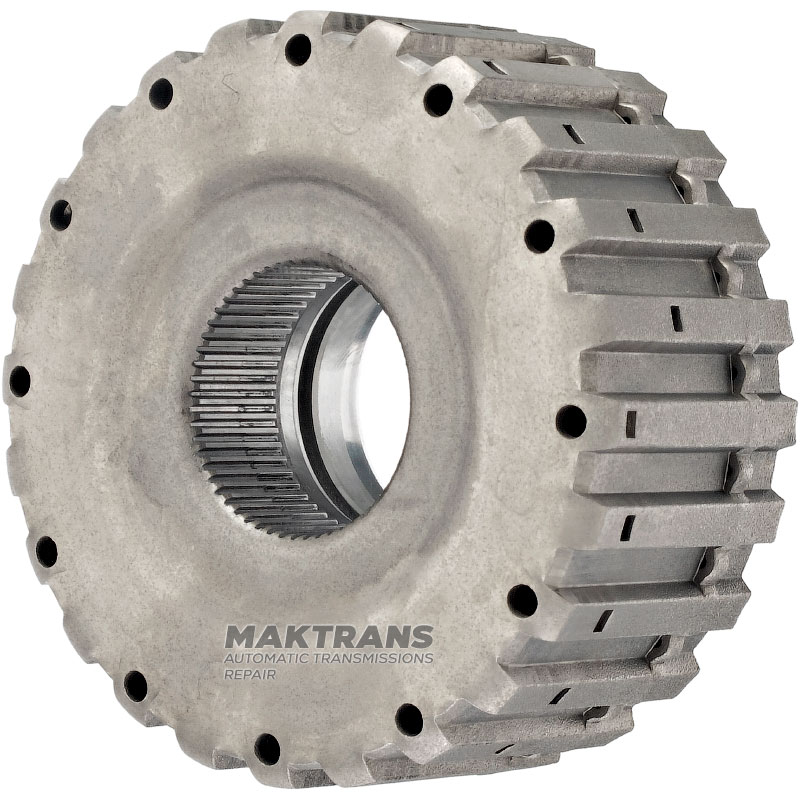

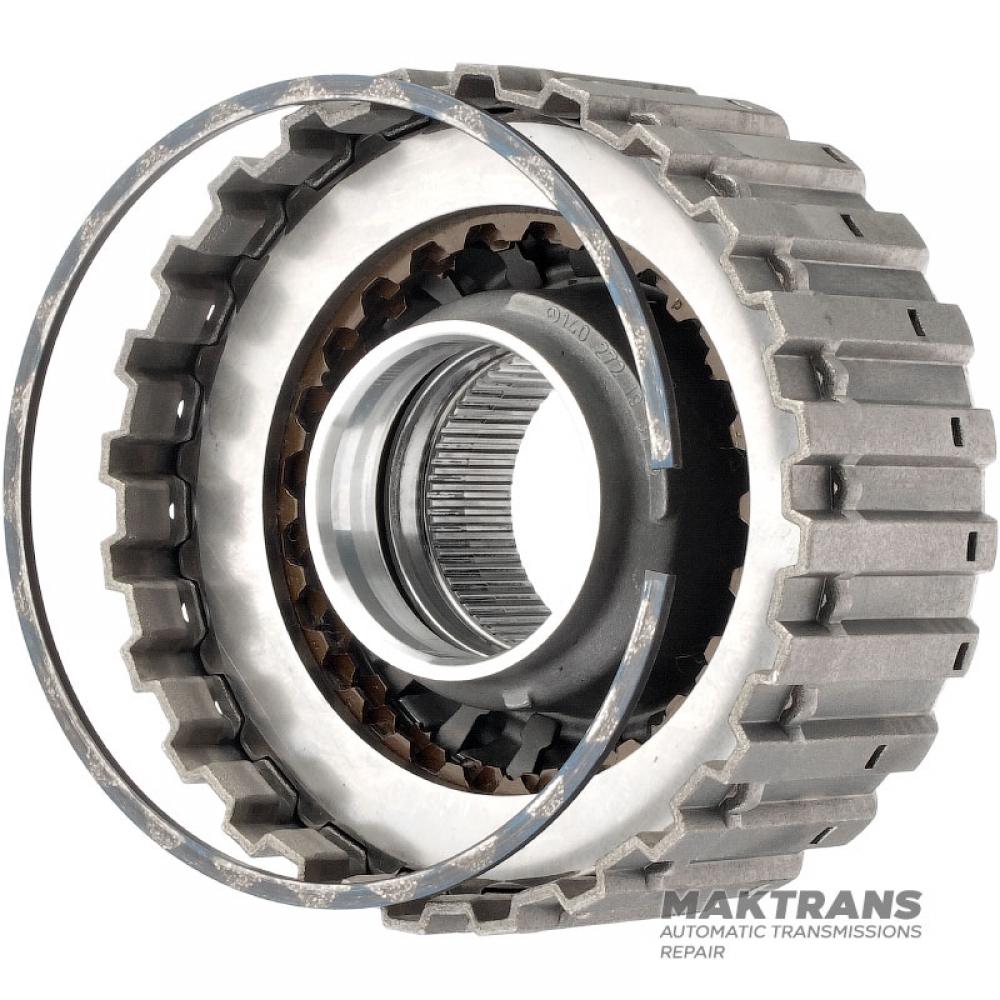

K3 Clutch Drum Mercedes-Benz 722.6 A1402721931 - 6 single-sided friction discs (total thickness of the set 16.10 mm)

• Total drum height - 56.80 mm;
• The outer diameter of the drum is 128.30 mm;
• Number of splines on the inner side of the drum - 56 pcs.;
• Height from piston to retaining ring - 19 mm;
• Height from top edge to retaining ring - 11 mm;

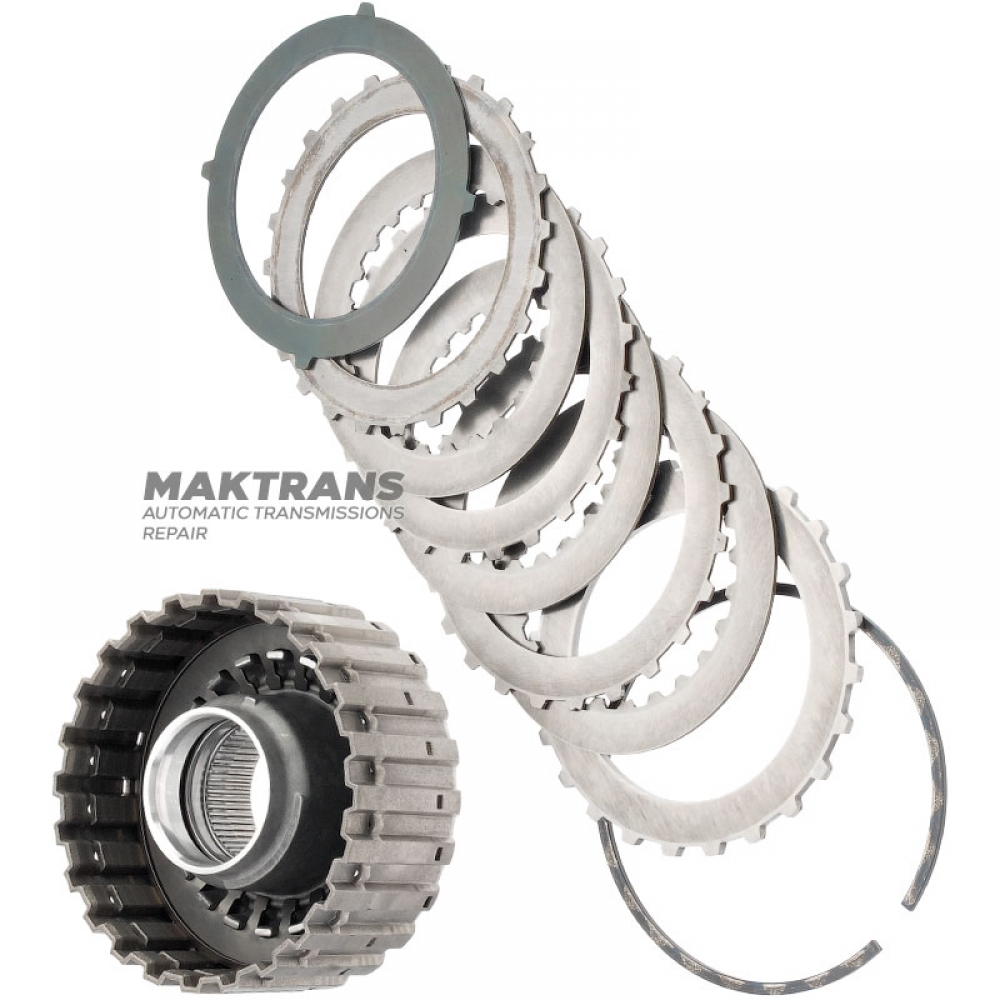

K3 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 16.10 mm;

Pressure disc:

• Thickness - 3.95 mm;
• Inner diameter - 88.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc (single-sided, internal teeth):

• Thickness - 2.05 mm;
• Outer diameter - 114 mm;
• Number of teeth - 25 pcs.;
• Number of discs in the set - 3 pcs.;

Friction disc (external teeth):

• Thickness - 2 mm;
• Inner diameter - 88.60 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;

Spring disc:

• Thickness - 1.75 mm;
• Inner diameter - 87.90 mm;
• Number of teeth - 4 pcs.;
• Quantity in the set - 1 pc.;

Tags: A 140-272-0725 A-140-272-0725 A1402720725 A1402721931 A 220 270 23 28 A 220 270 31 28 A2202702328 A2202703128 A-220-270-23-28 A-220- 270-31-28
