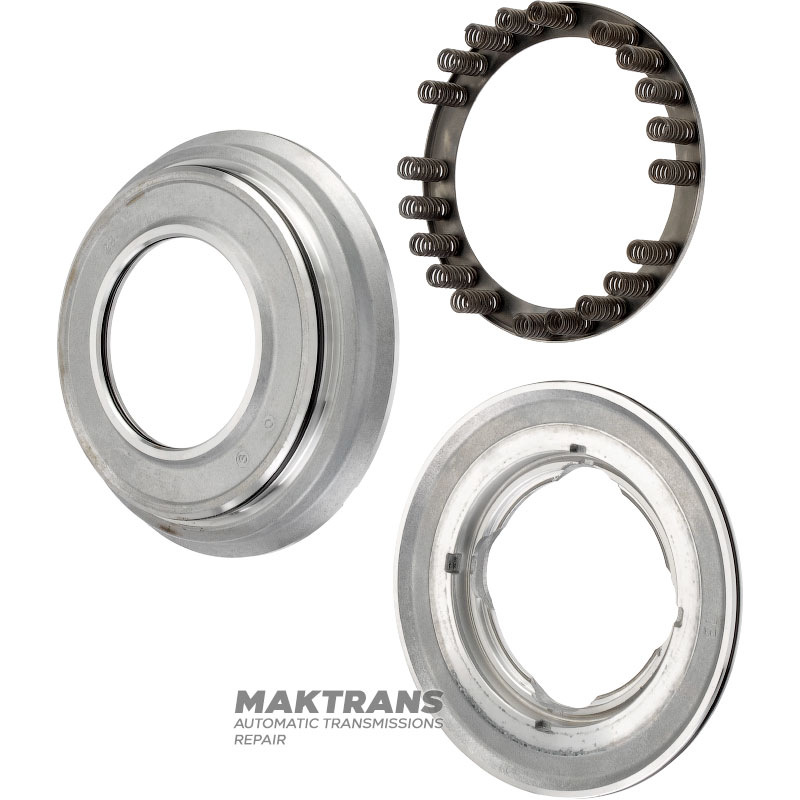

K3 Clutch Piston Aisin Warner TR-60SN / VAG 09D - complete with return spring

Centering piston:

• Height - 17 mm;
• Outer diameter - 139.05 mm;
• Inner diameter - 73.95 mm;

Return spring block:

• Overall height - 20.35 mm;
• Outer case diameter - 115.95 mm;
• Inner case diameter - 92.55 mm;

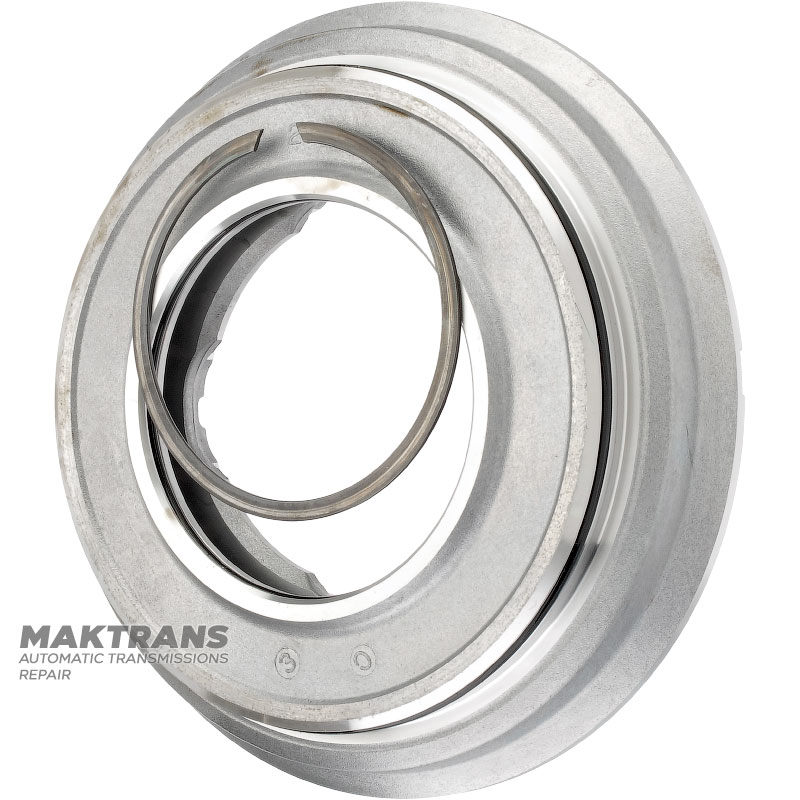

Piston:

• Overall height - 33 mm;
• Outer diameter - 159.40 mm;
• Outer diameter of rubber ring - 129.20 mm;
• Inner diameter - 77.20 mm;
