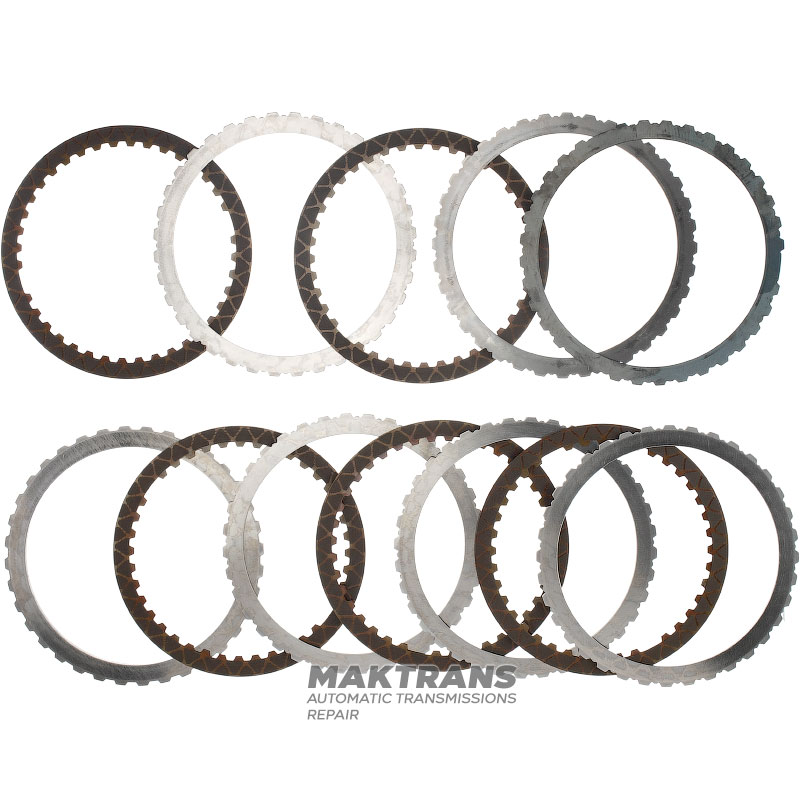

Steel and friction plate kit, package B automatic transmission ZF 8HP45 09-up

Set of steel and friction discs, package B Clutch ZF 8HP45 09-up

• The total thickness of the bag is 25.75 mm.

Support disk:

• Thickness - 5.19 mm.
• Inner diameter - 154.80 mm
• The number of teeths is 36 pcs.
• The number of discs in the set is 1 pcs.

Steel disc:

• Thickness - 1.80 mm.
• Inner diameter - 154.80 mm
• The number of teeths is 36 pcs.
• The number of discs in the set is 5 pcs.

Friction disk:

• Thickness - 2.05 mm.
• Outside Diameter - 178 mm
• The number of teeths is 38 pcs.
• The number of discs in the set is 5 pcs.

Spring Disc:

• Thickness - 0.95 mm.
• Inner Diameter - 158 mm
• The number of teeths is 33 pcs.
• The number of discs in the set is 1 pcs.
