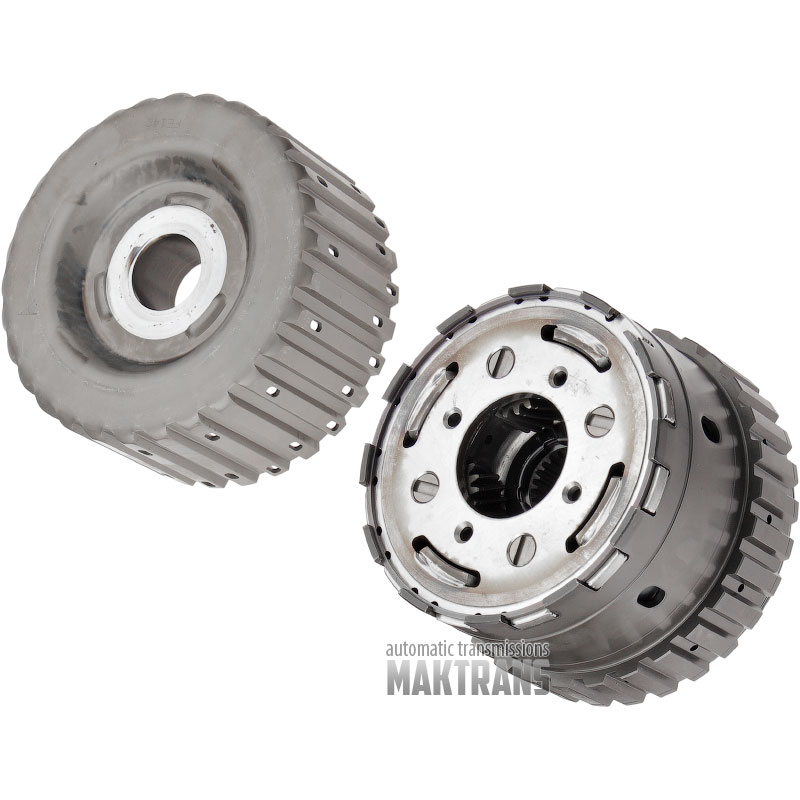

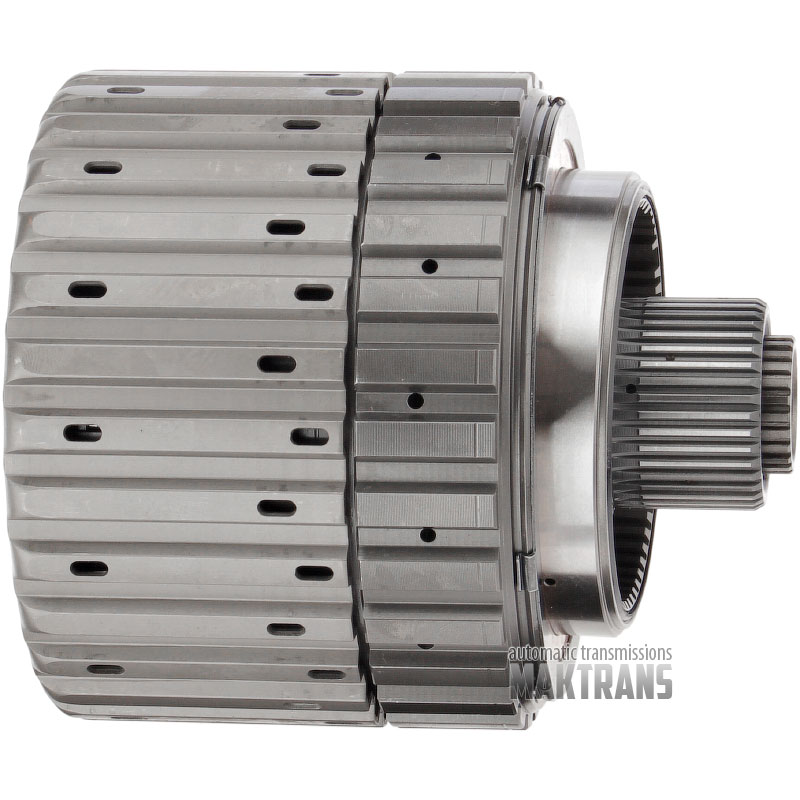

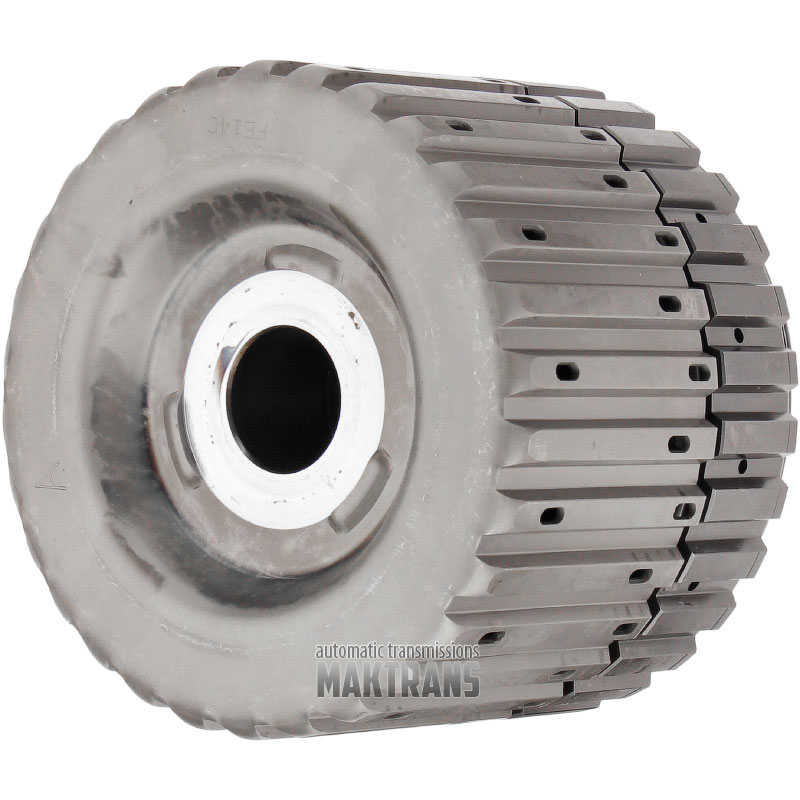

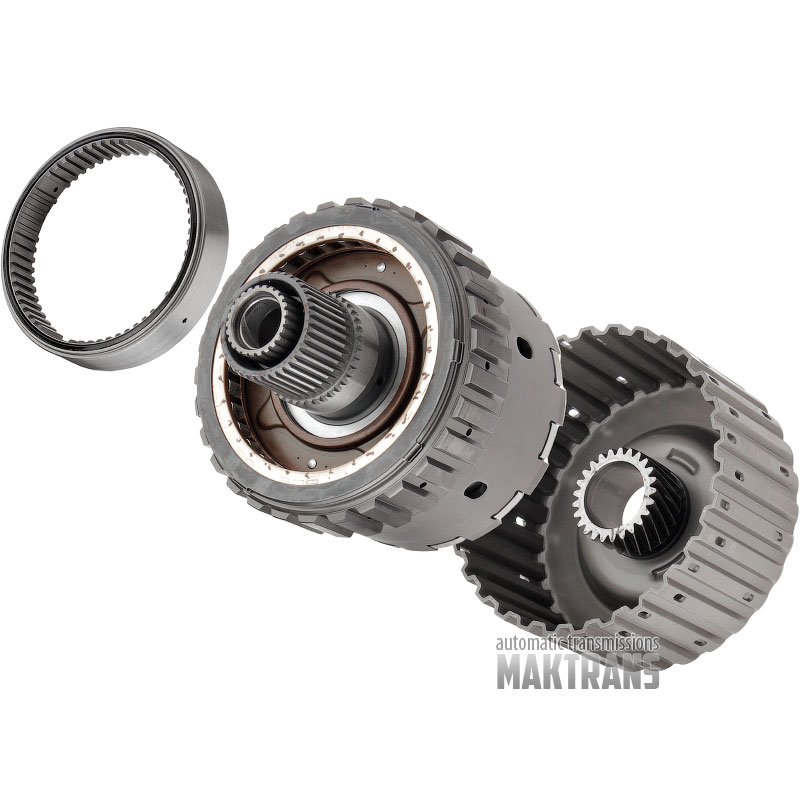

Planetary gearset Output / Overdrive Planet HYUNDAI / KIA A5GF1

Overrunning clutch inner race:

• Outer diameter - 89.85 mm;
• Width - 19.80 mm;

Output Planet Ring Gear:

• Total height - 87 mm;
• Outer diameter along the outer ring gear - 126.90 mm;
• Number of teeth - 70 pcs.;

Output Planet:

• Total height - 114 mm;
• The number of splines on the neck is 39 pcs.;
• The outer diameter of the spline part is 40.95 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 15 pcs.;
• The number of satellites on the Overdrive ring gear is 67 pcs.;
• The outer diameter of the ring gear of the Overdrive planetary gear is 106.50 mm;

Output Planet Sun Gear :

• Total height - 90 mm;
• Outer shaft diameter - 29.45 mm;
• Number of splines on the shaft - 25 pcs.;
• The outer diameter of the spline part is 26.70 mm;
• Number of sun gear teeth - 42 pcs.;
• The outer diameter of the sun gear is 59.85 mm;

Planetary Overdrive:

• Total height - 51 mm;
• Outer diameter along the gear ring - 115.15 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 21 pcs.;
• Number of notches on the satellite - 2 pcs.:

Overdrive Planet Sun Gear:

• The total height of the drum is 64 mm;
• Drum outer diameter - 126.80 mm;
• The number of teeth on the gear is 25 teeth;
• Gear outer diameter - 39.95 mm;

Tags: 457903A200 457513A200 457963A200 457603A201 4574339000 457933A200 458903A201
