ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]

ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]
ZF 4HP16 Planetary Kit [Front Planetary (Front Planetary satellites (20 Teeth), Rear Planetary Gear 4 satellites (25 Teeth)]

Worldwide Shipping 🌎

  • Brand: ZF
  • Product Code: 4HP16-PLN-GS
    Product model copied to clipboard
  • Weight (kg): 7.2
  • Availability: 20
$189.00
Main Specifications
Condition (used, new): removed from new transmissons
Type: planetary gear set
If you order more than 3 pcs - shipping time will be longer at few days
Stock Place: Availability: Price: Qty:
Poland 3 pcs. $189.00
Add to cart
Add to cart
Ukraine 17 pcs. $189.00
Add to cart
Add to cart
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)

Front planetary :

  • Overall height - 67 mm;
  • Number of satellites - 4 pcs;
  • The number of teeth on the satellite - 20 pieces;
  • Outer diameter (along the ring gear) - 119.95 mm;
  • The number of teeth of the ring gear of the rear planetary gear - 86 pcs;

Front planetary sun gear:

  • Overall height - 24.65 mm;
  • Outer diameter - 52.70 mm;
  • Number of teeth - 38 pcs;
  • The number of splines on the inside - 34 pcs;

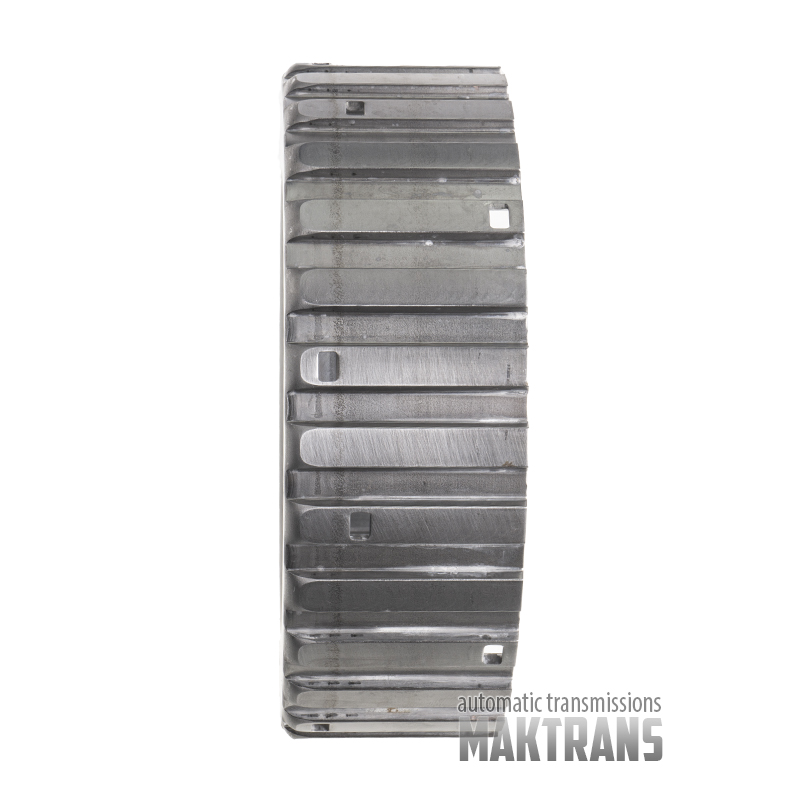

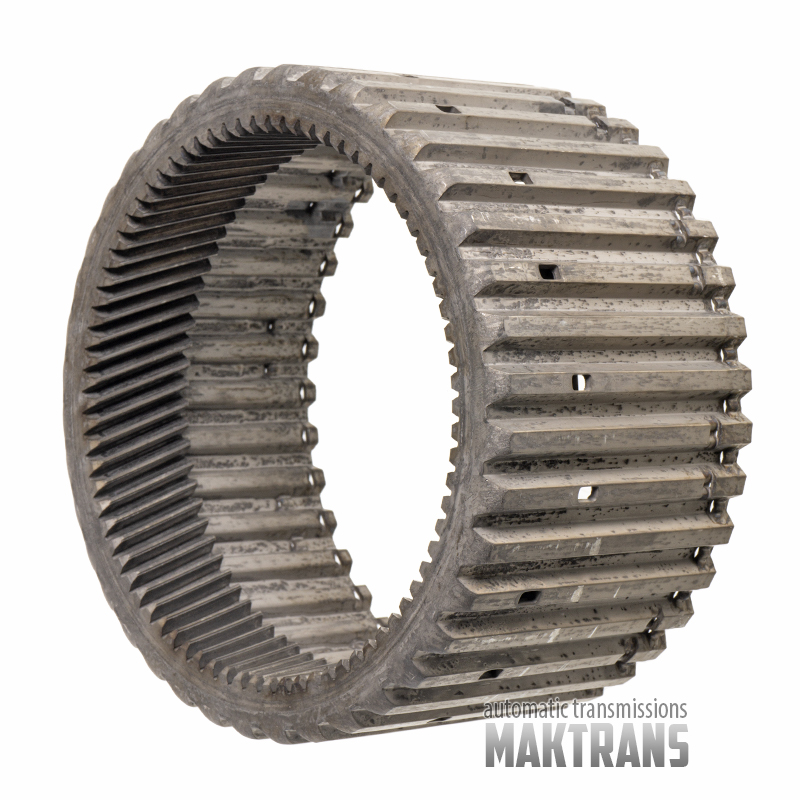

Front planetary ring gear:

  • Overall height - 69.90 mm;
  • Outer diameter - 130.75 mm;
  • Number of teeth - 78 pcs;

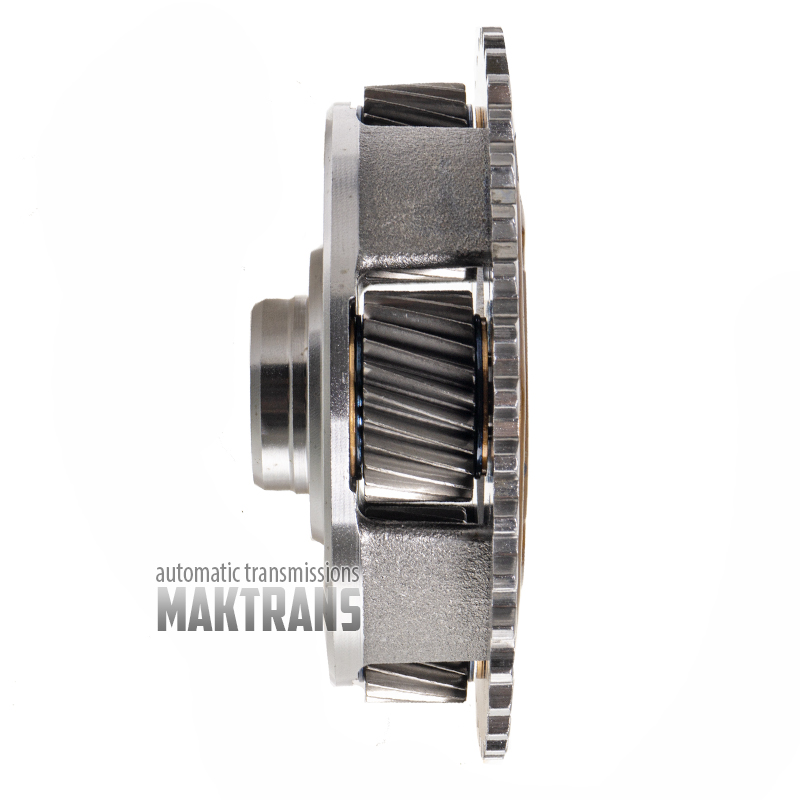

Rear planetary gear:

  • Overall height - 47 mm;
  • Number of satellites - 4 pcs;
  • The number of teeth on the satellite - 25 pieces;
  • The number of splines on the inside - 34 pcs;
  • Number of teeth on the ring gear - 40 pcs;
  • The outer diameter of the ring gear - 127.40 mm;

sun gear:

  • The total height of the hub is 44.40 mm;
  • Hub outer diameter - 140.15 mm;
  • Number of teeth - 34 pcs;
  • The outer diameter of the gear is 45.15 mm;
