Main Specifications
Condition (used, new):
new
Spare part number(s):
If you order more than 20 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 20 pcs. |
  |
| Ukraine | 36 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (6)

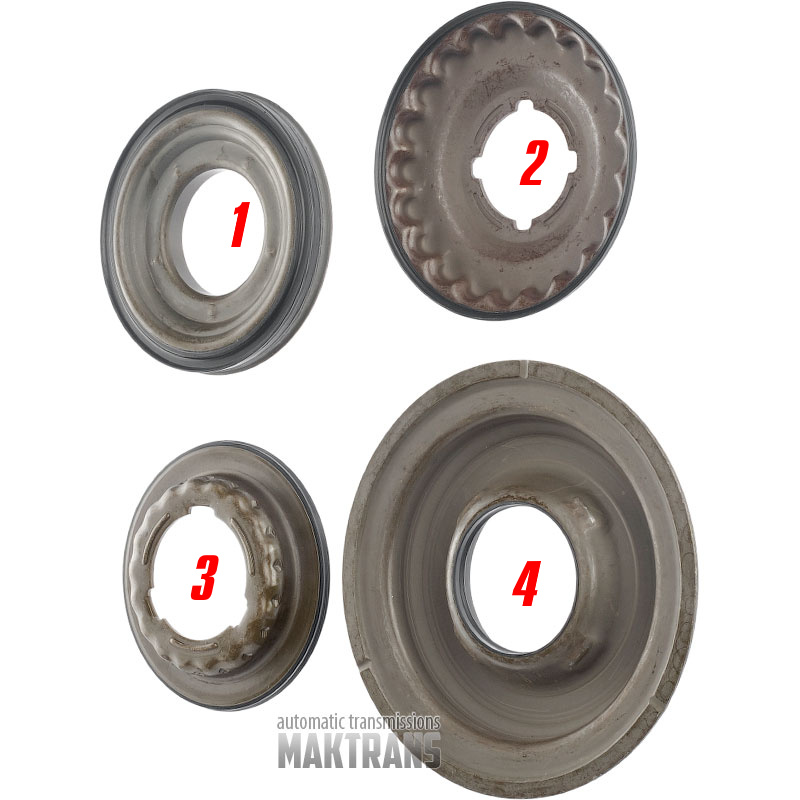

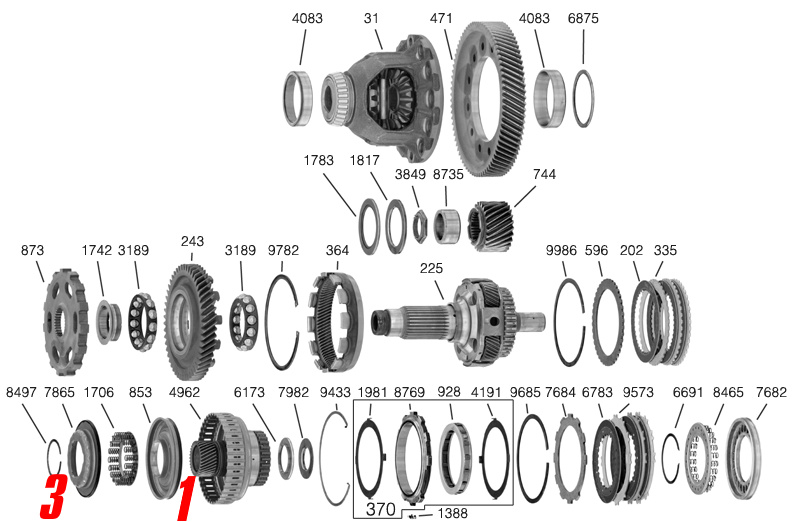

Underdrive Brake Piston (#1 in photo):
- Overall height - 17 mm;
Height of the working part of the piston - 12.45 mm; - Outer diameter of the rubberized part - 110.60 mm;
- Inner diameter - 49.60 mm;

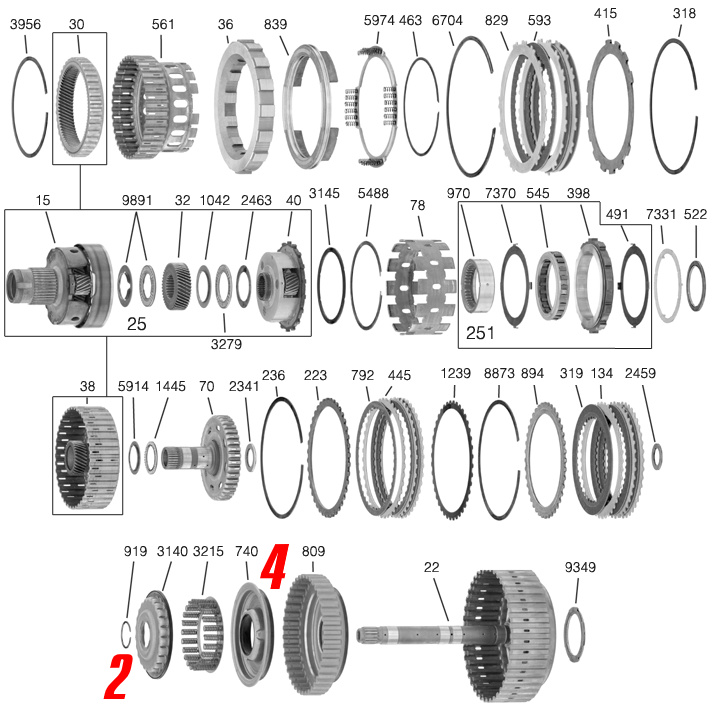

Underdrive Brake counter piston (#3 in photo):
- Overall height - 18 mm;
- Outer diameter of the rubberized part - 106 mm;
- Inner diameter - 49 mm;
Direct Clutch Piston (#4 in photo):
- Overall height - 19 mm;
- Outer diameter - 156.75 mm;
- Outer diameter of the rubberized part - 120.80 mm;
- Inner diameter - 52.25 mm;
Direct Clutch Counter Piston (#2 in photo):
- Overall height - 18 mm;
- Outer diameter of the rubberized part - 115.90 mm;
- Inner diameter - 40.35 mm;
  |
  |
