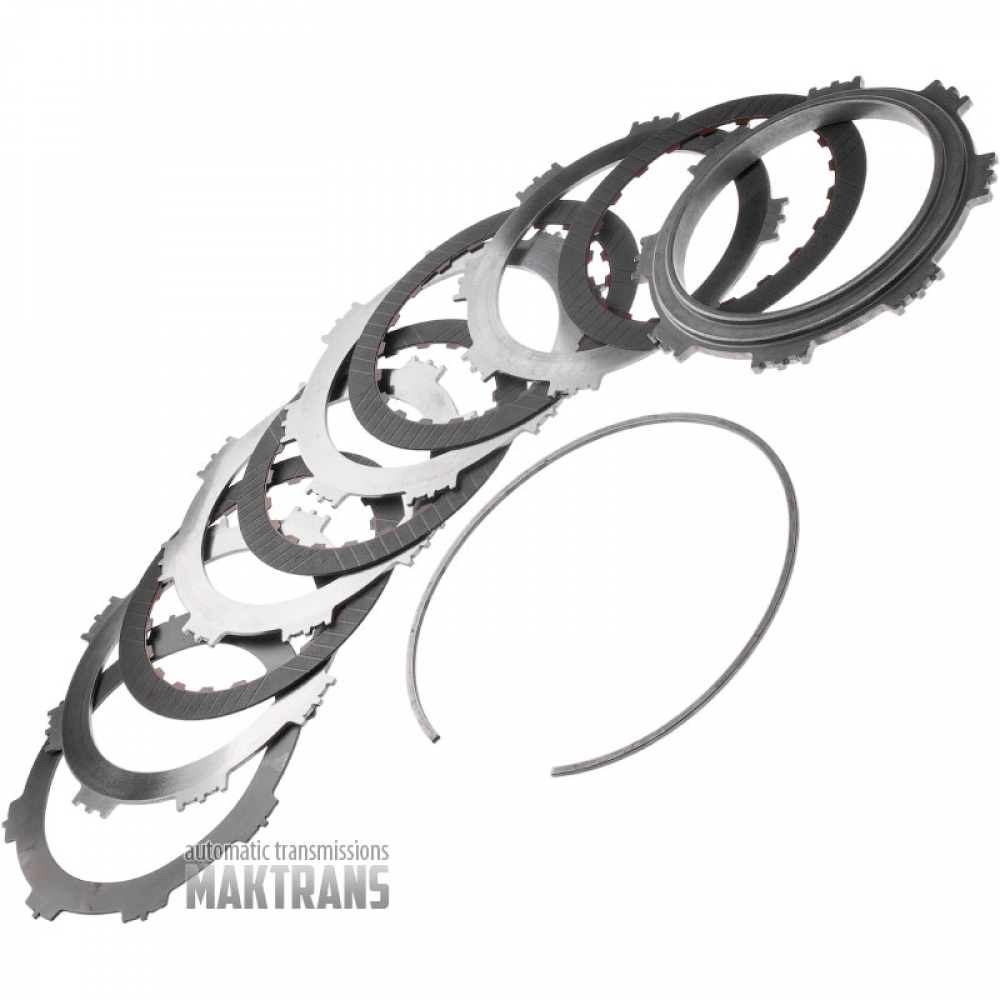

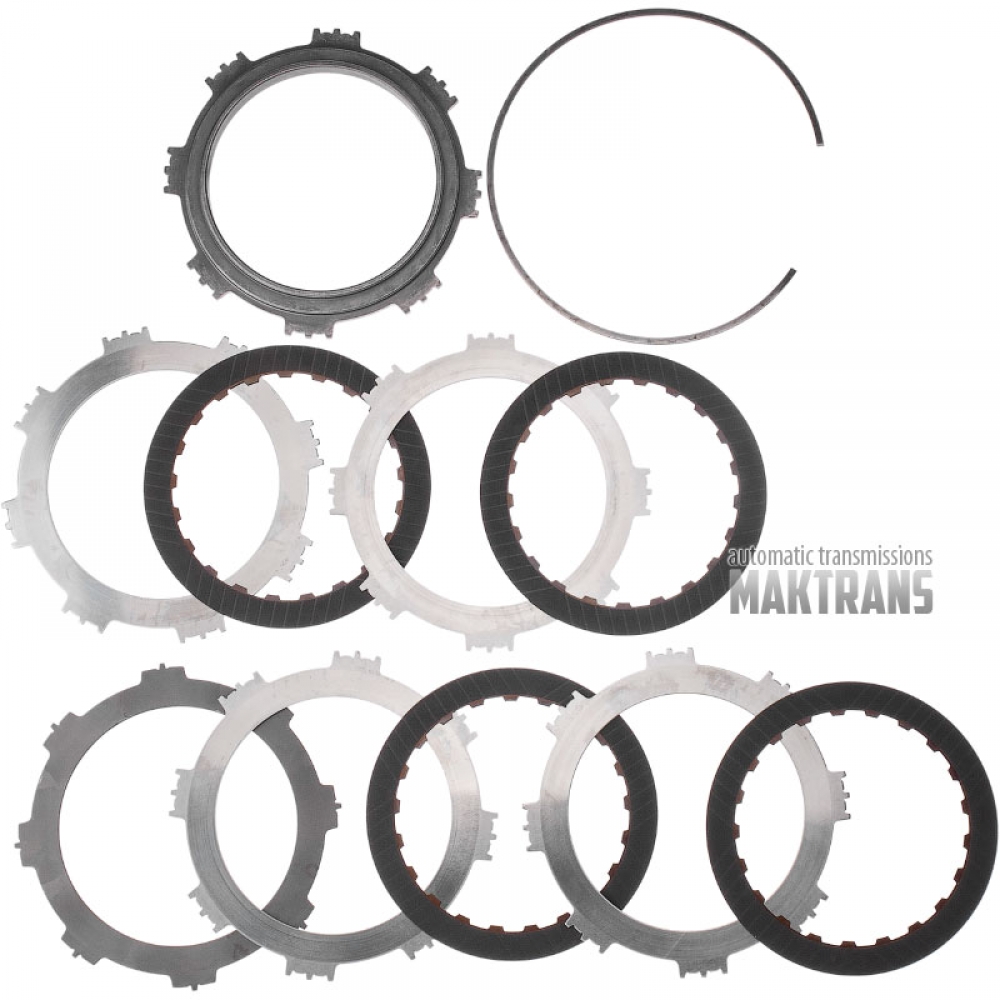

Steel and friction plate kit 4-5-6-7-8-R Clucth GM 8L90 / [4 friction plates, total kit thickness 20.85 mm]

• The total thickness of the set is 20.85 mm;

Thrust plate:

• Thickness - 12.50 mm / 4.75 mm;
• Inner diameter - 128.55 mm;
• Number of teeth - 8 pcs.;
• Number of plates  - 1 piece;

Friction plate:

• Thickness - 1.60 mm;
• Outer diameter - 159.90 mm;
• Number of teeth - 21 pcs.;
• Number of plates - 4 pcs.;

Steel plate:

• Thickness - 2.35 mm;
• Inner diameter - 128.80 mm;
• Number of teeth - 8 pcs.;
• Number of plates- 4 pcs.;

Spring plate:

• Thickness - 1.55 mm;
• Inner diameter - 129.30 mm;
• Number of teeth - 8 pcs.;

Tags: 24270023 24294796 24259295 24276270 24271907 24259296 24259297 24259298 24259299 24259300 24259301 24259302 24259303
