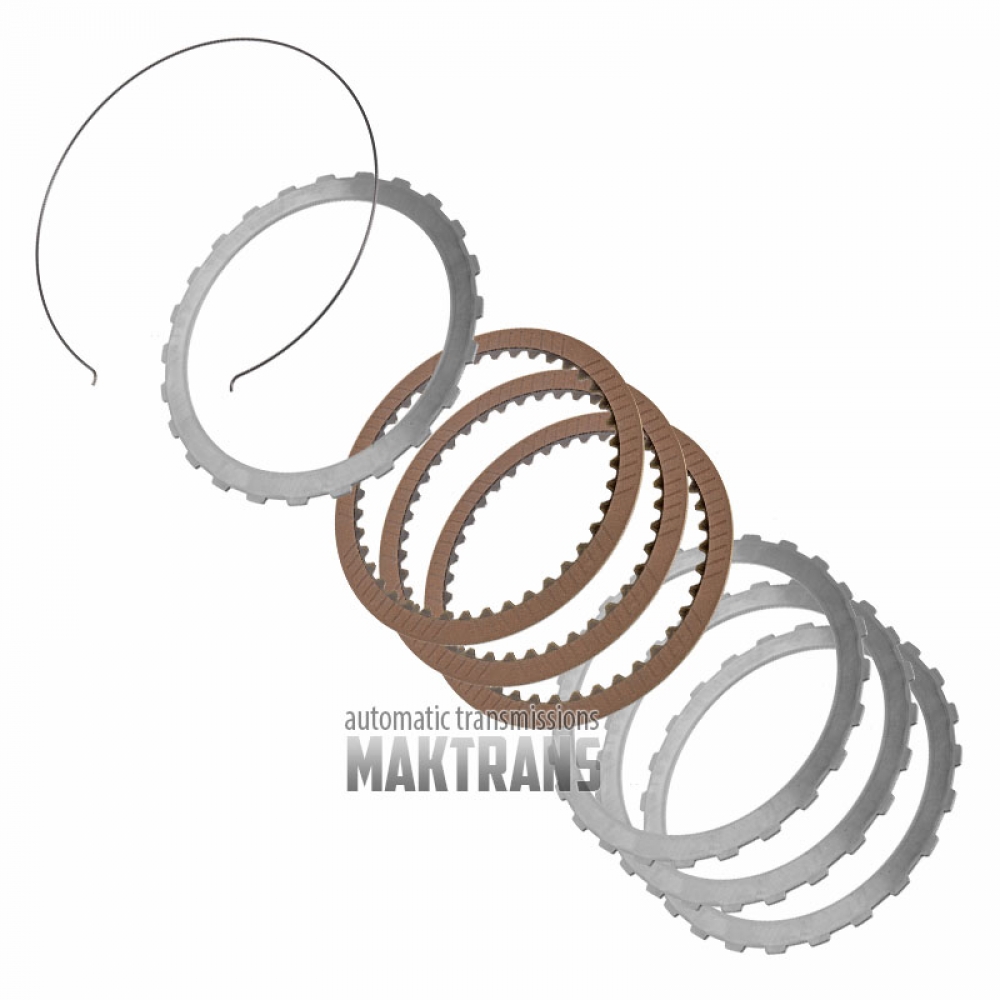

Steel and friction plate kit D Brake 4HP16 [total thickness 12.45 mm, 3 friction plates]

• Overall thickness - 12.45 mm;

Thrust plate:

• Thickness - 2.10mm;
• Inner diameter - 134.10 mm;
• Number of teeth - 24 pcs;
• The number of plates in the set - 5 pcs;

Friction plate:

• Thickness - 1.60mm;
• Outer diameter - 156 mm;
• Number of teeth - 40 pieces;
• The number of plates in the set - 3 pcs;

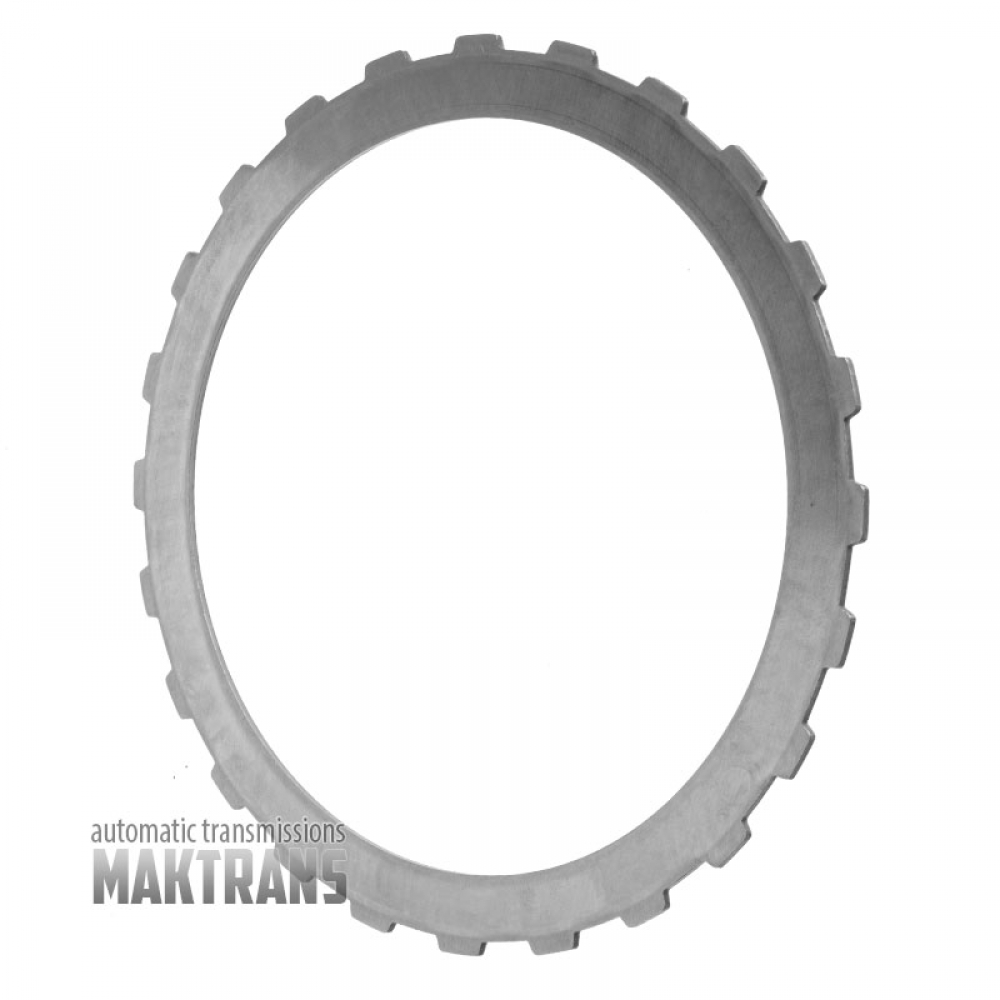

Steel plate:

• Thickness - 1.75 mm;
• Inner diameter - 134.10 mm;
• Number of teeth - 24 pcs;
• The number of plates in the set - 5 pcs;
