Steel and friction plate kit FORWARD Clutch FORD 6R140 [total thickness of the set 29.50 mm, 4 friction plates]

Drum FORWARD Clutch [pressure plate Direct Clutch]:

• Overall height - 61.20 mm;
• Outer diameter - 213.75 mm;

Steel and friction plate kit FORWARD Clutch:

• The total thickness of the kit is 29.50 mm;

Thrust plate:

• • Thickness - 15 mm / 10.75 mm;
• • Inner diameter – 176.95 mm;
• • Number of teeth - 8 pcs;
• • The number of plates in the set - 1 pc;

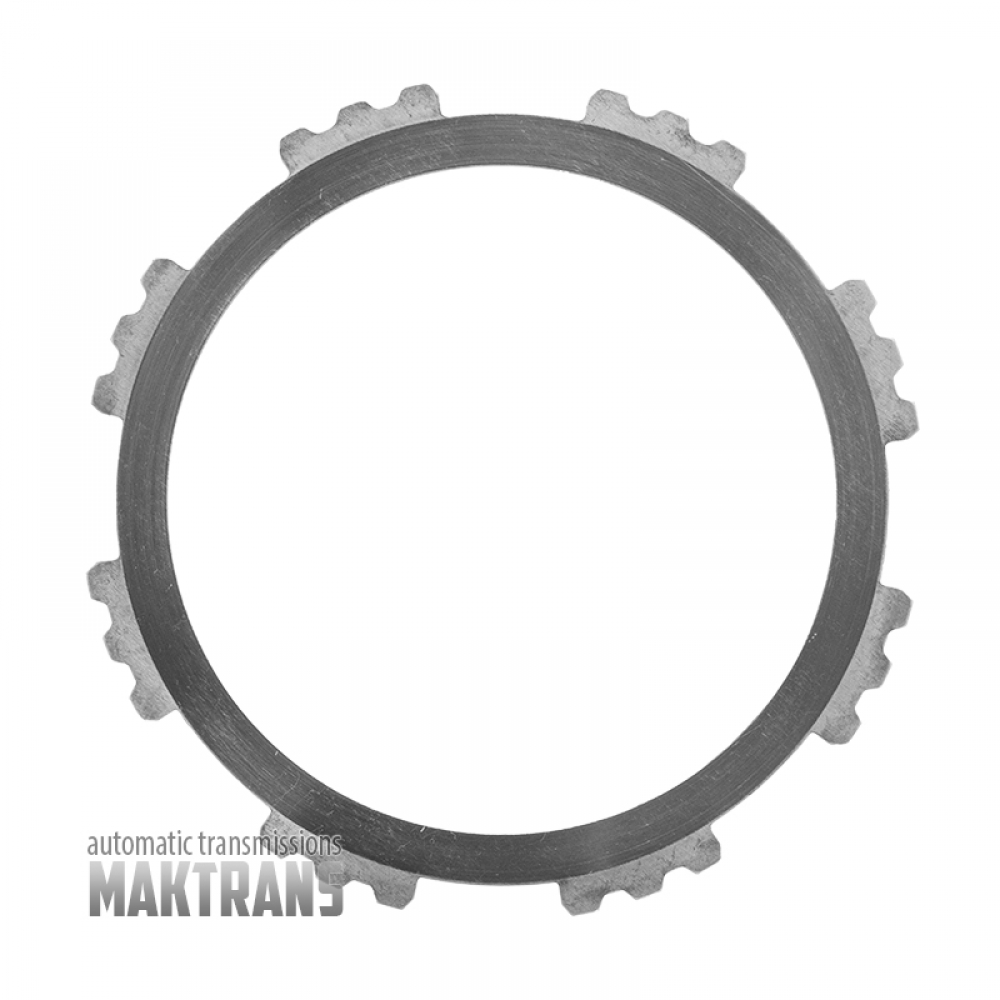

Steel plate:

• • Thickness – 2.05 mm;
• • Inner diameter - 176.95 mm;
• • Number of teeth - 8 pcs;
• • Number of plates in the set - 4 pcs;

Friction plate:

• • Thickness - 1.60 mm;
• • Outer diameter - 205.45 mm;
• • Number of teeth - 32 pcs;
• • Number of plates in the set - 4 pcs;

Spring plate:

• Thickness - 0.90 mm;
• Number of teeth - 8 pcs;
• The number of plates in the set - 1 pc;

Tags: BC3Z-7G341-A BC3Z-7B070-A CC3Z-7B164-A BC3Z-7B442-D BC3Z-7B442-D BC3Z-7D483-F
