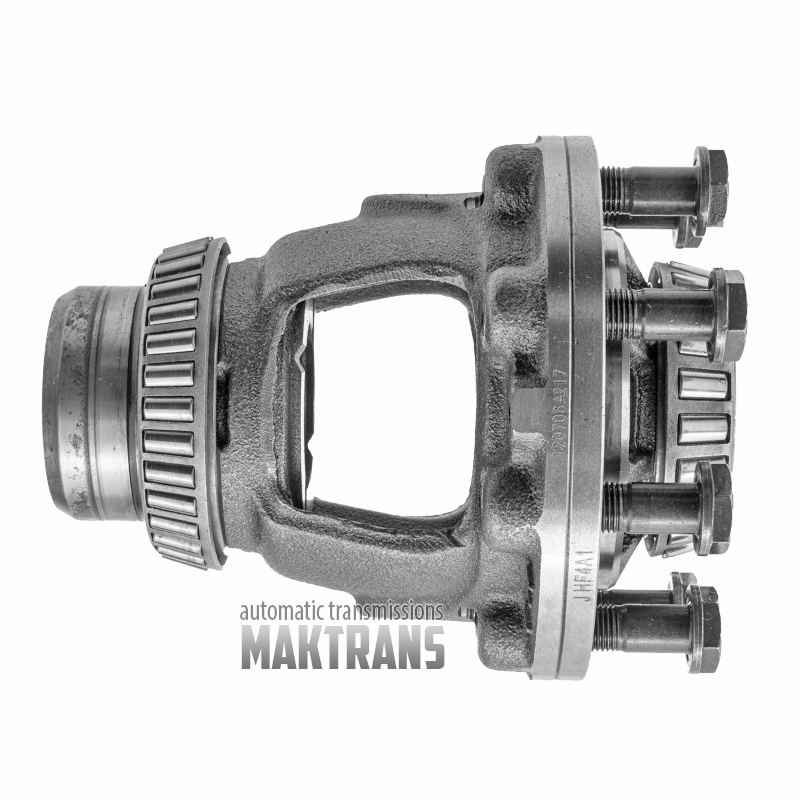

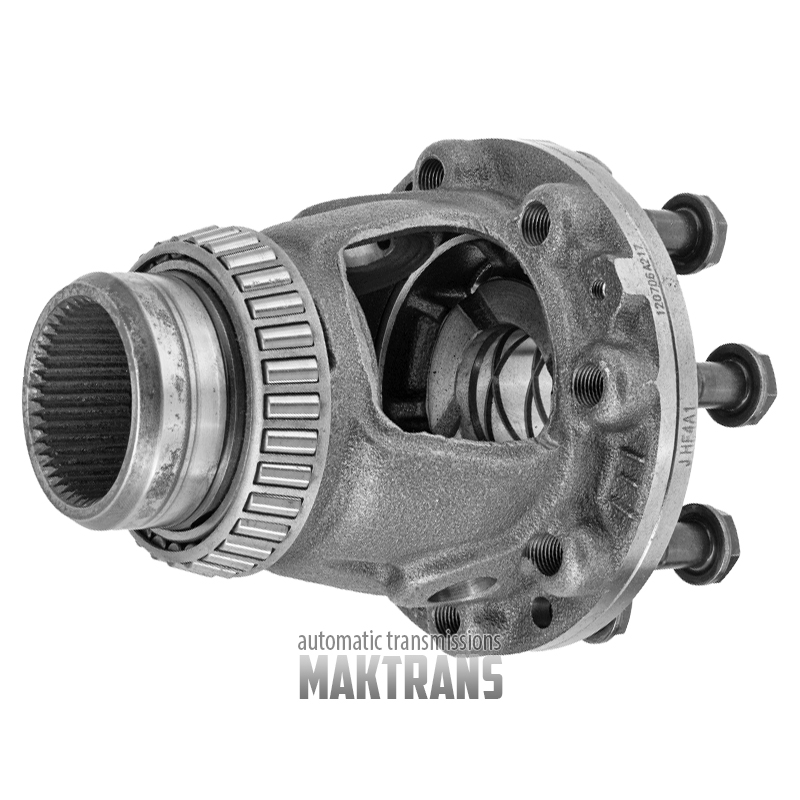

Differential housing 4WD Hyundai / KIA (spline wear 35-45%) [44 splines, 8 gear mounting holes]

Name: Differential housing 4WD Hyundai / KIA (spline wear 35-45%) [44 splines, 8 gear mounting holes]
Brand: HYUNDAI/ KIA
Price: 28.34 USD
Availability: InStock

Worldwide Shipping 🌎

Product Code:

DF44S-A6-8

Product model copied to clipboard

Brand

HYUNDAI/ KIA

Availability: 3

Weight (kg): 3.4

$28.34

Shipping Icon Shipping to United States from $92.78

Main Specifications

Condition (used, new): used and inspected

Type: 4WD differential housing

Available Options

Stock Place:	Availability:	Price:	Qty:
Ukraine	3 pcs.	$28.34

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)

Overall height - 169 mm;
overall diameter - 138 mm;
Ring gear seat diameter - 92 mm;
Number of fixing bolts - 8 pcs;
Satellite pin length - 108 mm;
Finger hole diameter - 18 mm;
The diameter of the hole for the neck of the satellite - 37 mm;
The inner diameter of the needle bearing - 37 mm;
Bearing neck diameter (ring gear side) - 50 mm;
Neck diameter for bearing (transfer case side) - 62 mm;
Internal splines of the outlet to the transfer case - 44 (diameter - 45 mm)
The width of the neck of the outlet to the transfer case from the bearing - 26 mm;
Neck diameter - 61.5 mm;
