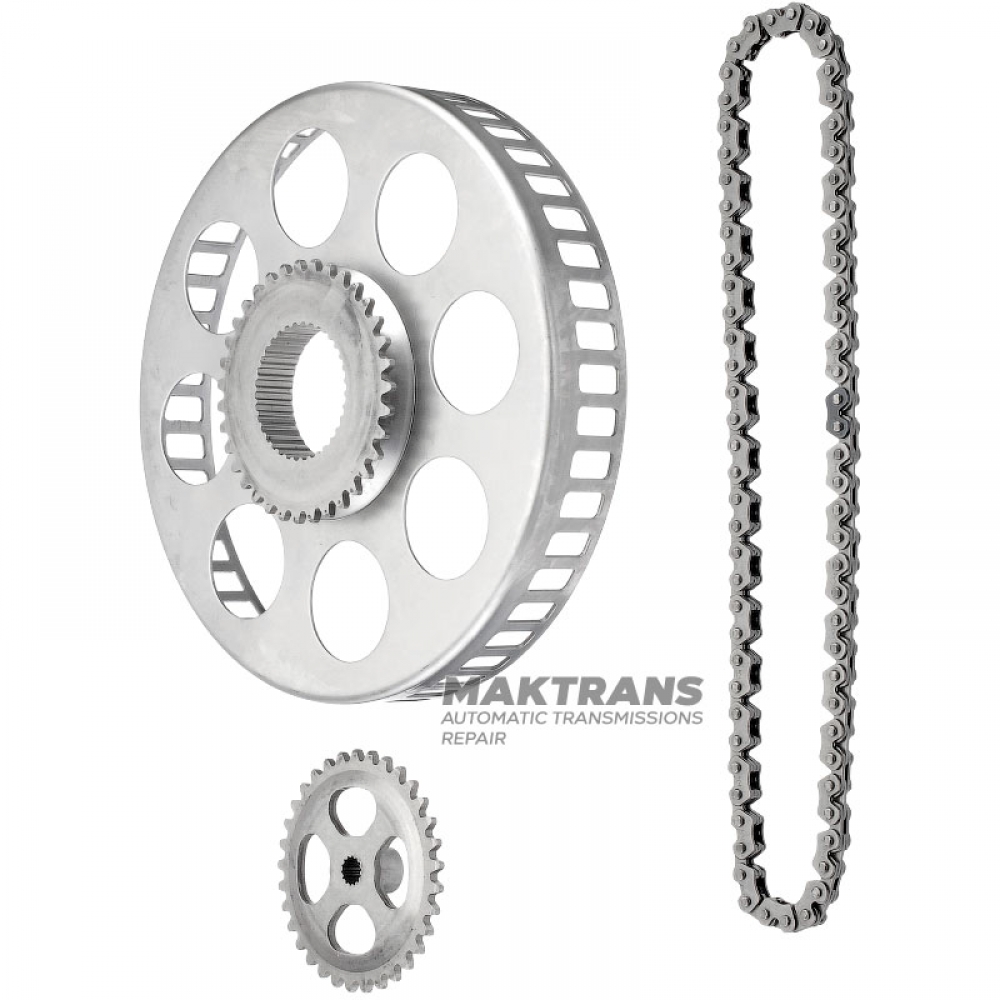

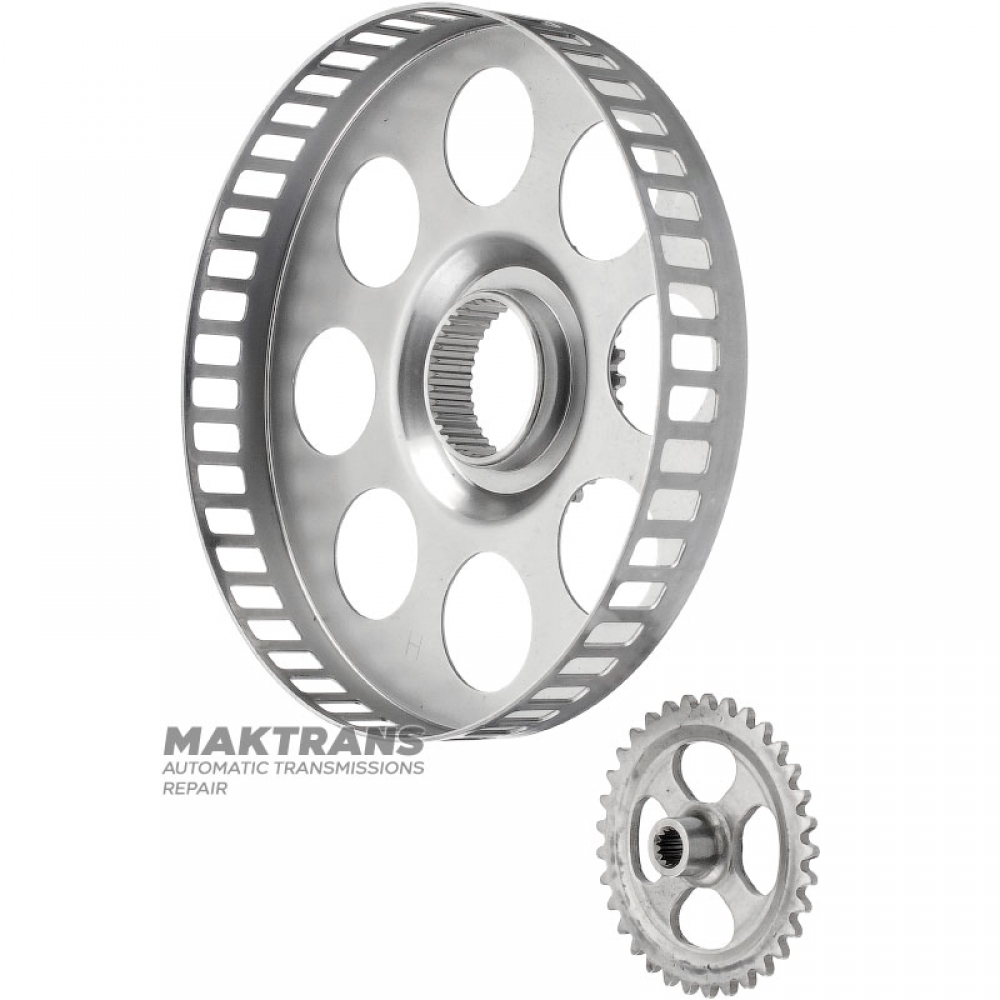

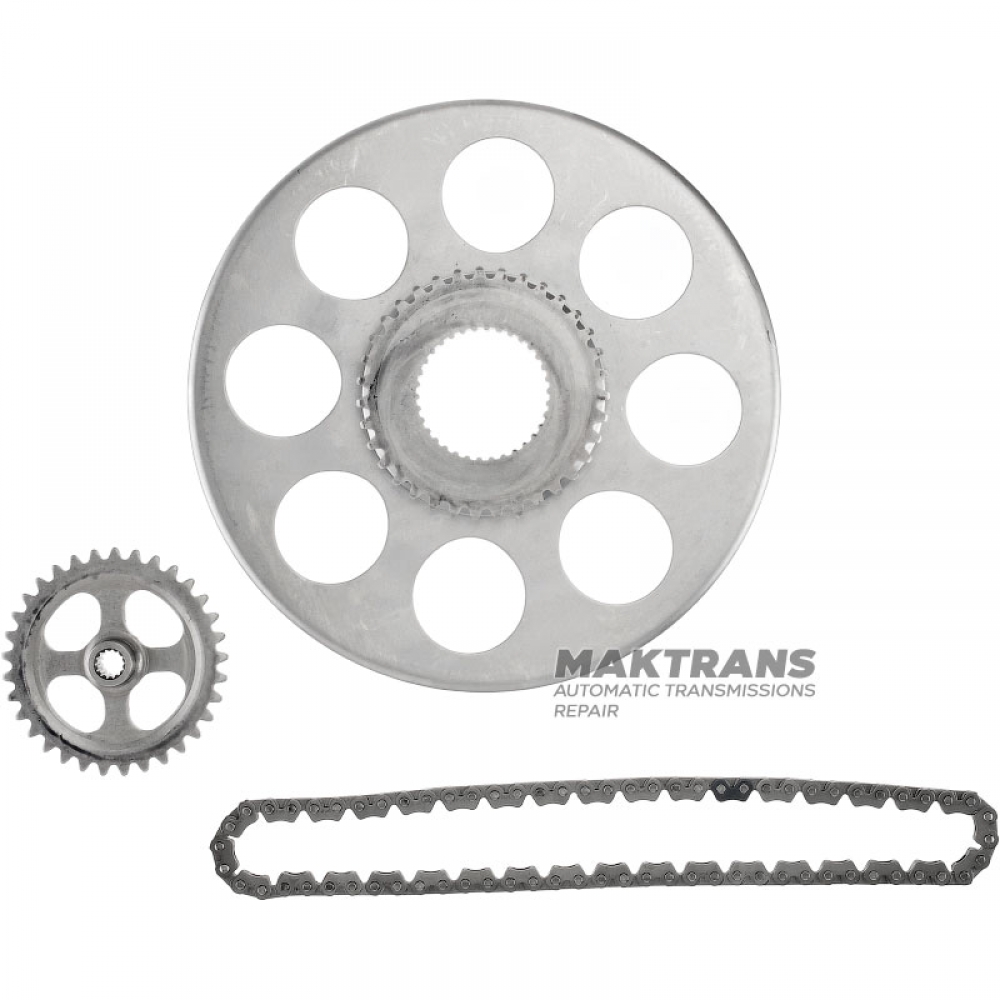

MAZDA CX-90 / CX-60 2.5L-3.3L HYBRID oil pump gear set - drive gear 35 teeth (34 splines), driven gear 33 teeth (14 splines), chain 36 links.

Drive gear:

• Total height - 37 mm;
• The outer diameter of the speed sensor wheel is 162.90 mm;
• Number of teeth on the gear - 35 pcs.;
• Gear outer diameter - 68.70 mm;
• Number of splines - 34 pcs.;

Driven gear:

• Total height - 13.40 mm;
• Outer diameter - 64.65 mm;
• Number of teeth - 33 pcs.;
• Number of splines - 14 pcs.;

Drive chain:

• Number of links - 36 pcs.;
• Chain width - 4.65 mm;
• Chain width along connecting links - 6 mm;
