the asking price is €57.62
Shipping to United States from €74.91
Main Specifications
Condition (used, new):
used and inspected
Type:

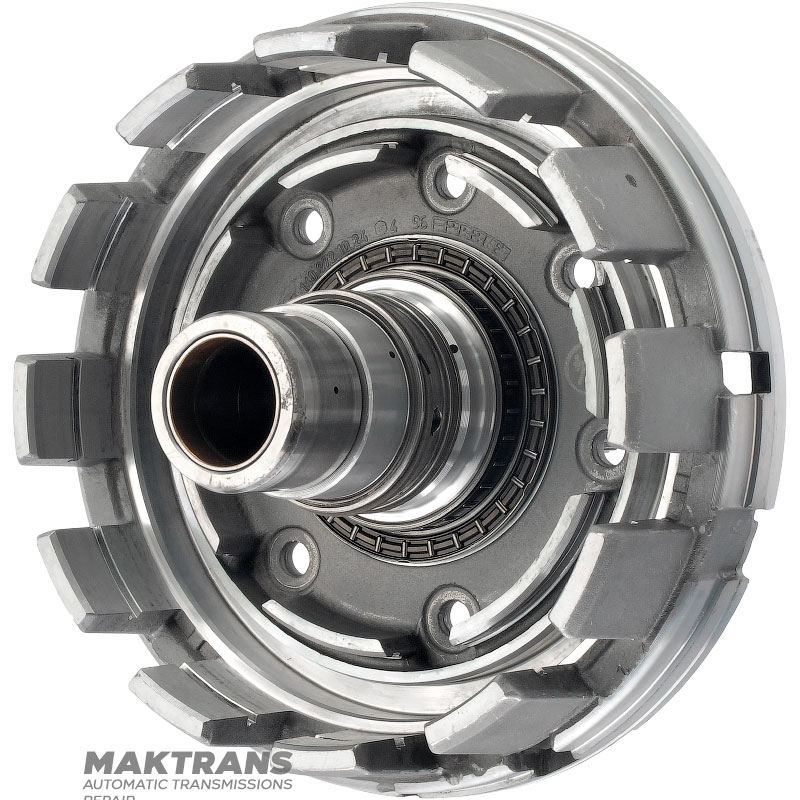

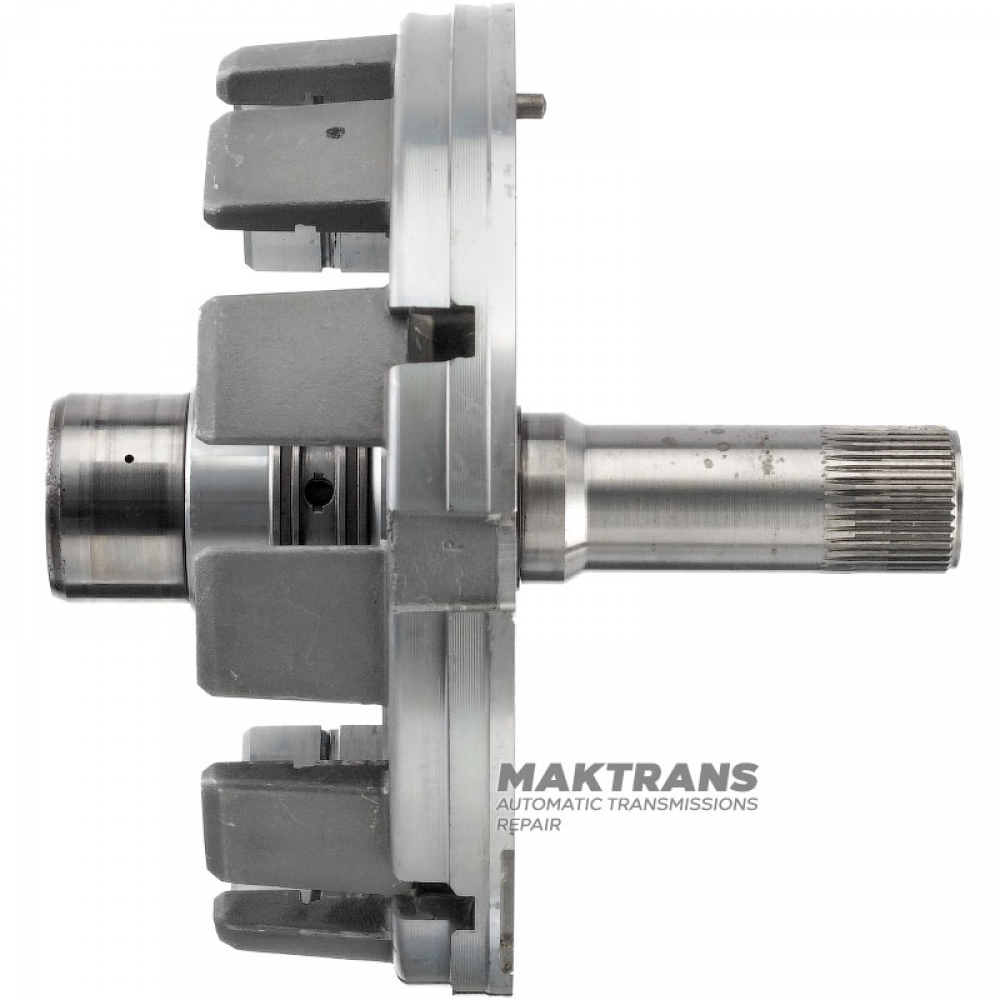

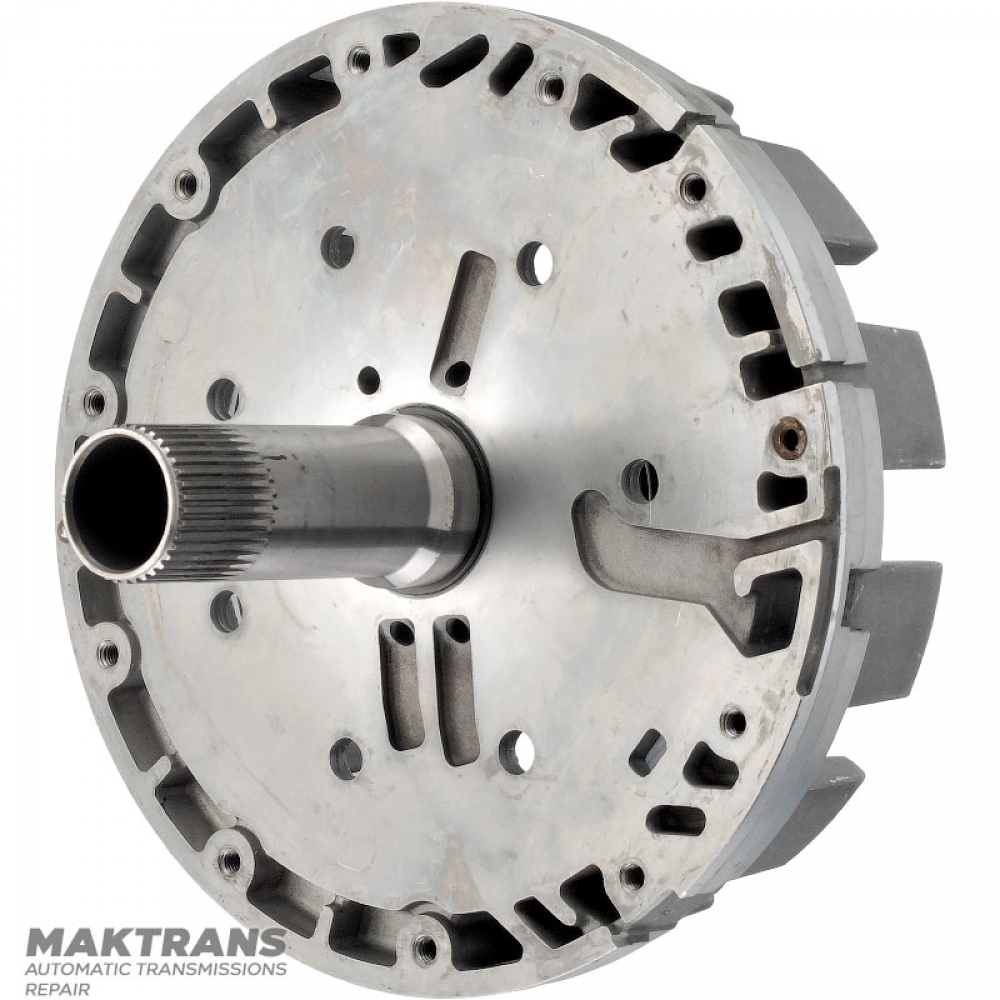

oil pump hub
If you order more than 1 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 1 pcs. |
  |
| Ukraine | 1 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (2)
- Overall height - 193 mm;
- Outer body diameter - 212.10 mm;
- Height from the retaining ring to the top edge of the B1 Brake drum - 18.50 mm;
Front side of the hub:
- Height - 95 mm;
- Number of splines - 38 pcs.;
- The outer diameter of the splined part is 31.75 mm;
Back to the hub:
- Height (from base) - 91 mm;
- The outer diameter of the working part is 45.30 mm;
- Outer diameter over Teflon rings - 57.50 mm;
- Inner diameter of the sleeve - 31.50 mm;
