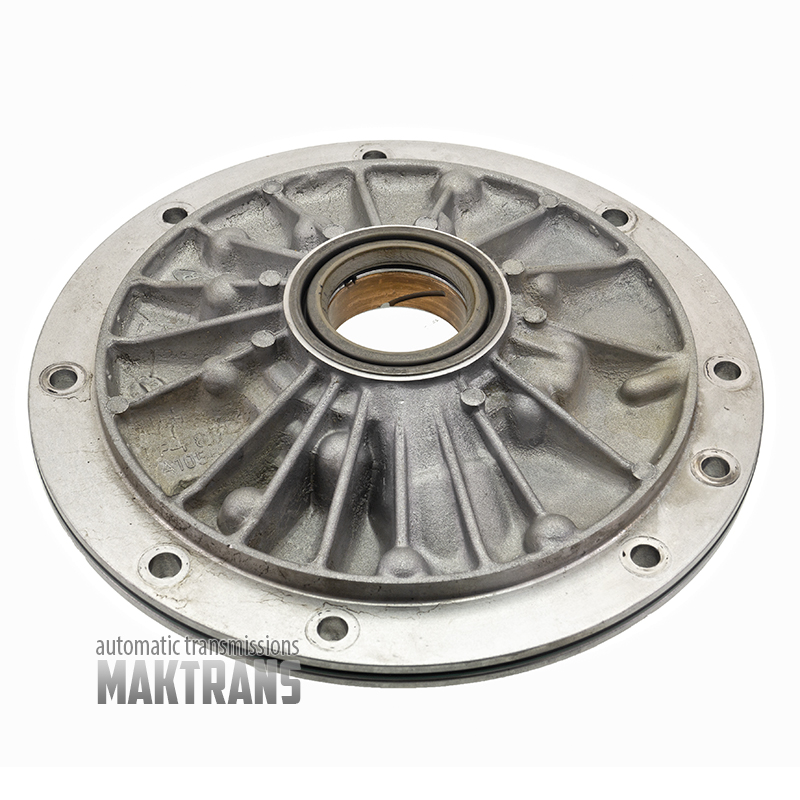

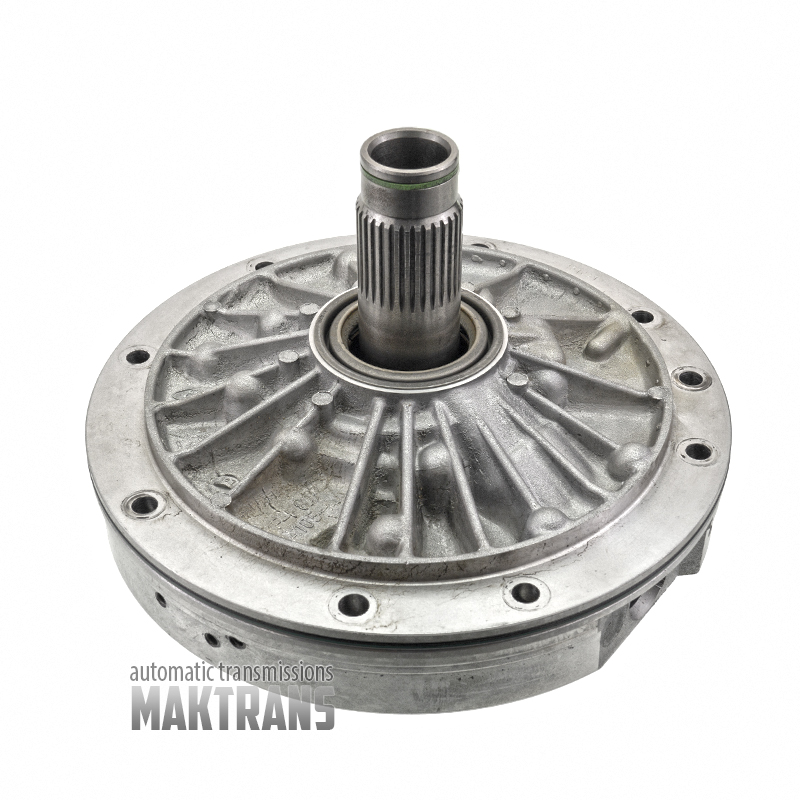

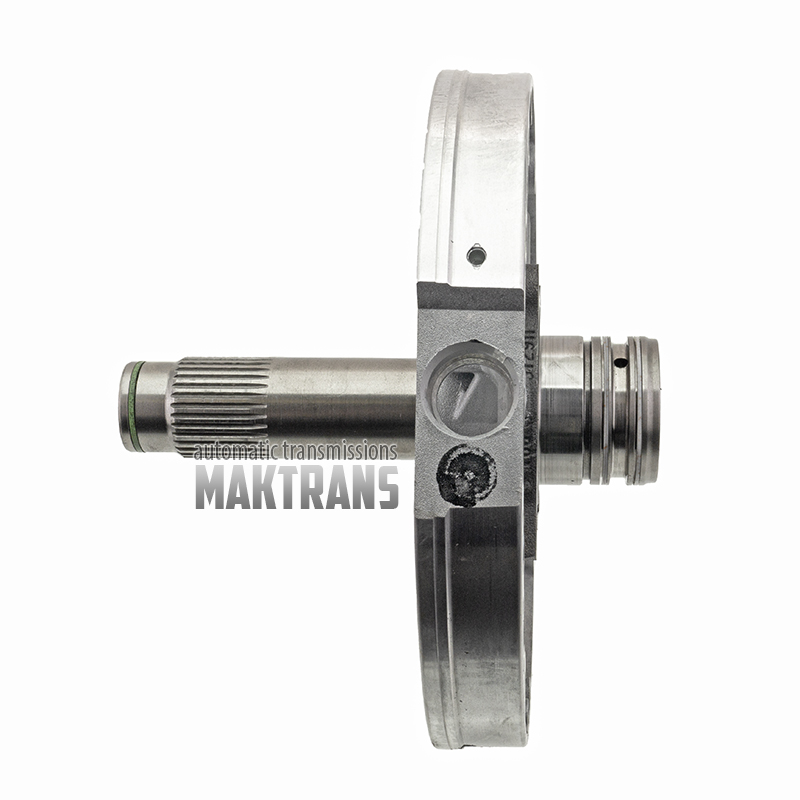

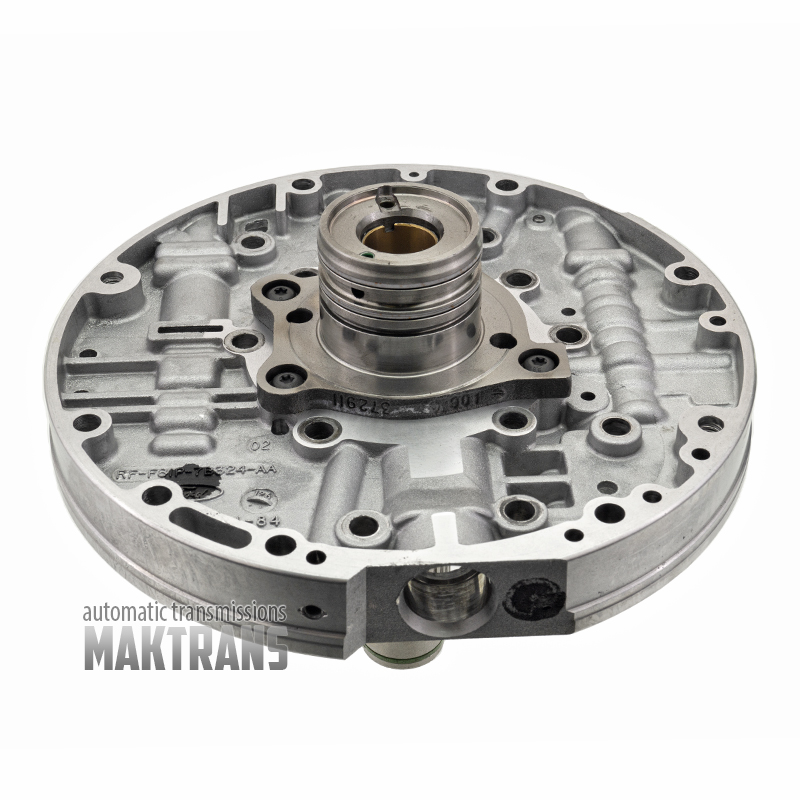

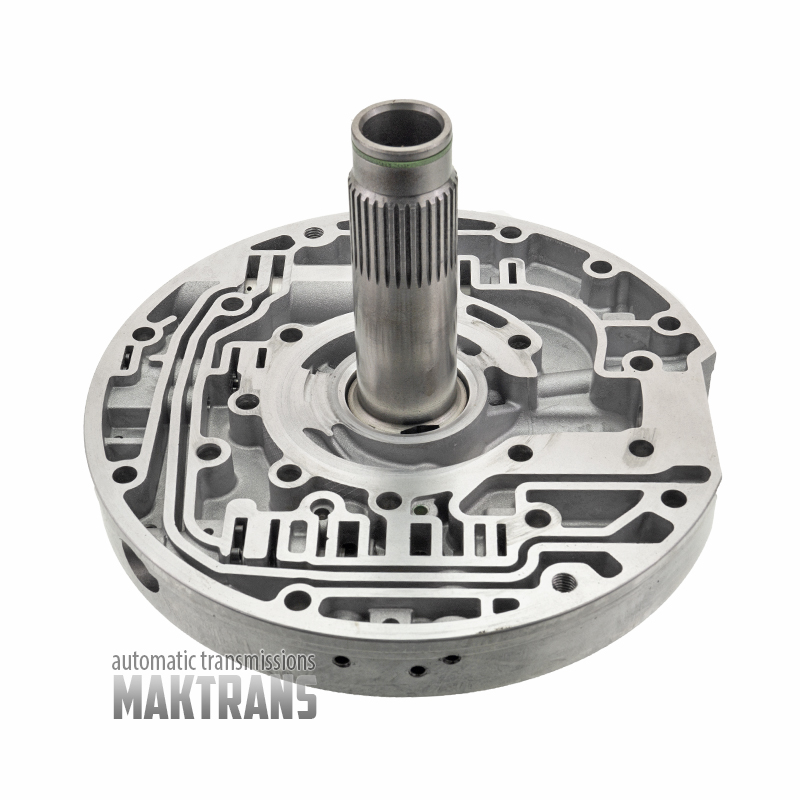

Oil pump assembly FORD 4R100 F81P-7B324-AA F81P-7A105-AA [for 5.4L - 6.8L vehicles, without power take-off option]

• Overall height - 212 mm;
• The number of splines on the hub - 32 pcs;
• The outer diameter of the splined part is 41.25 mm;

Oil pump gears:

Drive gear:

• Inner diameter - 50.55 mm;
• Number of teeth - 9 pcs;
• Gear width - 15.80 mm;

Driven gear:

• Outer diameter - 103.75 mm;
• Number of teeth - 10 pcs;
• Gear width - 9 pieces;

COAST Clutch Drum Hub:

• Outside diameter -
• Quantity of teflon rings - 2 pieces;

*pay attention to the location of the teflon rings on the hub
