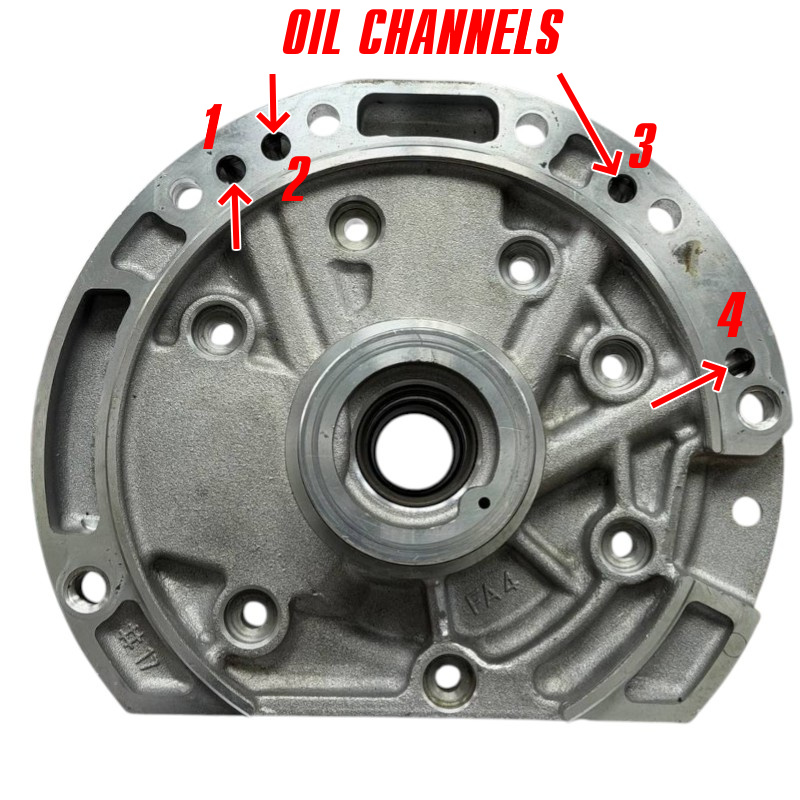

Oil pump F4A41, F4A42 — 4611039000, 4611039020 (Hyundai / KIA type, 4 oil channels on the hub)

Oil pump hub:

• Overall height - 108 mm;

Front side:

• Stator height - 64 mm;
• Inner diameter of the sleeve - 22.50 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 31.20 mm;
• The outer diameter of the aluminum body is 200 mm;

Back side:

• Height - 27 mm;
• Hub outer diameter - 58.35 mm;

Oil pump gear housing:

• Height - 37 mm;
• Outer body diameter - 157.10 mm;
• Inner diameter of the sleeve - 43 mm;

Oil pump gears:

Pinion gear:

• Thickness - 12 mm;
• Inner diameter - 42.85 mm;
• Number of teeth - 11 pcs.;

Driven gear:

• Thickness - 12 mm;
• Outer diameter - 91.20 mm;
• Number of teeth - 13 pcs.;
