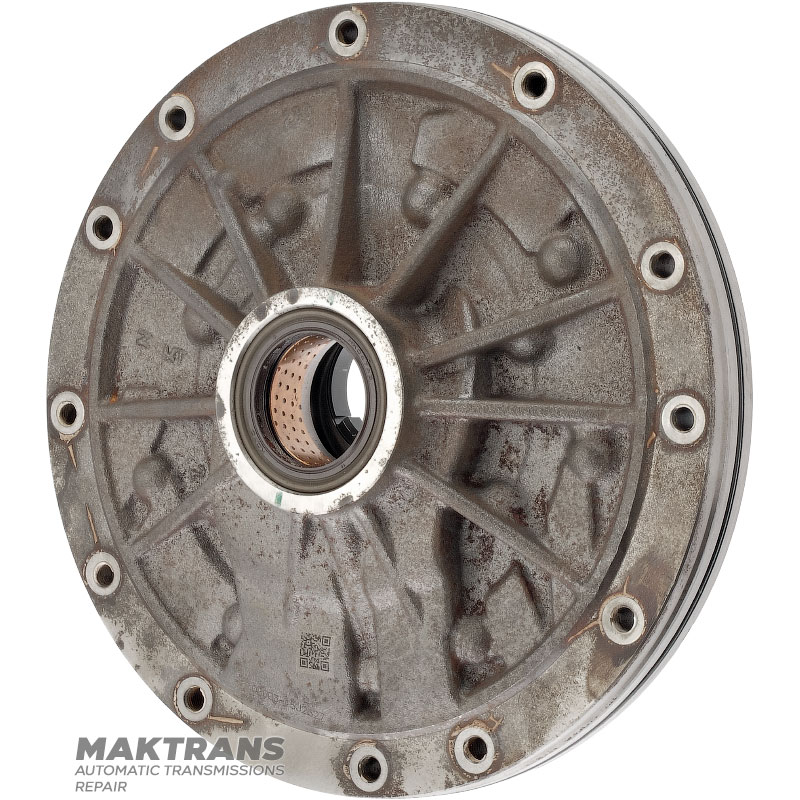

Oil pump Aisin Warner A466ND / NISSAN RE6R01A - gear thickness 12.05 mm, 31020EZ01D, 345010-34050, NISSAN TITAN A61, 5.0L DIESEL 4X4

Oil pump gear housing:

• Total height - 60 mm;
• Inner diameter of the sleeve - 46.75 mm;
• Outer body diameter - 283.55 mm;
• The diameter of the hub seat is 218.15 mm;

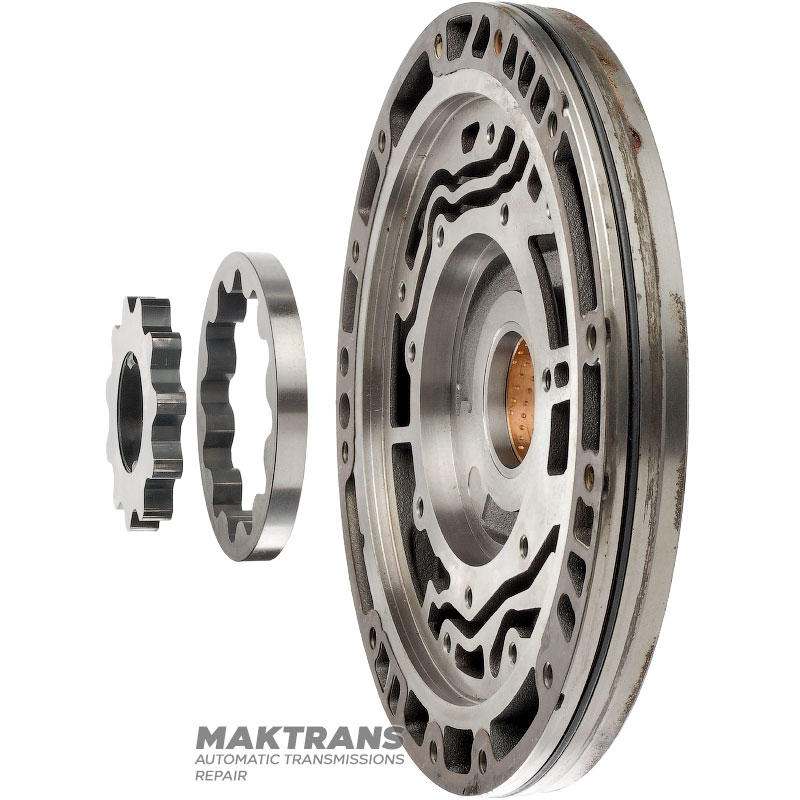

Oil pump gears:

Pinion:

• Thickness - 12.05 mm;
• Inner diameter - 46.85 mm;
• Number of teeth - 11 pcs.;

Driven gear:

• Thickness - 12.05 mm;
• Outer diameter - 119.85 mm;
• Number of teeth - 12 pcs.;
