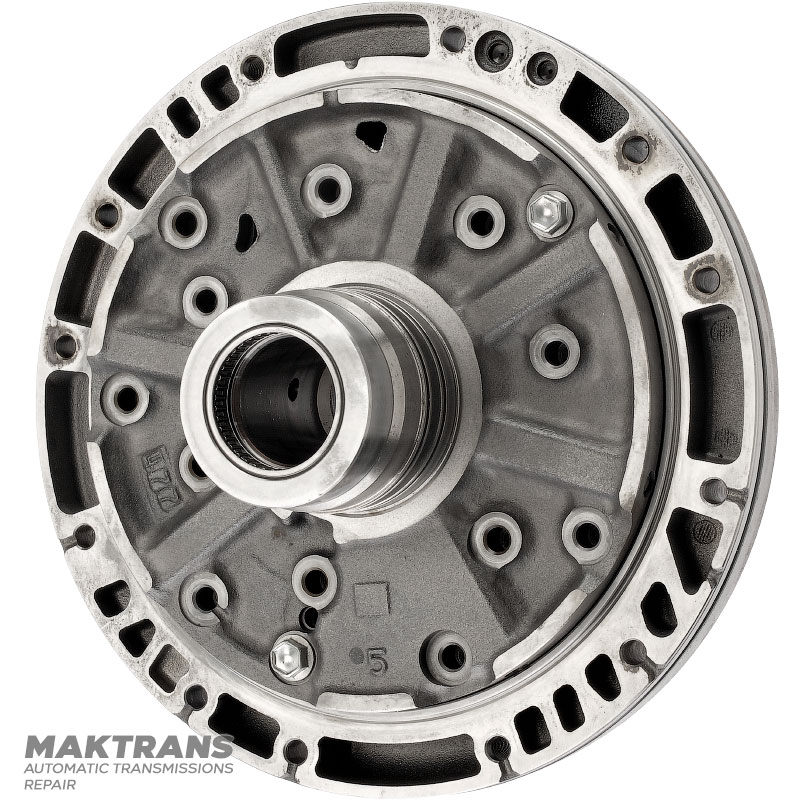

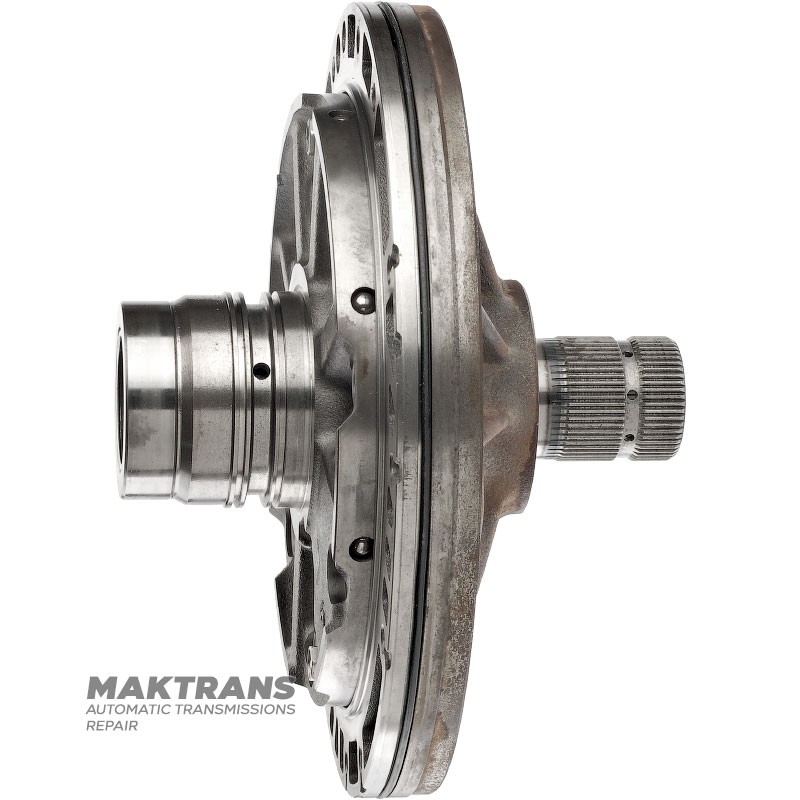

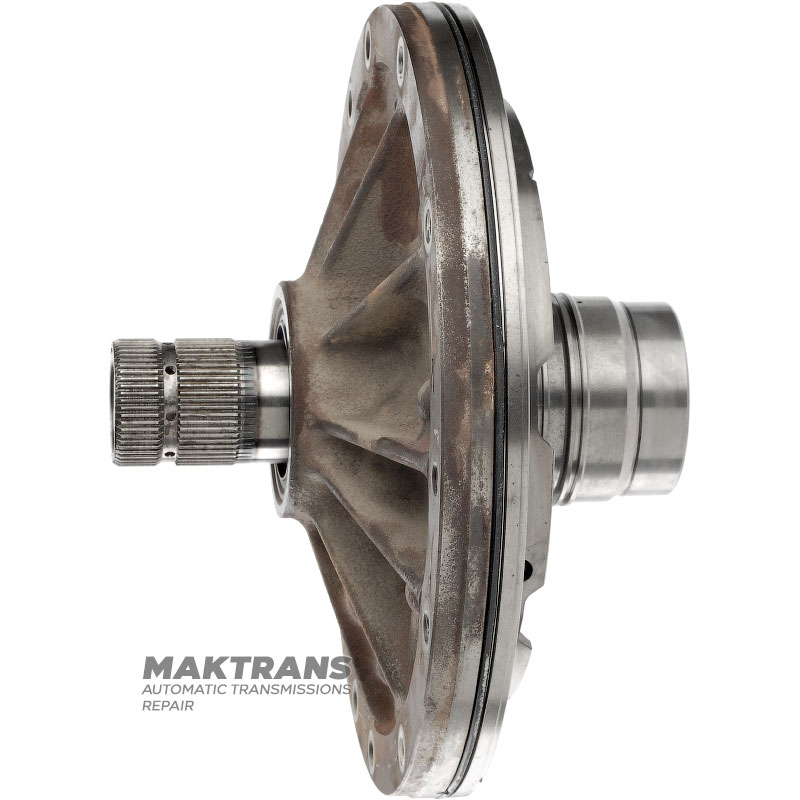

Oil pump (assembled) – AS68RC, AS69RC

Oil pump hub:

• Total height - 200 mm;

Front side:

• Stator height (front side) - 117.50 mm;
• Number of splines - 54 pcs.;
• The outer diameter of the splined part is 45.45 mm;

Hub housing outer diameter - 218.50 mm;

Back side:

• Stator height (rear side) - 64 mm;
• The outer diameter of the working part is 71 mm;
• Outer diameter over Teflon rings - 77.55 mm;

  ---



Oil pump gear housing:

• Overall height - 65 mm;
• Outer body diameter - 283.55 mm;
• Inner diameter of the sleeve - 55.35 mm;

  ---



Oil pump gears:

Pinion:

• Thickness - 13 mm;
• Inner diameter - 54.35 mm;
• Number of teeth - 11 pcs.;

Driven gear:

• Thickness - 13 mm;
• Outer diameter - 122.80 mm;
• Number of teeth - 12 pcs.;

Tags: 68244 633AA, 68244 636AA, 68244 632AA, 68244 579AA, 68244 637AA, R8244 633AA, 68244633AA, 68244636AA, 68244632AA, 68244579AA, 68244637AA, R8244633AA
