Main Specifications
Condition (used, new):
new
Type:
oil pump
Equipment level:
complete with hub
If you order more than 2 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 1 pcs. |
  |
| Poland | 1 pcs. |
|
| Ukraine | 2 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (2)

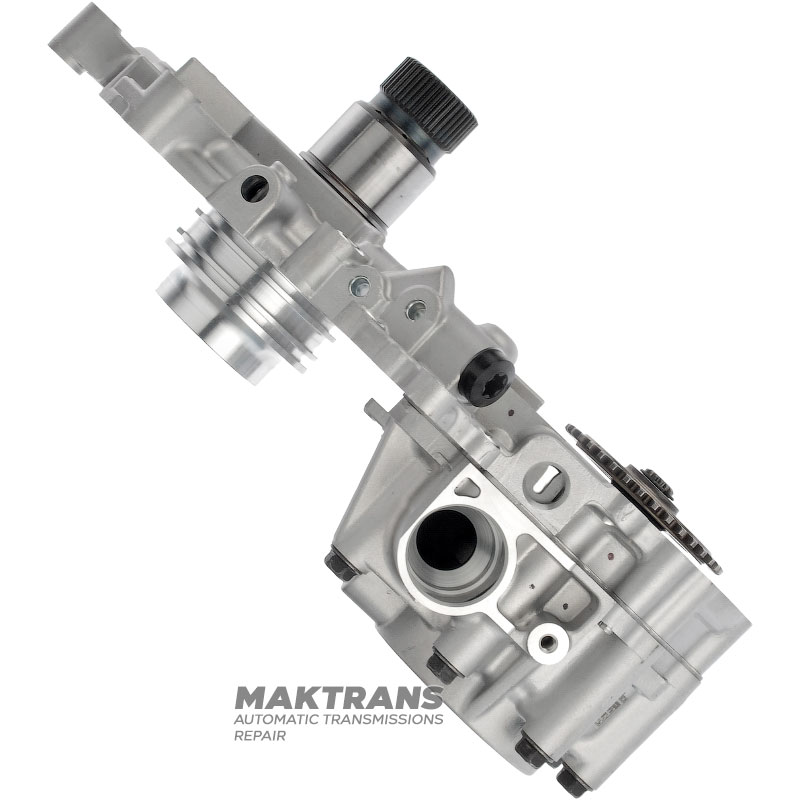

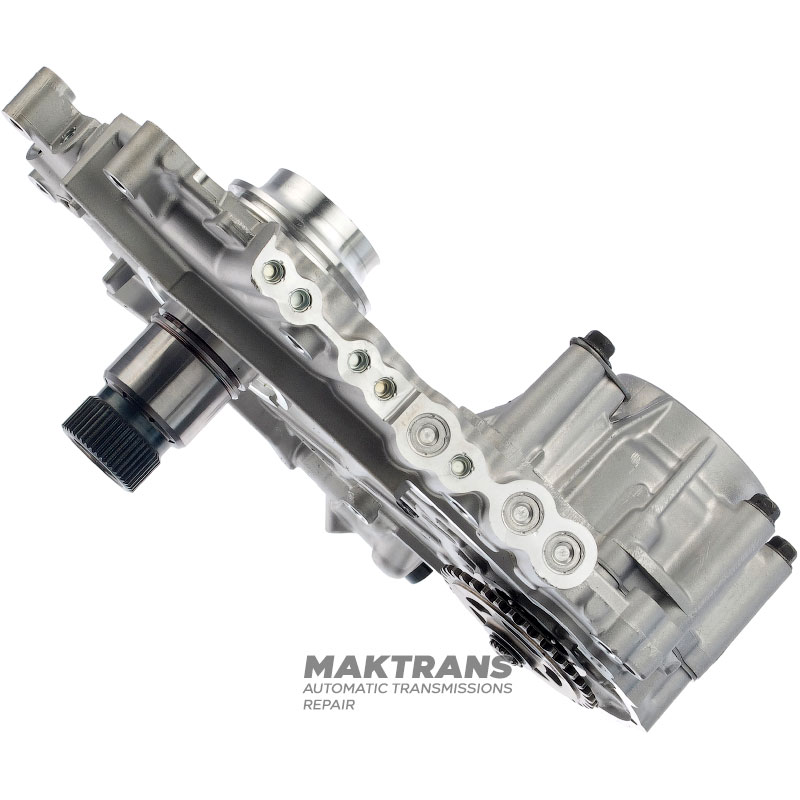

Brand new oil pump, complete with hub and driven gear of oil pump. Original part number stamped on front side of housing - 24050918.
The stator is not equipped with sealing split rings!
The neck, the stator of the torque converter has 43 splines with an outer diameter of the splined part of 32.90 mm. The total height of the stator is 61 mm.
The leading gear of the oil pump drive has 36 teeth and an outer diameter of 68.20 mm in teeth.
To avoid mistakes in selection, familiarize yourself with the features that this hub has:
  |
  |
  |
