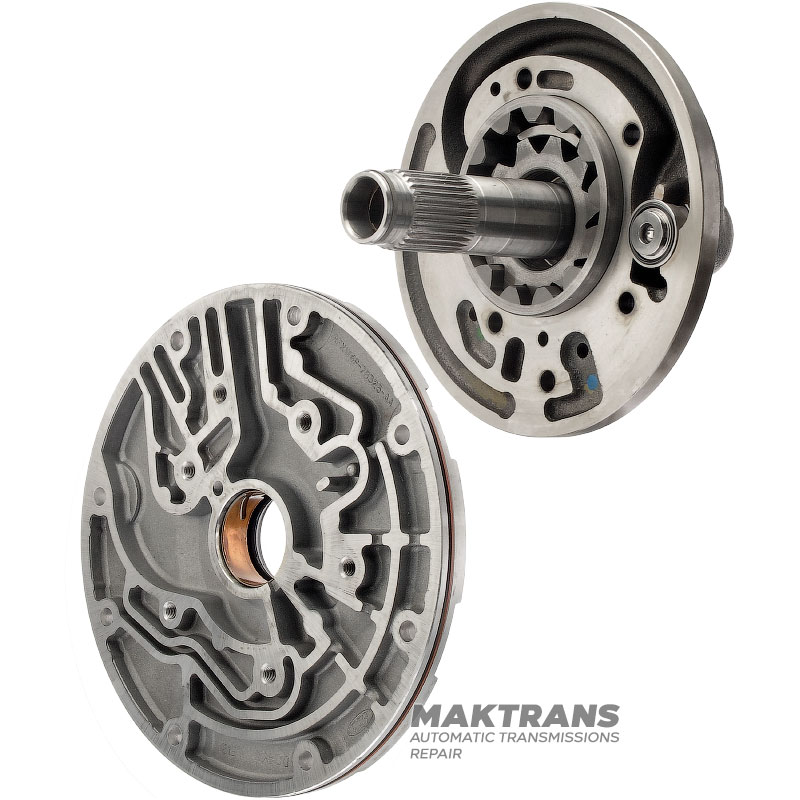

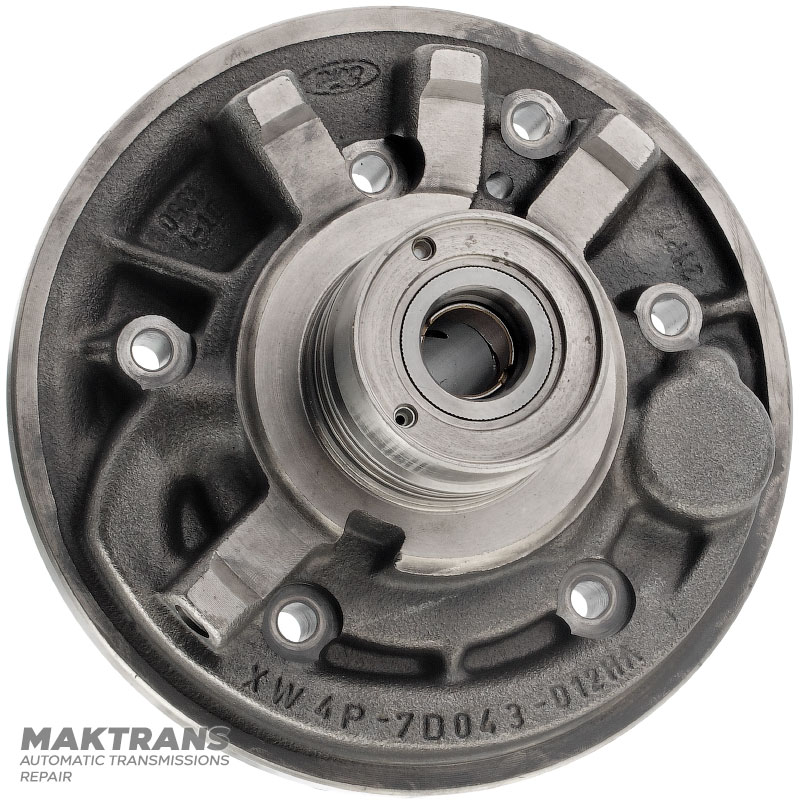

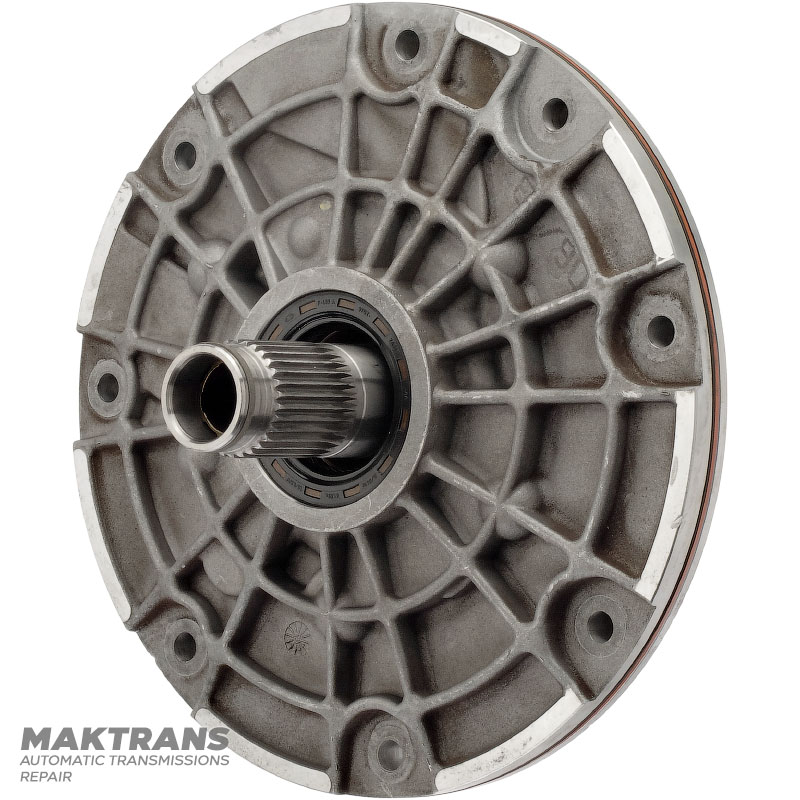

Oil pump (assembled) FORD 5R55E, 5R55S, 5R55W — XW4P-7B325-AA, XW4P-7D043

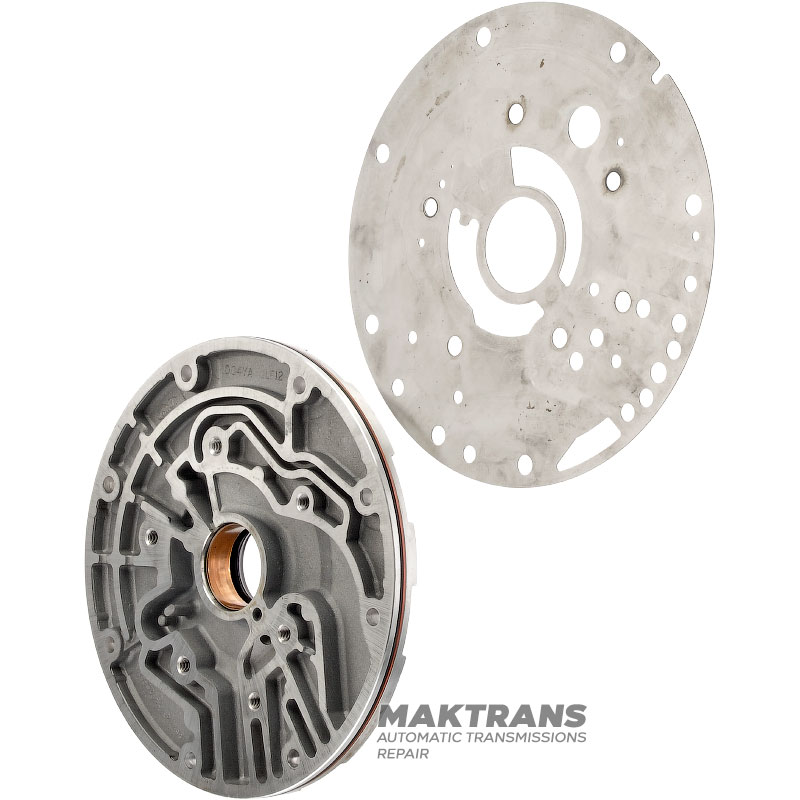

Oil pump cover:

• Overall height - 33 mm;
• Outer diameter - 228.40 mm;
• The inner diameter of the sleeve is 41 mm;

Oil pump hub:


Front side:

• Overall height - 178 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the splined part is 32.65 mm;
• Outer body diameter - 182.65 mm;

Back side:

• Overall height - 43 mm;
• Outer diameter over Teflon rings - 59.15 mm;
• The outer diameter of the working part is 56.60 mm;
• The inner diameter of the sleeve is 19 mm;

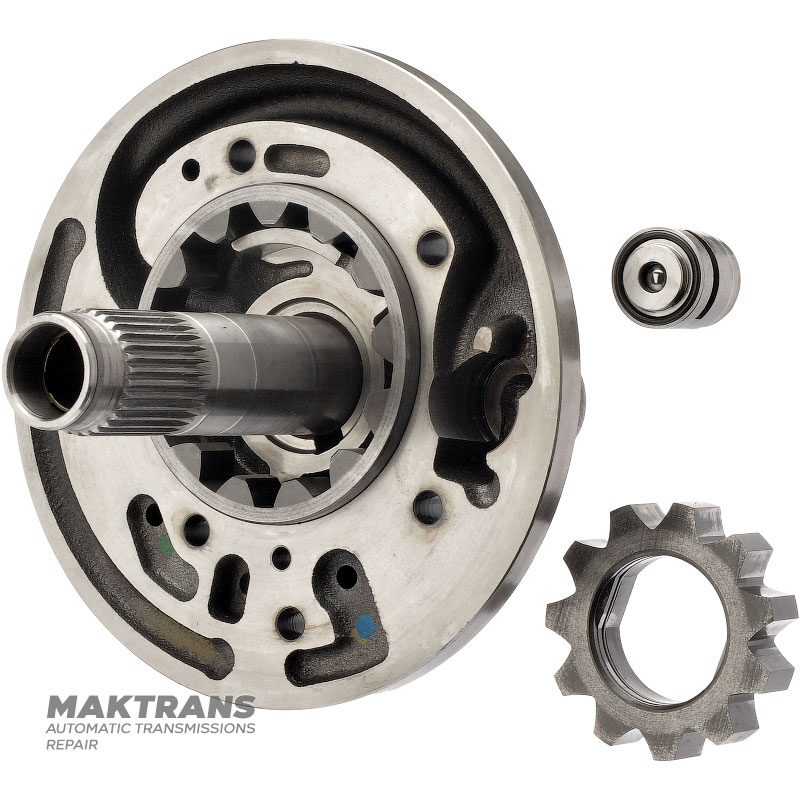

Oil pump gears:


Pinion:

• Thickness - 15.50 mm;
• Inner diameter - 40.60 mm;
• Number of teeth - 11 pcs.;

Driven gear:

• Thickness - 15.50 mm;
• Outer diameter - 92.50 mm;
• Number of teeth - 13 pcs.;
