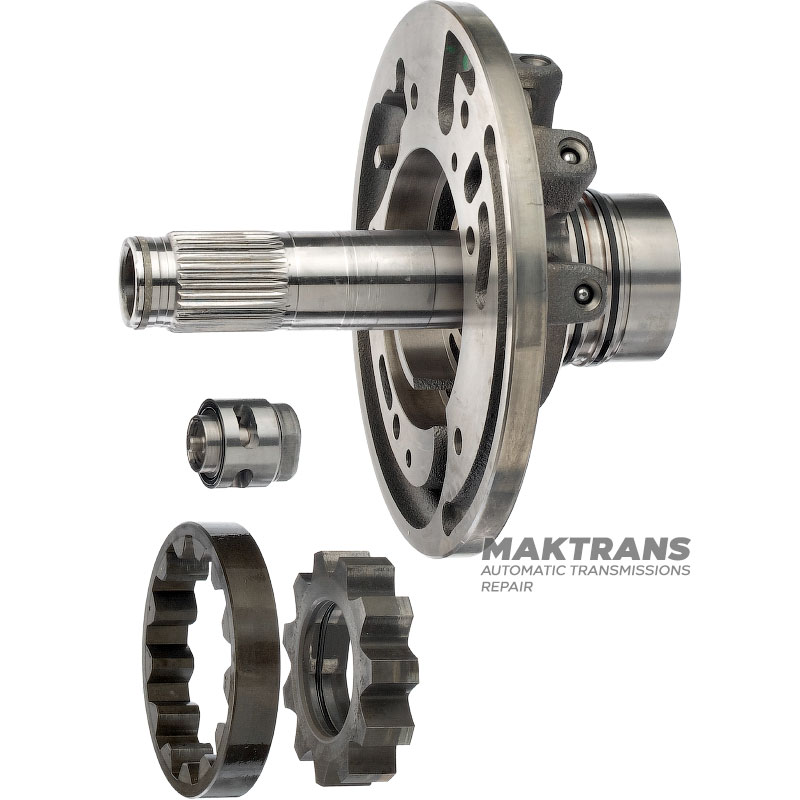

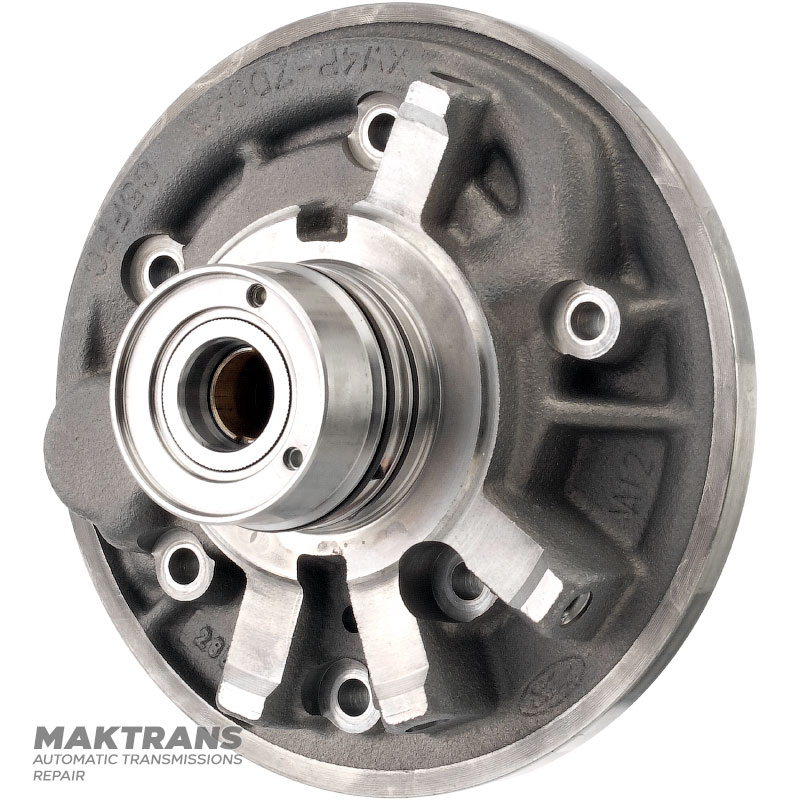

Oil pump FORD 5R55N, 5R55S, 5R55W – 6W4Z-7A103-AA (gear thickness 15.50 mm)

Oil pump hub:

Front side:

• Overall height - 178 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the splined part is 32.65 mm;
• Outer body diameter - 182.65 mm;

Back side:

• Overall height - 43 mm;
• Outer diameter over Teflon rings - 59.15 mm;
• The outer diameter of the working part is 56.60 mm;
• The inner diameter of the sleeve is 19 mm;

Oil pump gear set:

Pinion:

• Thickness - 15.50 mm;
• Inner diameter - 40.60 mm;
• Number of teeth - 11 pcs.;

Driven gear:

• Thickness - 15.50 mm;
• Outer diameter - 92.50 mm;
• Number of teeth - 13 pcs.;

Tags: E5TZ-7D025-ACMR, E5TZ-7D025-A, XW4Z-7H416-AA, XW4Z-7H411-A, 3L2Z-7L323-AA, 6W4Z-7A103-AA
