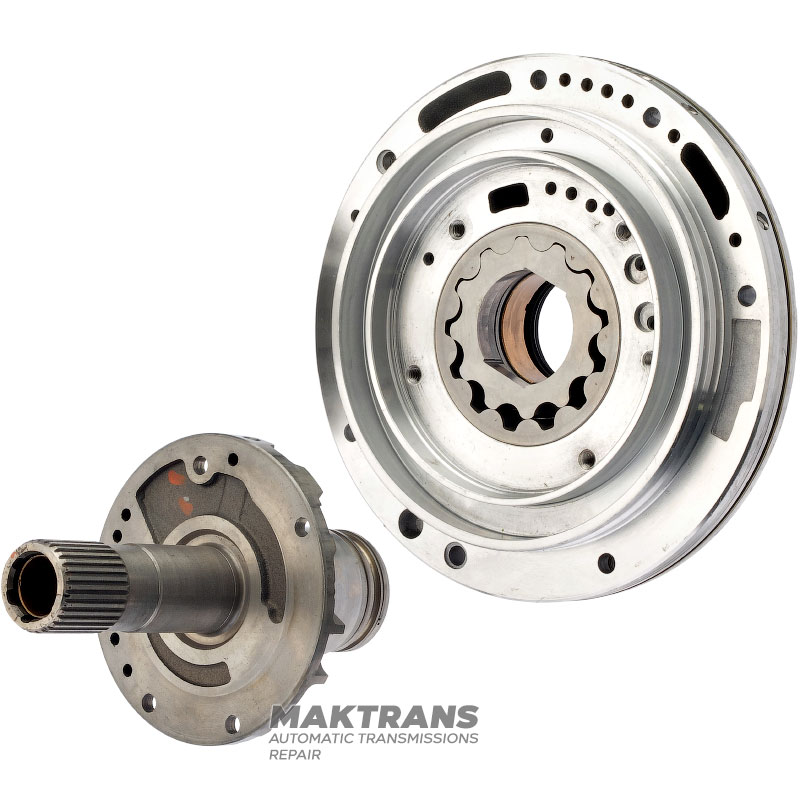

Oil pump FORD AOD, AODE, AODE-W, 4R70W, 4R75E, 4R75W – YL3P-7A105-AA (with piston and return spring Intemediate Clutch)

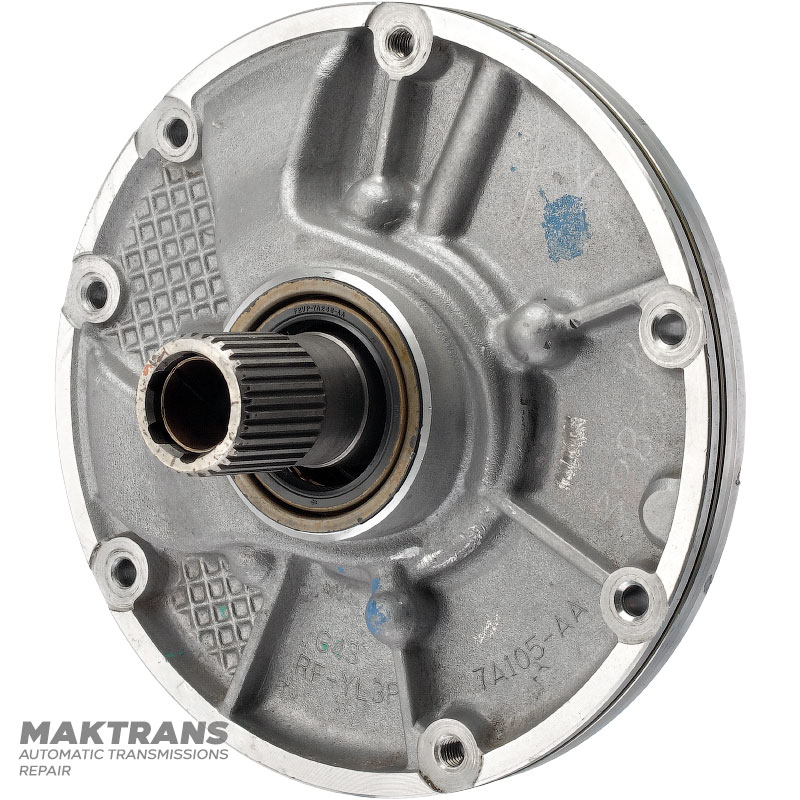

Oil pump:

• Overall height - 64 mm;
• Outer body diameter - 240.95 mm;
• Inner diameter of the sleeve - 50.80 mm;

Oil pump gears:

Pinion:

• Thickness - 15.50 mm;
• Inner diameter - 50.45 mm;
• Number of teeth - 12 pcs.;

Driven gear:

• Thickness - 15.50 mm;
• Outer diameter - 98 mm;
• Number of teeth - 13 pcs.;

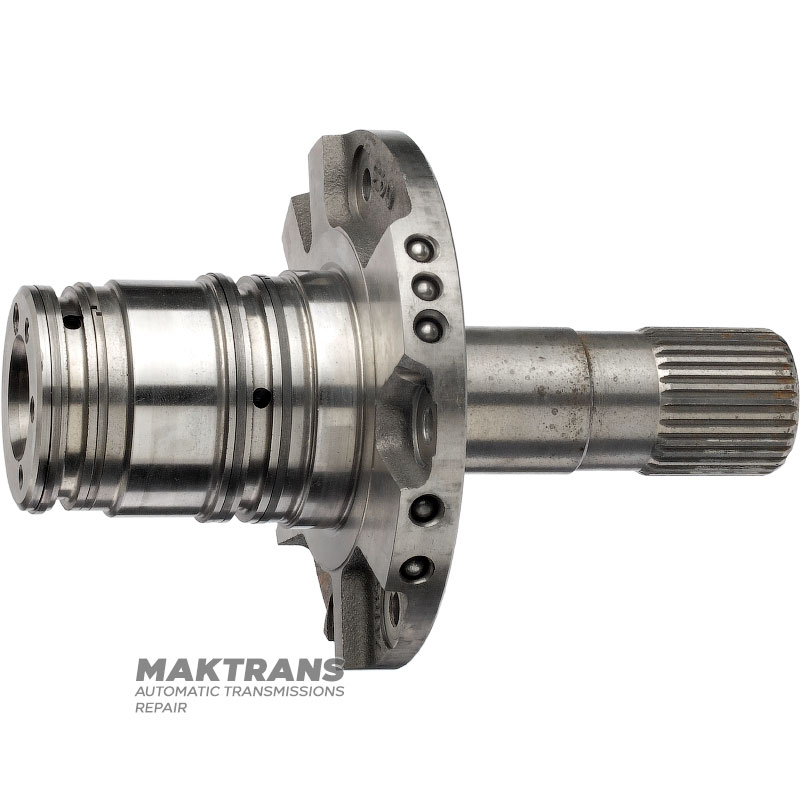

Oil pump hub:

• Overall height - 212 mm

Front side of the hub:

• Number of splines on the hub - 32 pcs.;
• The outer diameter of the splined part is 41.15 mm;
• The inner diameter of the sleeve is 25.75 mm;
• Outer diameter of the hub body - 145/75 mm;

Back to the hub:

• Height - 85 mm;

Outer diameter of the working part:

• 63.45 mm;
• 69.80 mm;

Number of cast iron sealing rings:

• 2 rings - outer Ø 60.10 mm;
• 2 rings - outer Ø 67.05 mm;

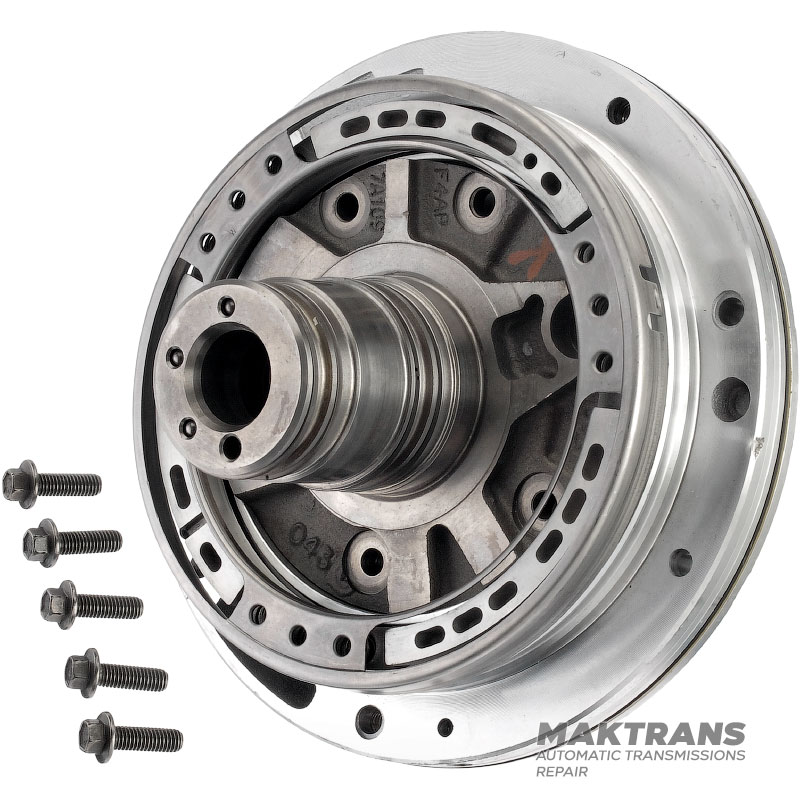

Intermediate Clutch Piston:

• Overall height - 23.50 mm;
• Outer diameter - 182.90 mm;
• Inner diameter - 155 mm;

Tags: F3LY-7F225-A, F3LY-7F224-A, F2AZ-7E005-A, F4AZ-7A103-A
