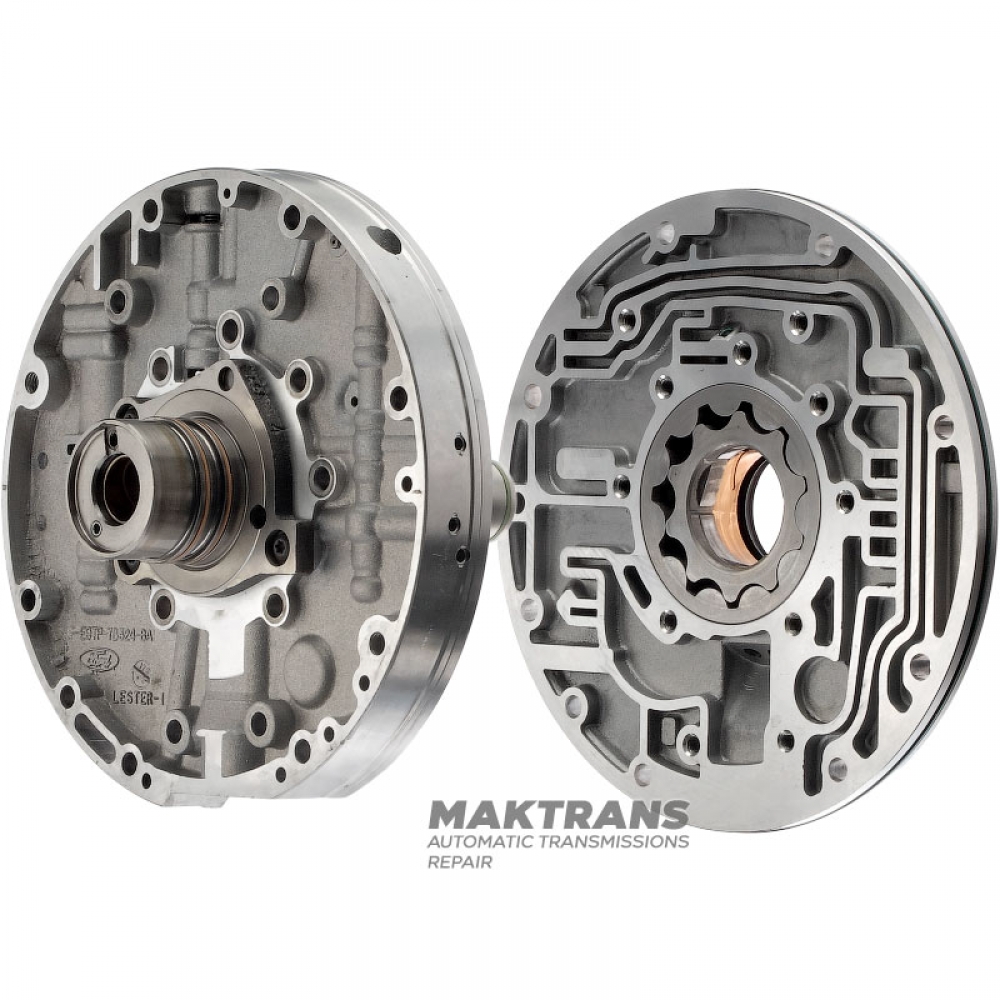

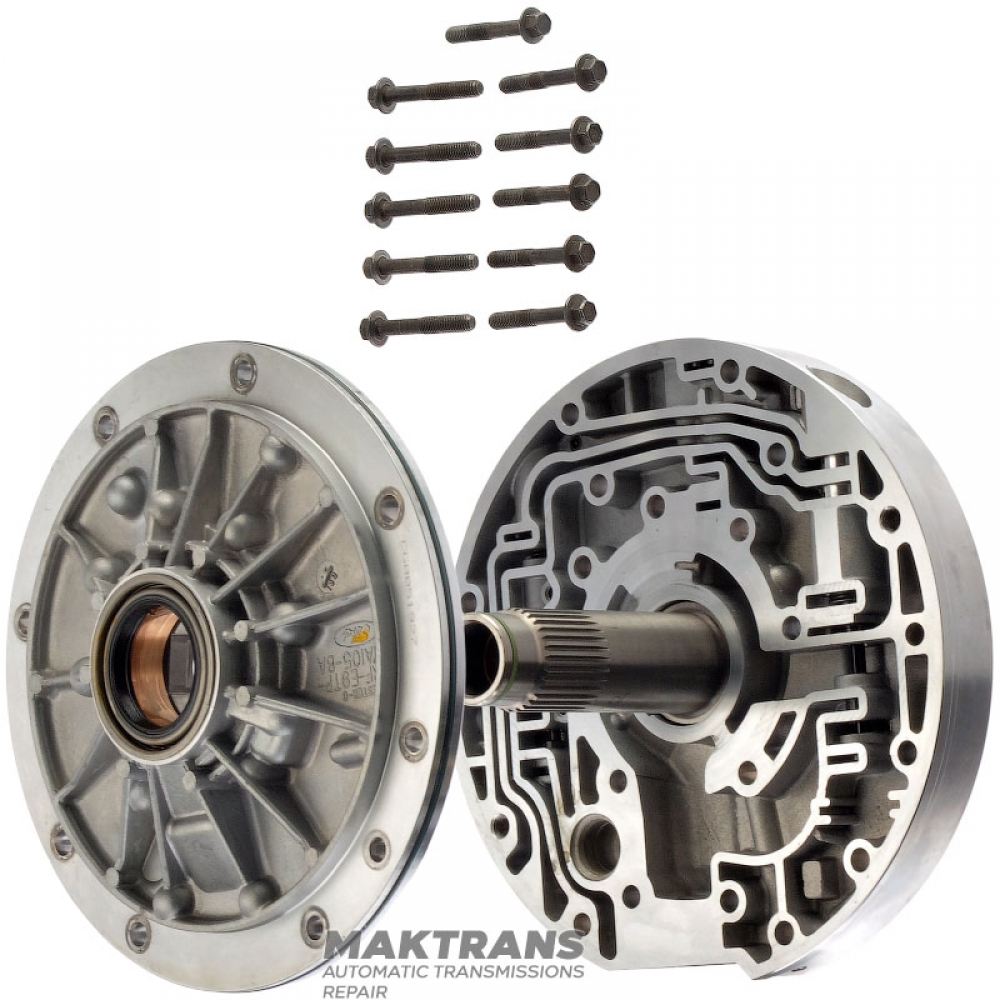

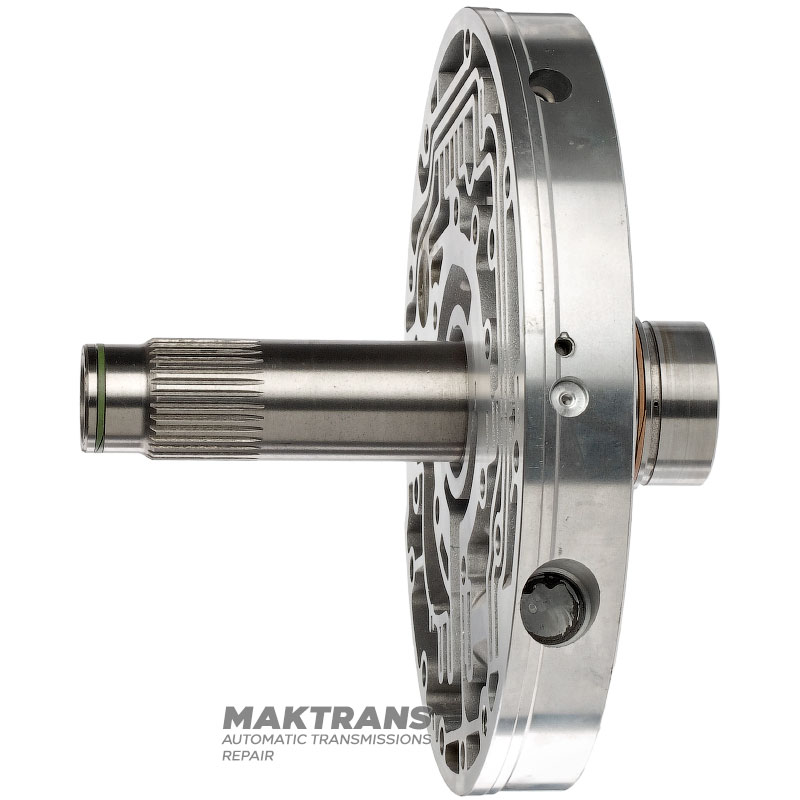

Oil pump FORD E4OD – E9TP-7B324-BA, F1TP-7B324-AA, E9TP-7A105-BA, FOTZ-7A103-B

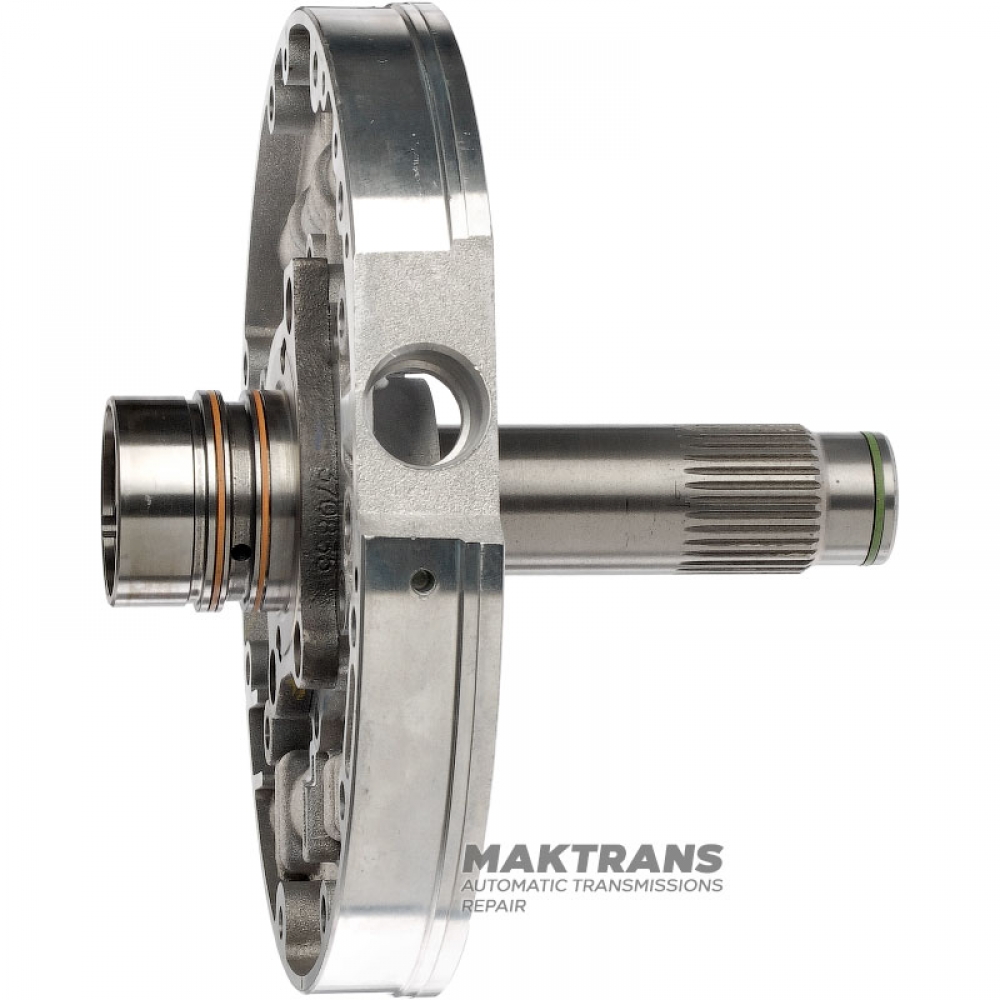

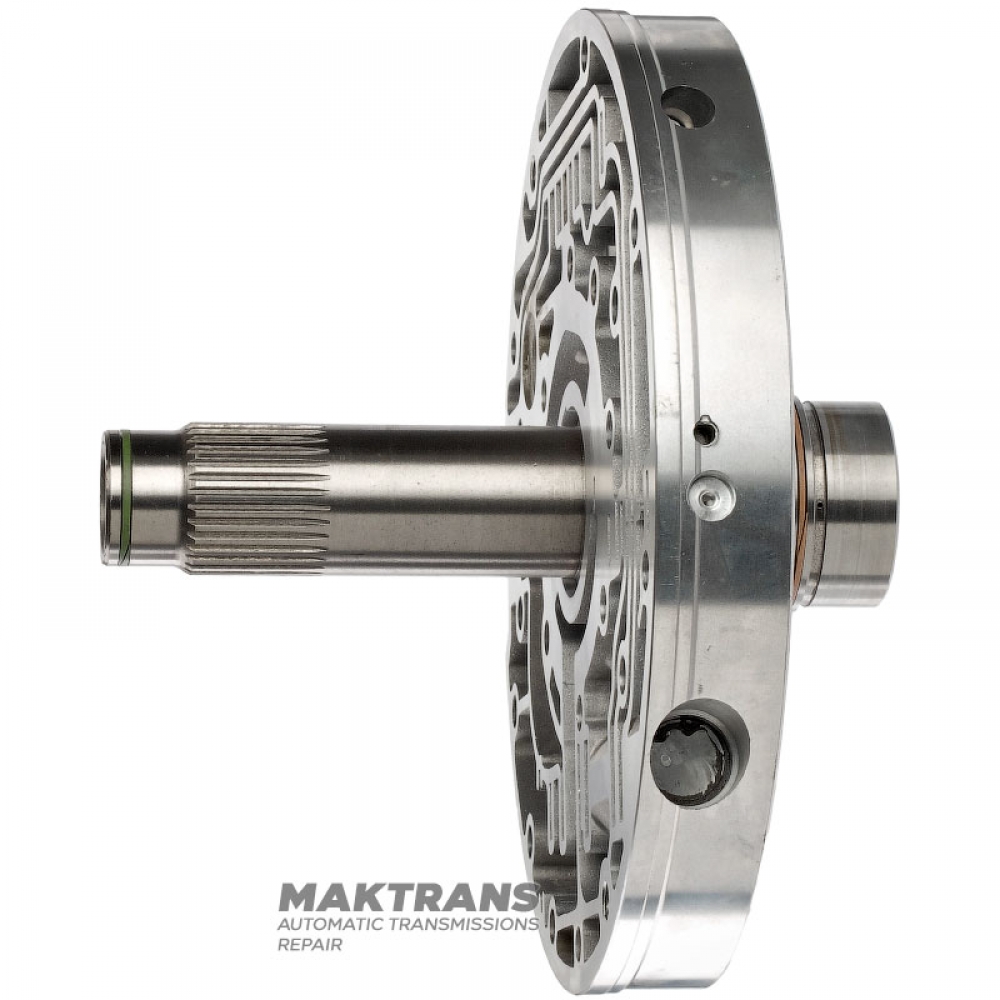

Oil pump hub:

• Overall height - 212 mm;
  The outer diameter of the aluminum body is 267.05 mm;

Front side:

• Stator height - 127 mm;
• Number of splines on the stator - 32 pcs.;
• The outer diameter of the splined part is 41.05 mm;

Back side:

• Height - 46.50 mm;
• Number of Teflon rings - 2 pcs.;
• Outer diameter over Teflon rings - 59.60 mm;
• The outer diameter of the working part of the stator is 56.55 mm;

Oil pump gear housing:

• Overall height - 47 mm;
• Outer body diameter - 267.20 mm;
• Inner diameter of the sleeve - 50.65 mm;

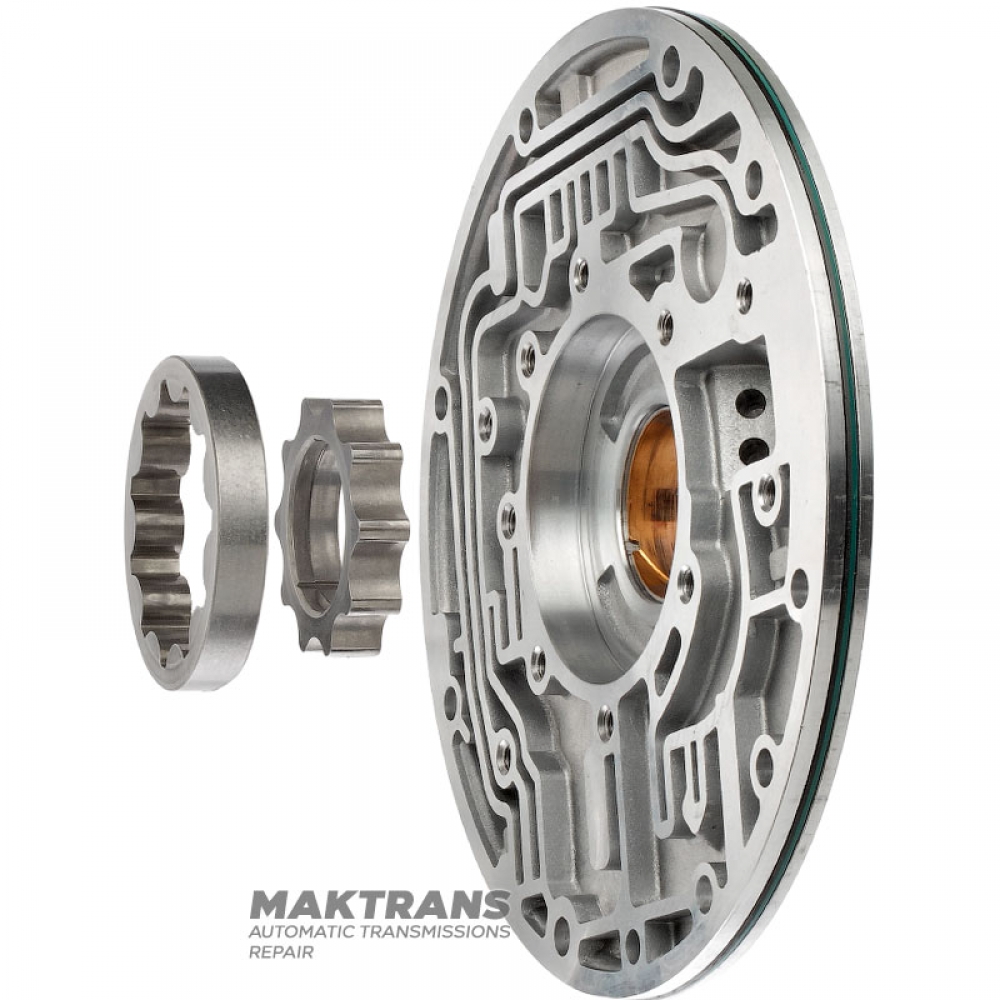

Oil pump gears:

Pinion:

• Thickness - 15.80 mm;
• Inner diameter - 50.50 mm;
• Number of teeth - 10 pcs.;

Driven gear:

• Thickness - 15.80 mm;
• Outer diameter - 100.30 mm;
• Number of teeth - 11 pcs.;
