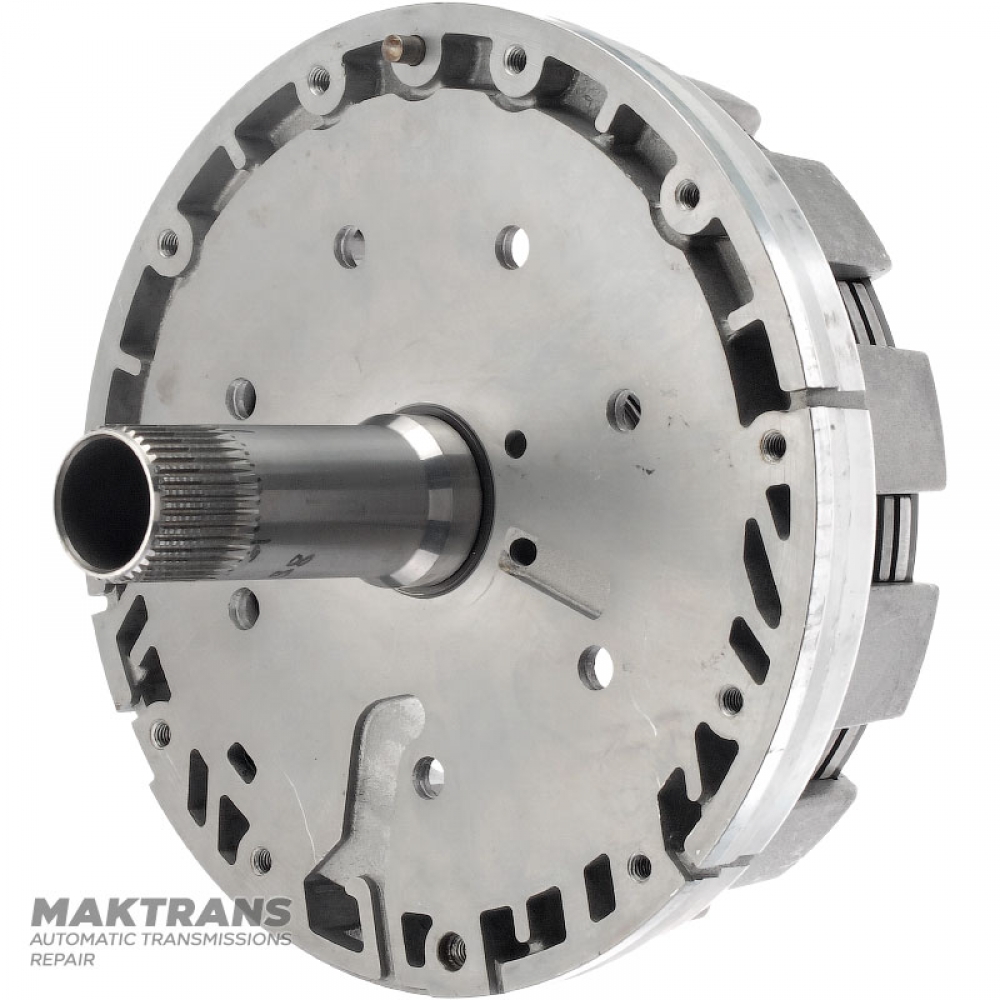

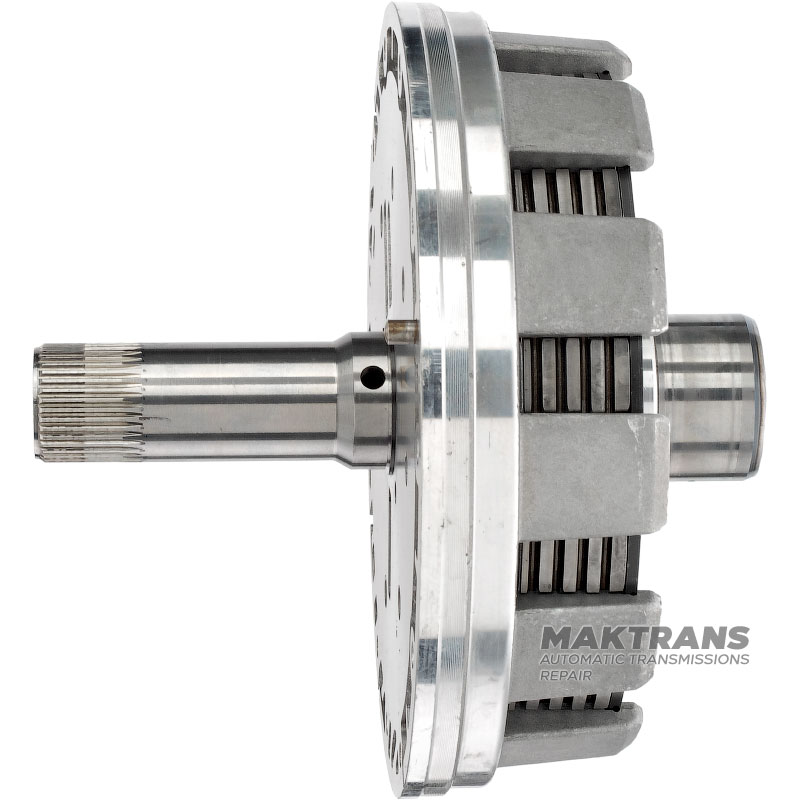

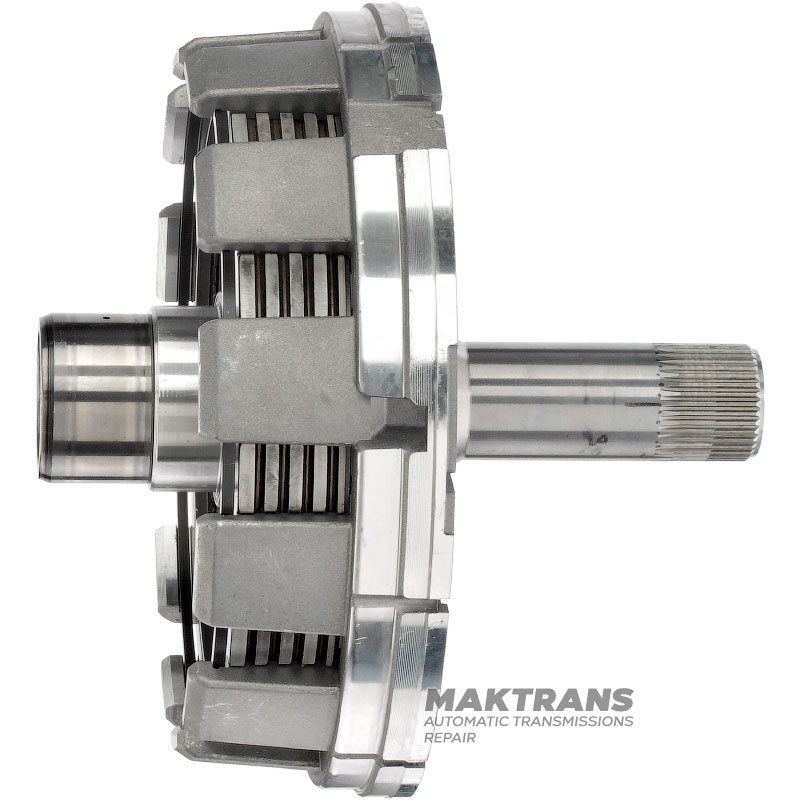

Oil pump hub B1 Clutch Mercedes-Benz 722.6 - 4 double-sided friction discs (total thickness of the set 25.30 mm)

B1 Clutch Hub/Drum:

• Total height - 193 mm;
• Outer diameter - 211.95 mm;

Front side:

• Stator height - 95 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the spline part is 31.75 mm;
• Inner diameter - 26.25 mm;

Rear Hub/Drum B1 Clutch:

• Stator height - 91 mm;
• Outer diameter of Teflon rings - 57.40 mm;
• The inner diameter of the sleeve is 31.60 mm;
• Height from piston to retaining ring - 28 mm;

B1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 25.30 mm;

​​​​Support disk:

• Thickness - 4 mm;
• Inner diameter - 153.90 mm;
• Number of teeth - 12 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 2.15 mm;
• Outer diameter - 172.90 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 4 pcs.;

Steel disc:

• Thickness - 3.45 mm;
• Inner diameter - 165 mm;
• Number of teeth - 34 pcs.;
• Number of discs included - 3 pcs.;

Steel disc:

• Thickness - 1.75 mm;
• Inner diameter - 165 mm;
• Number of teeth - 34 pcs.;
• Number of disks included - 1 piece;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 153.60 mm;
• Number of teeth - 3 pcs.;
• Number of disks included - 1 piece;
